The amplifier pure Class A to amplify circuit ,and tube 300B drives 805 which makes it more perfect.
A remote controlled volume system is added to the machine,as well as the ALPS Potentiometer from Japan,and the the cover of handle is made by aluminum alloy.
The updated products is a symbol that Meixing Factory is coming to a new level.MC-2A3 is produced meticulously,using the Fanuc CNC and lathe bought from Japan at the end of 2010.The entire case is made with a 6mm thick aluminum alloy and the machine feet consists of aluminum alloy as well as the shockproof rubber ring.The factory chooses the chief electronic script.
For example,the electronic tube adopts the international brand called JJ in Czech and the 300B from Tianjin.The tube 805 is made by Meixing Factory and the annealed silicon steel imported as well as anaerobic copper wire against high temperature from Janpan.
The other materials included in this product is as follows:
Jensen copper oil capacitors from Denmark,imported slivering signal line,imported connector,ALPS Potentiometer from Japan
Output Power: 40W
Output Impedance: 4Ω, 8Ω
Input voltage: 1000mv
Input Impedance: 100K
The degree of distortion: ≤1%
SNR: 91dB
Voltage: AC110V / 220V 60Hz / 50Hz
Input: 1 group
Output: 2 groups
Power consumption: 190W
Frequency response: 17Hz – 30KHz ± 1dB
vacuum tube: 805ASE(Meixing special) × 1, 300B(Full Music) × 1, ECC83 (12AX7) × 1, ECC82 (12AU7) × 1
PRICE: R 60 000
This new heavy hitter uses the unique KT120 Valves(new KT150 optional), manufactured by Tung Sol, in push pull, giving a hefty 110 watts per channel in ultra linear mode or switchable into triode mode to give a silky warm yet still powerful 50 watts per channel output.
Featuring 4 of the KT120 Valves, this amplifier really provides a load of power to move even the most insensitive modern speakers, while, when running in triode mode, it can drive more sensitive loudspeakers, offering the discerning listener the perfect listening choice.
The amplifier uses 2 classic 6SL7 Tung Sol double triodes to delicately amplify your sound source to the drivers, our classic “Onion 6SN7’s” to drive the KT120’s. We use of course, zero inductance audiophile German “Audyn Tri-Reference” coupling capacitors within the audio path, to maintain the highest quality.
We provide 3 line inputs for front panel source selection and a discreet switch for selecting Power Amp mode. Now with the option of an integrated 192k/24Bit DAC, this amplifier has more to offer than most other equivalents products in the market!

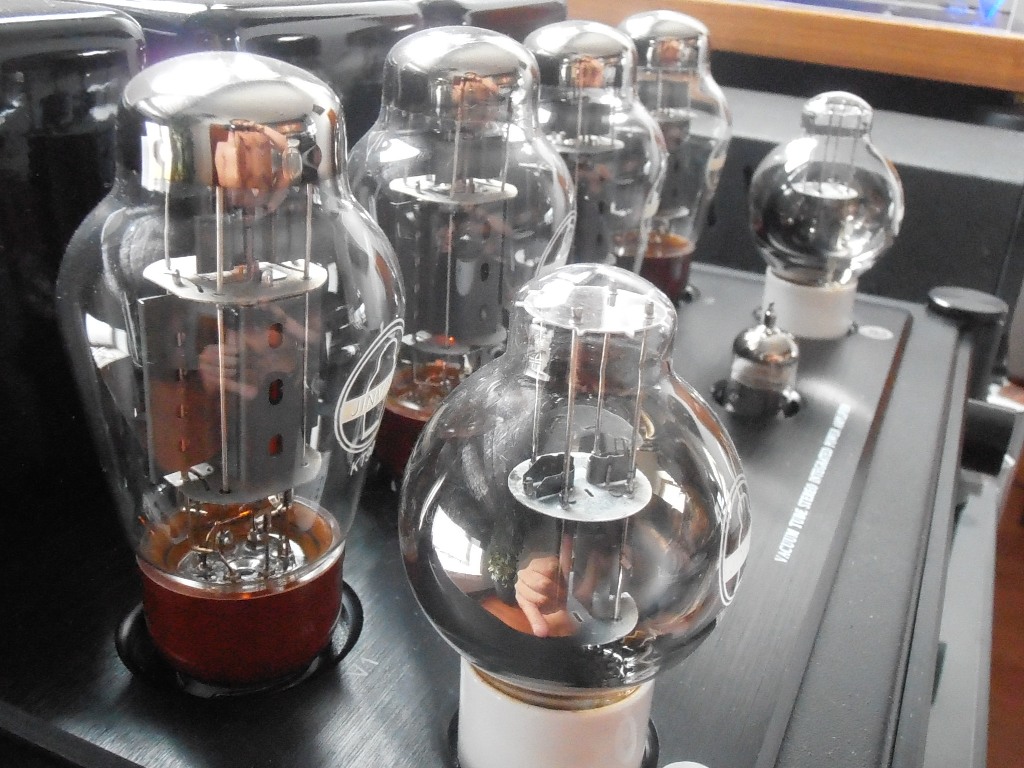

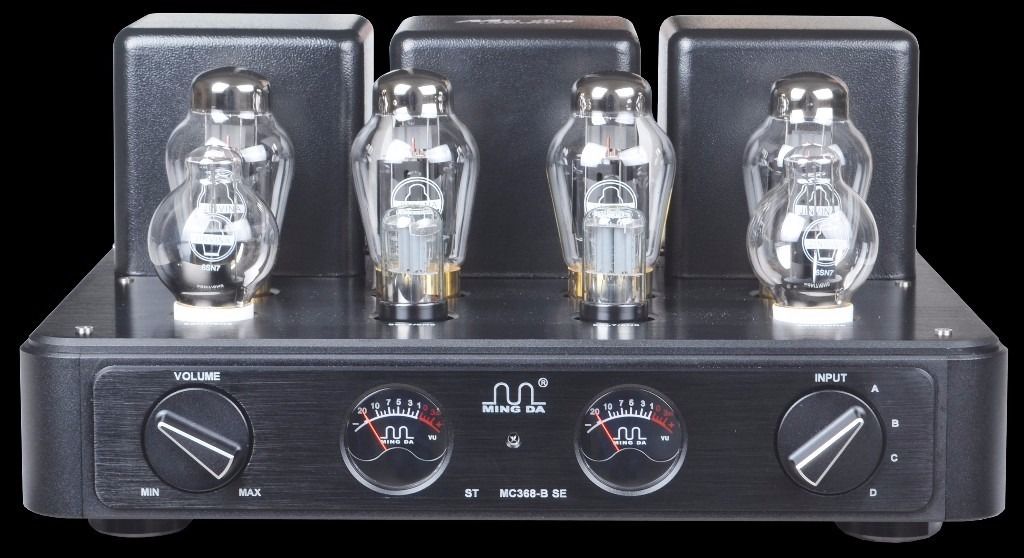

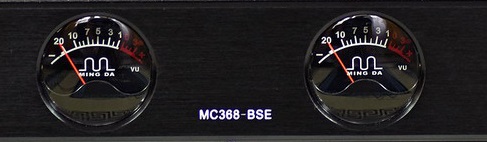

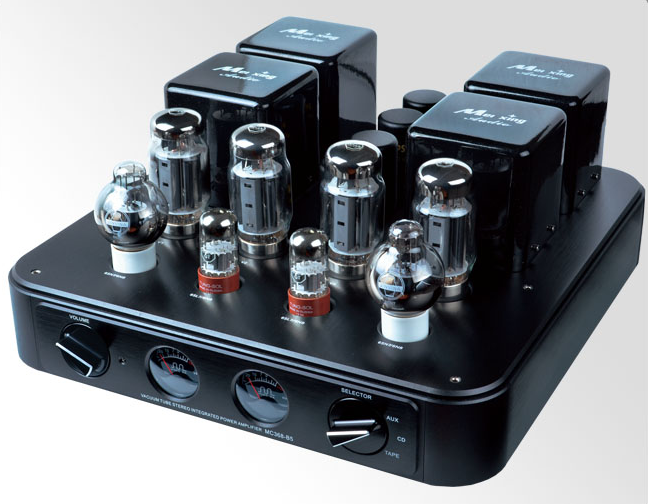

Frequency response 5Hz-150kHz +0dB – 1dB- MC368-BSE
This new amplifier uses 4 of our special Jinvina gold based KT90 valves, in push pull giving a hefty 70 watts per channel in ultra linear mode or switchable into triode mode to give a silky warm yet still powerful 40 watts per channel output.
This amplifier really provides a punchy output to move almost most insensitive modern speakers, whilst when running in triode mode it will drive more sensitive loudspeakers, offering the discerning listener alternative sound choices. The amplifier uses 2 special Jinvina 6SN7(Onion shape) as drivers and 2 Tungsol 6SL7 triodes to amplify your sound source to the drivers.
Input Voltage: 200mv
Output Impedance: 4Ω,8Ω
Distortion Factor: ≤1%
Input Impedance: 100K
Power Dissipation: 250W
Signal-to-Noises:89dB
Outputs: 2 Groups
Inputs: 4 Groups
Output Power:
Ultralinear 75W×2
Triode: 40W×2Frequency: 15Hz-55KHz ±1dB
Vacuum Tubes: KT90×4, 6SN7×2, 12AX7×2
PRICE: R 38 000

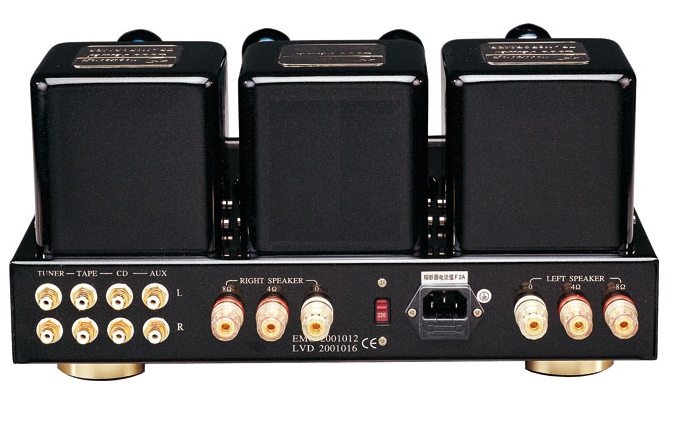

- MC34-A
MC34-A 38W integrated stereo amplifier.
This amplifier produces 38W RMS per channel using the famous EL34, introduced by Mullard in 1952, and used by manufacturers of quality amplifiers the world over ever since.
The specially made blue version adds to the aesthetic qualities of this stylish valve amplifier.
Specifications:Power output: 38W RMS per channel
Distortion factor: <0.8% at full power Frequency response: 20Hz - 50kHz ± 1dB Signal to noise ratio: >90dB
Dimensions: L 43 x W 40 x H 23 (Cms)
PRICE: R 21 000

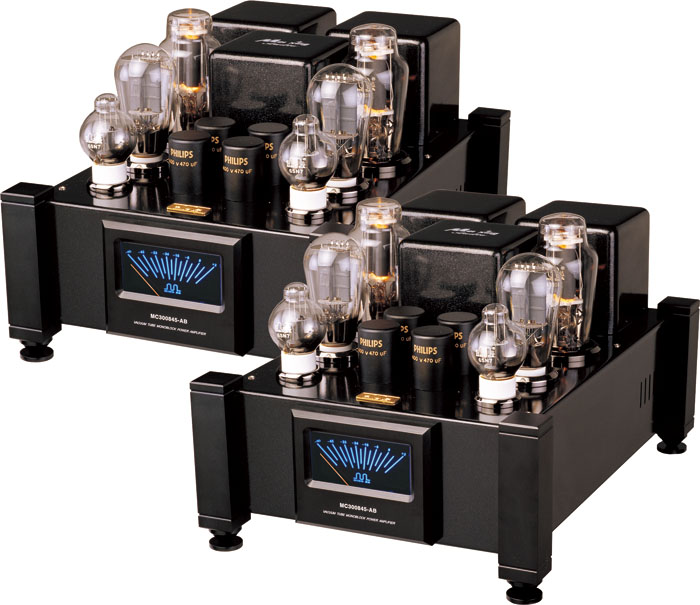

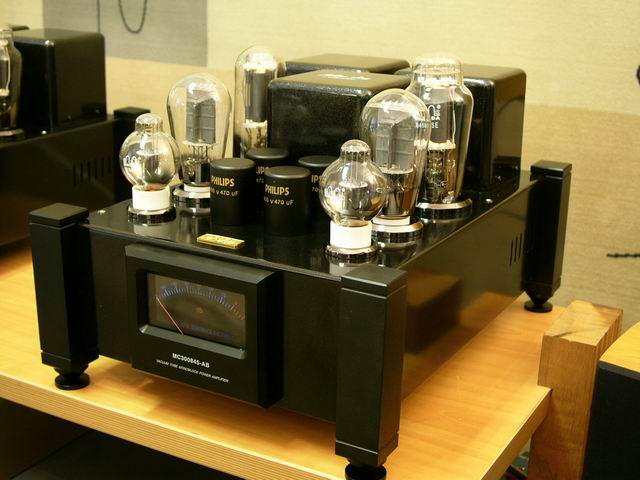

- MC300845
An amazing statement built arounf the 845 power valve. 100W of immediate and fast power, with no sluggishness or any hint of strain.
Retaining the beauty the 300B’s bring, just amplified for more demanding speakers.
Output Power: 100W
Output Impedance: 4Ω、6Ω
Input Voltage: 1000mv
Intput Impedance: 100K
Distortion Factor: ≤0.8%
Signal-to-Noise: 88dB
Power Dissipation: 320W
Frequency: 10Hz – 65KHz±1dB
Power supply voltage: 110/220V 60Hz/50Hz
Vacuum Tubes:
845BSE×2
300B×2
6SN7×2
Net Dimensions : L58 x W38 x H34 cm
Net weight : 35kgPRICE: R 98 000

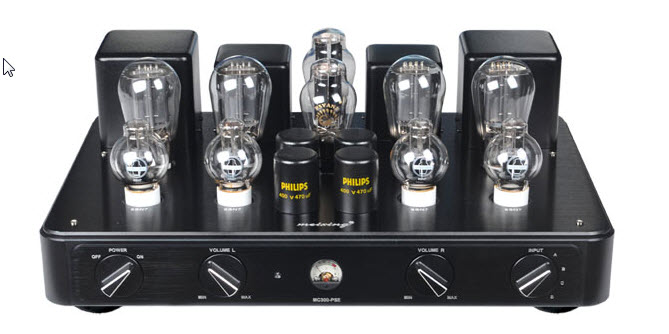

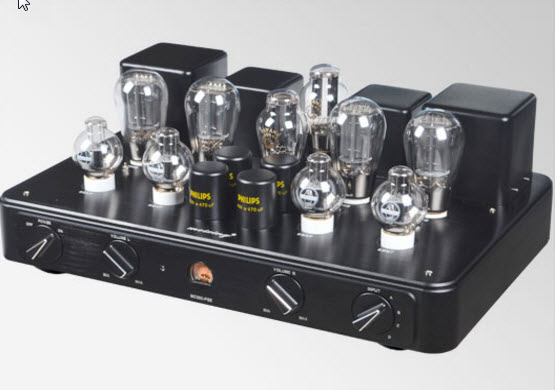

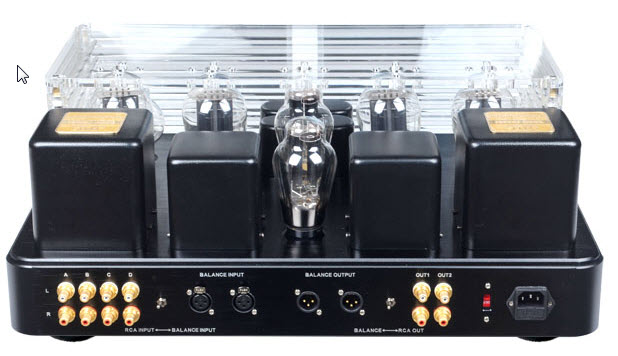

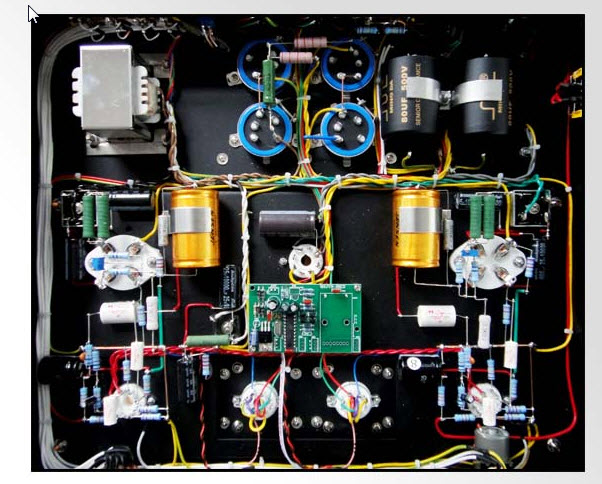

- MC300 PSE

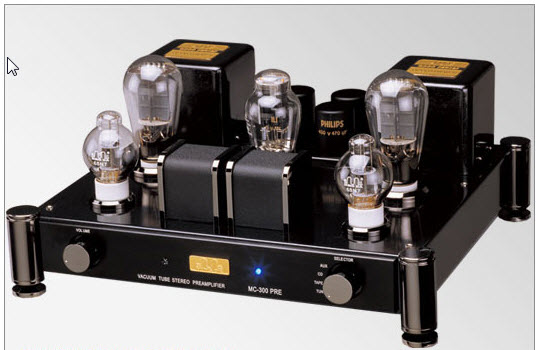

MC300-PRE with the romantic and smooth sound expected from a 300B design, combined with extensiveness in its high and low frequency is most probably the best in his design and price class on the current market.
There is always room for improvement for preamp with 300B tubes, a challenge which has been mastered in this pre-amp through its workmanship. This preamp exploits all the merits of 300B tubes to the fullest.
Voltage Gain: 19dB
Output Impedance: 600Ω
Input Sensitivity: 1000mv
Balanced input Impedance: 2.4K
input Impedance: 100K
Distortion Factor: ≤0.3%
Signal-to-Noises: 92dB
Power Dissipation: 75W
Inputs: 5 Groups
Outputs: 2 Groups
Frequency: 5Hz – 150KHz
Vacuum Tubes: 300B x2 、274B x1、6sn7 x2
Dimension: L55 x W50 x H39(cm)
Gross weight: 27KGPRICE: R 72 000
This amplifier really provides a punchy output to move almost most insensitive modern speakers, whilst when running in triode mode it will drive more sensitive loudspeakers, offering the discerning listener alternative sound choices. The amplifier uses 2 special Jinvina 6SN7(Onion shape) as drivers and 2 Tungsol 6SL7 triodes to amplify your sound source to the drivers.
Input Voltage: 200mv
The specially made blue version adds to the aesthetic qualities of this stylish valve amplifier.
Specifications:
Output Power: 100W
There is always room for improvement for preamp with 300B tubes, a challenge which has been mastered in this pre-amp through its workmanship. This preamp exploits all the merits of 300B tubes to the fullest.
Voltage Gain: 19dB- MC368-B902

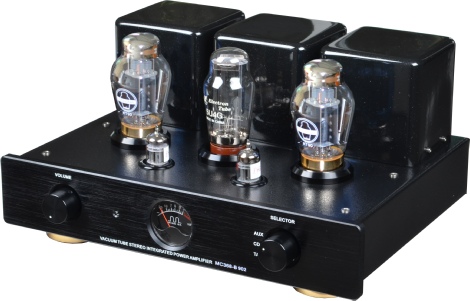

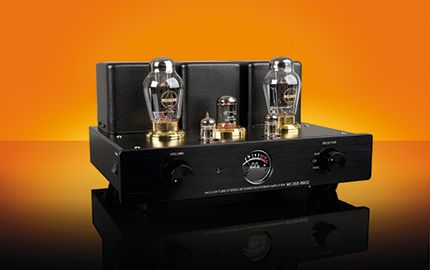

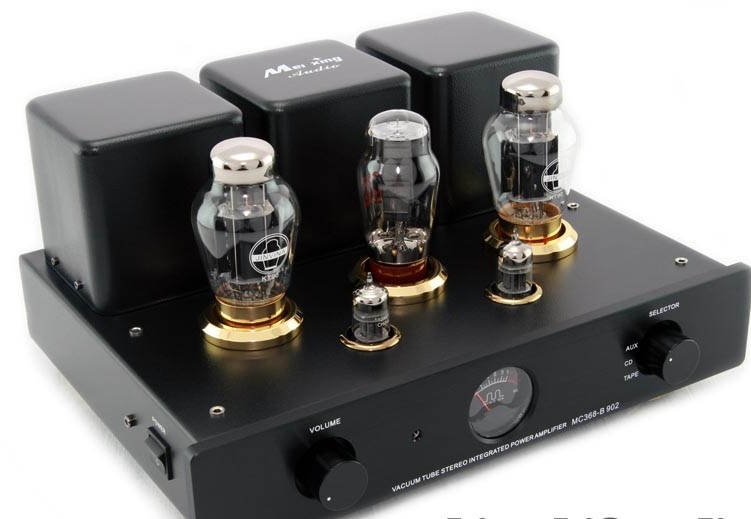

MC368-B902 by Ming Da. The MC368-B902 is a stereo amplifier designed for those who like the sound of a Single Ended amplifier, but built as an integrated amplifier for simplicity and convenience of use.
The MC368-B902 employs a pair of the powerful, dynamic and silky sounding KT90’s running in Single Ended mode, to help ensure uncoloured reproduction and true sound.
Driven by 2 x 12AU7 plus the smooth 274B choke filtered rectifier valve, this amplifier is extremely low in hum and noise. Hand builtpoint to pointwiring and employing our in house hand wound output transformers, this amplifier gives a deep, saturation free
output of a powerful 18 watts per channel, with a total distortion of only 0.8% and a fabulous frequency response of 18Hz-50kHz ±1dB. A switchable headphone output giving 550mW into 16-32Ω also features, and we have included a remote volume control for ease of use. Add style and quality to your listening pleasure with this high specification single ended stereo amplifier.
Specifications:
Output Power: 18W × 2
Output Impedance: 4Ω, 8Ω
Input voltage: 330mv
Input Impedance: 100K
The degree of distortion: ≤0.8%
SNR: 92dB
Power consumption: 160W
Input options: 3 groups
Output options: 2 groups
Frequency response: 18Hz ~ 50KHz ± 1dB
Vacuum tubes: KT90 (special tube) x2,
5U4G(274B) x1 (rectifier), 12AU7 x2
Amp Dimensions: L33 × W31 × H23 (cm)
Carton size: L51 × W45 × H36 (cm)
Net weight: 16KgPRICE: R 19 500

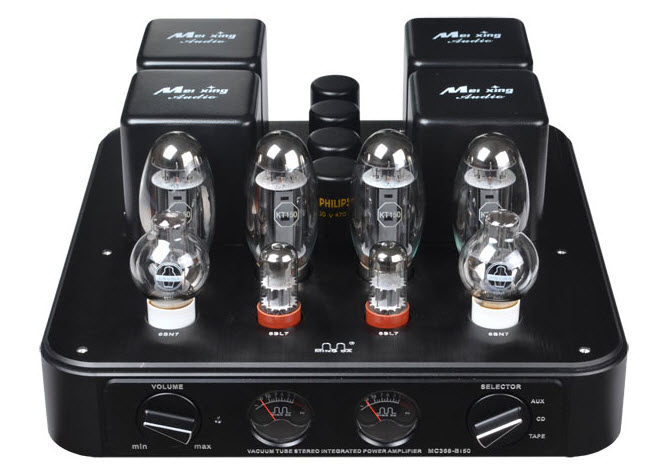

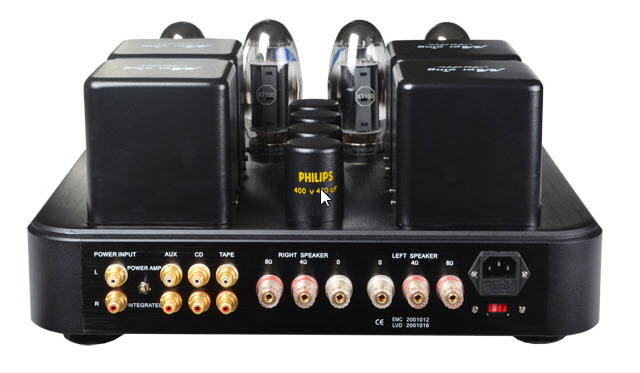

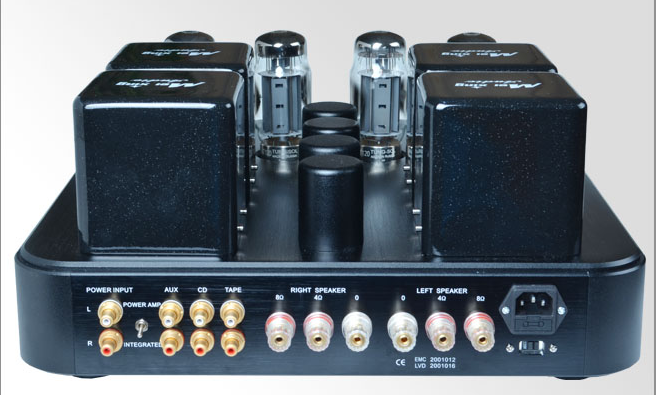

- MC368-B150
The more powerful version of the MC368-BSE uses 4 KT150 valves, in push pull giving a huge 150 watts per channel in ultra linear mode or switchable into triode mode to give a silky warm yet still powerful 70 watts per channel output.
Output Power:
Ultralinear 150W x 2
Triode 70W x 2
Output Impedance: 4Ω、8Ω
Distortion Factor: ≤1%
Signal-to-Noises: 99dB +0dB -2dB
Outputs: 2 Groups
Inputs: 3 Groups(Integrated) 1 Groups(Power Amplifier)
Frequency: 18Hz – 60KHz
Sensitivity: 500mv(Integrated) 1000mv(Power Amplifier)
Vacuum Tubes: KT150 * 4, 6SN7 * 2, 6SL7 * 2
Power Supply: 110V-220V 60/50Hz
Volume: 440 * 430 * 200 mm
Weight: 30 KgPRICE: R 55 000

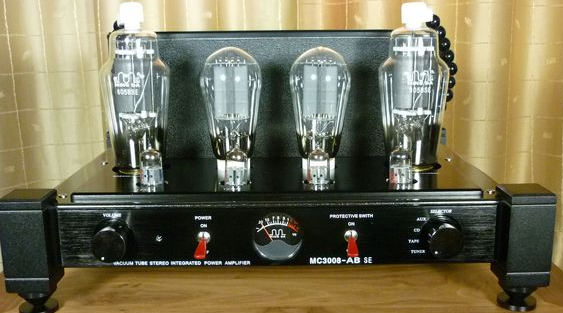

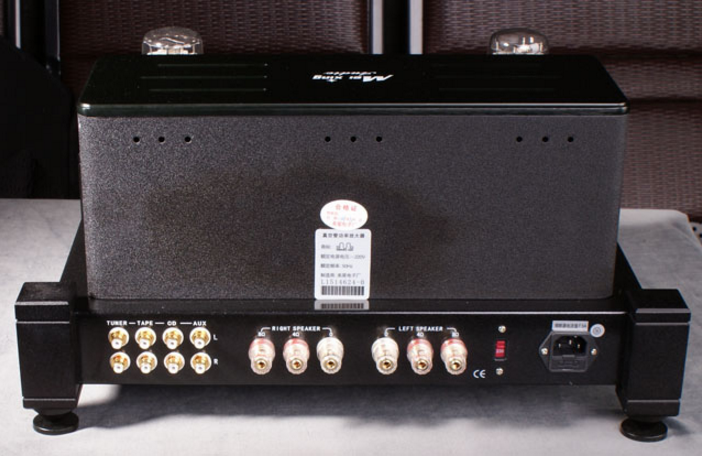

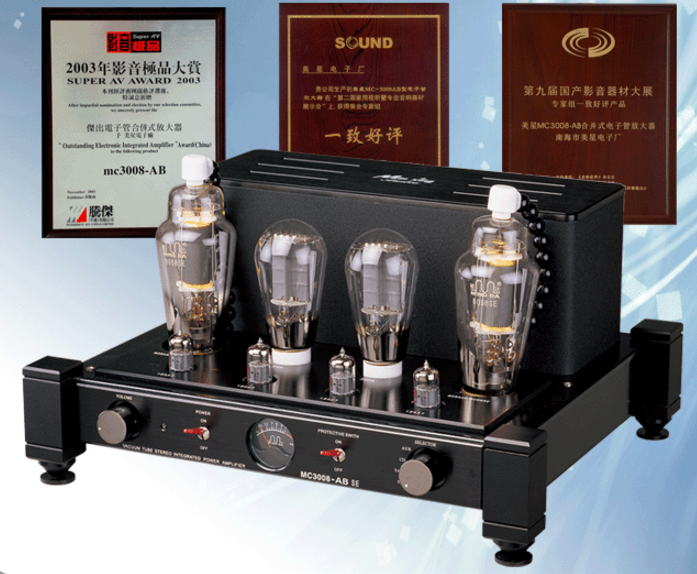

- MC3008-AB

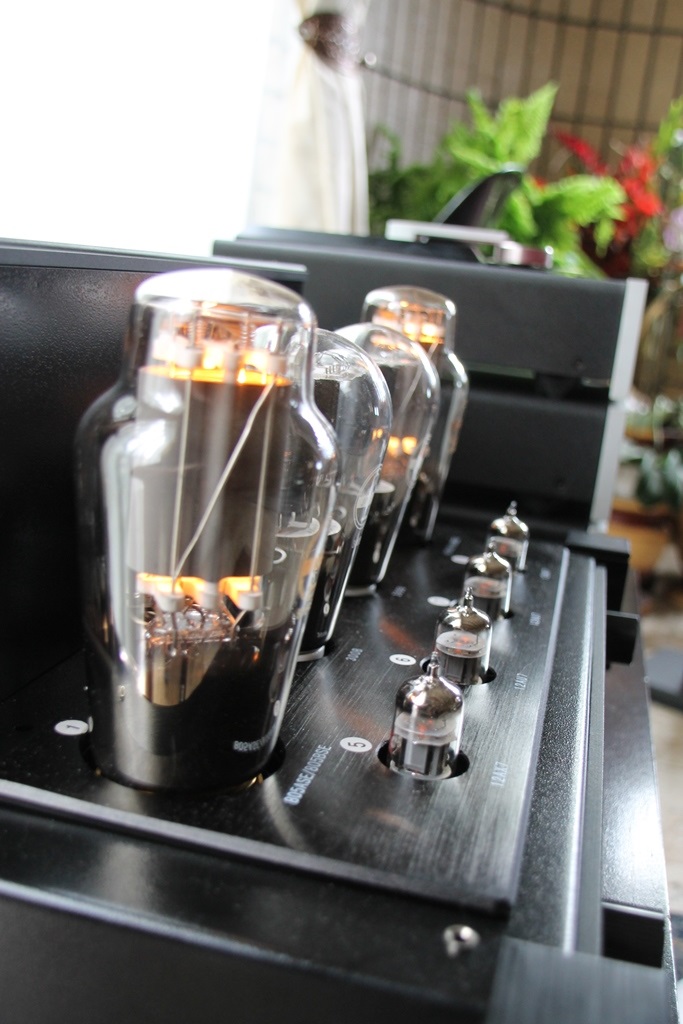

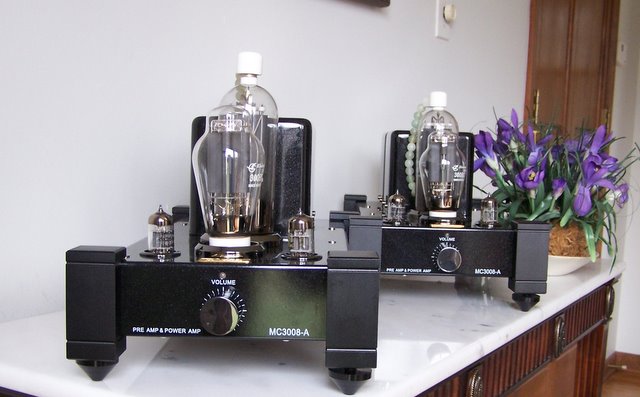

One of the ultimate and musically sweet integrated amplifiers available. Designed around the magnificent 1930’s 805ASE Triode and producing an output power of 40 watts in single ended mode. This is a really magnificent output stage, employing our heavy and high current capable “E I” configured output transformer, to ensure zero saturation, even at the lowest frequencies. We hand wind all our own output transformers in house using our researched and refined designs, as well as using the best available Japanese steel laminations, to give a superior balanced frequency response. The 805 power valve is driven by the directly coupled classic 6P3/6L6 beam tetrode running in class A and turn driven by 6N8, 6N9 triodes, coupled by high quality audiophile capacitors.
Specifications:Output power: 40W×2 (Class A)
Output Impedance: 4Ω, 8Ω
Input Voltage: 350mv
Output Impedance: 100K
Distortion Factor: ≤1%
Signal-to-Noises: 91dB
Power Dissipation: 300W
Inputs: 2 Groups
Outputs: 2 Groups
Frequency: 18Hz – 30KHz±1dBVacuum Tubes: 805BSE×2 300B ×2 12AX7 x2 12AU7 x2
PRICE: R 42 000

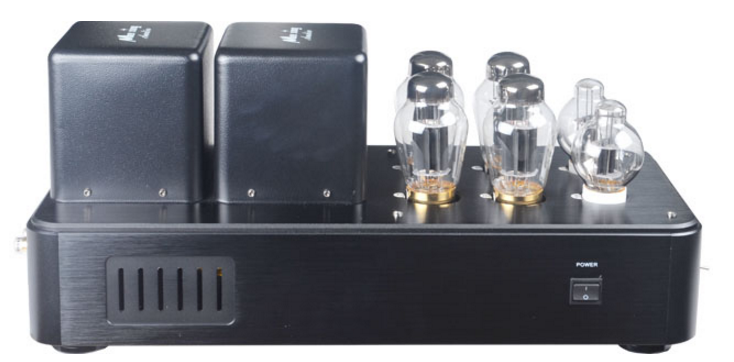

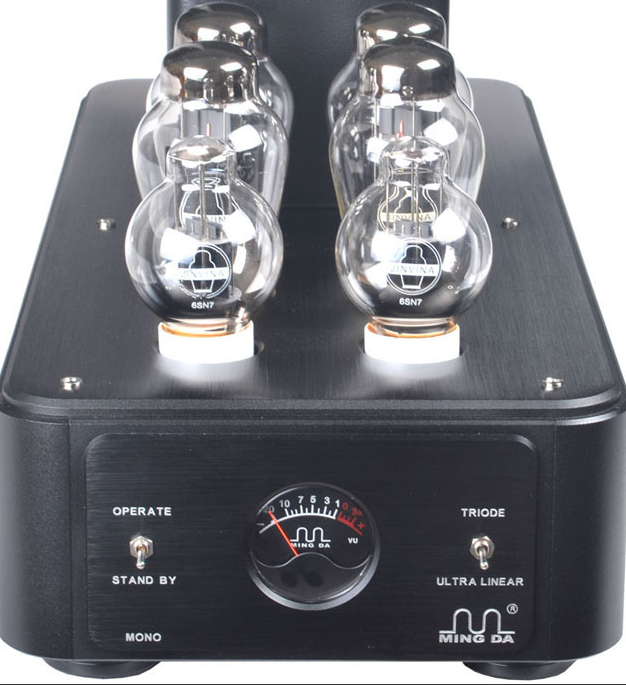

- MC90-AB

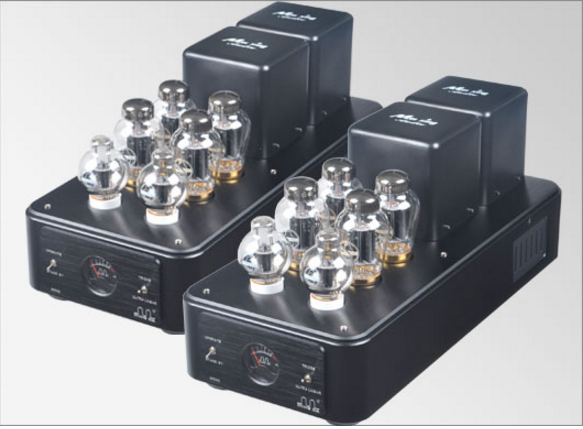

The MC90-AB is the stunning new 150 watt Ultra linear and 95 watt Triode mode power amplifier from Ming Da.
This very powerful Mono-block power amplifier is based around of the new Tungsol KT150 output valve running in Push Pull mode, along with the option to switch into Triode mode for a warmer and more traditional sound.
These pit put valves have been acclaimed for their superior sonics. This powerful output stage is coupled by the best Audyn Tri Reference audiophile capacitors from a pair of the classic 6SN7’s providing both drive and input amplification.
This output stage employs our heavy and high current capable “E I” configured output transformer, in fact we hand wind all our own output transformers “in house” using our researched and refined designs, as well as using the best available Japanese steel laminations and 99% oxygen free Copper wire, to give a superior balanced frequency response for the best possible power efficiency and sonic quality.
The MD90 also offers a standby switch to enable a steady warm up period, before switching on the HT for use after the warm up period. When used regularly this can help preserve valve longevity.
We now also offer the option of Electronic Auto-bias, to offer the increased reassurance that your output valves are working in their optimal setting, with a minimum of distortion and maximum power.
Specifications:Frequency response 20Hz–40kHz ±1dB.
Output power: 150Watts Ultra linear or 90Watts in Triode mode
Output impedance: 4Ω, 8Ω
Input sensitivity: 1200mv(for max output power)
Input impedance: 100K
Distortion: ≤1% at full power
Signal to noise ratio: 98dB
Power dissipation: 300W
Inputs: 1 Gold plated RCA Phono
Outputs: Gold plated 4mm postsPRICE: R 29 000
MC368-B902 by Ming Da. The MC368-B902 is a stereo amplifier designed for those who like the sound of a Single Ended amplifier, but built as an integrated amplifier for simplicity and convenience of use.
The MC368-B902 employs a pair of the powerful, dynamic and silky sounding KT90’s running in Single Ended mode, to help ensure uncoloured reproduction and true sound.
Driven by 2 x 12AU7 plus the smooth 274B choke filtered rectifier valve, this amplifier is extremely low in hum and noise. Hand builtpoint to pointwiring and employing our in house hand wound output transformers, this amplifier gives a deep, saturation free
Specifications:
Output Power:
Specifications:
This very powerful Mono-block power amplifier is based around of the new Tungsol KT150 output valve running in Push Pull mode, along with the option to switch into Triode mode for a warmer and more traditional sound.
These pit put valves have been acclaimed for their superior sonics. This powerful output stage is coupled by the best Audyn Tri Reference audiophile capacitors from a pair of the classic 6SN7’s providing both drive and input amplification.
This output stage employs our heavy and high current capable “E I” configured output transformer, in fact we hand wind all our own output transformers “in house” using our researched and refined designs, as well as using the best available Japanese steel laminations and 99% oxygen free Copper wire, to give a superior balanced frequency response for the best possible power efficiency and sonic quality.

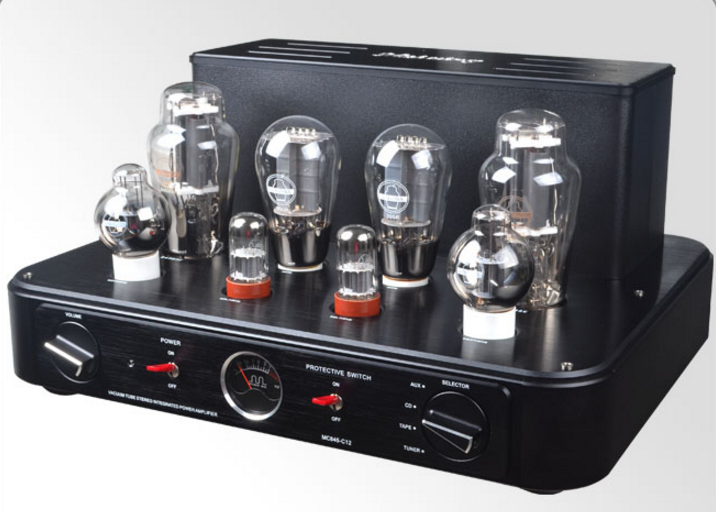

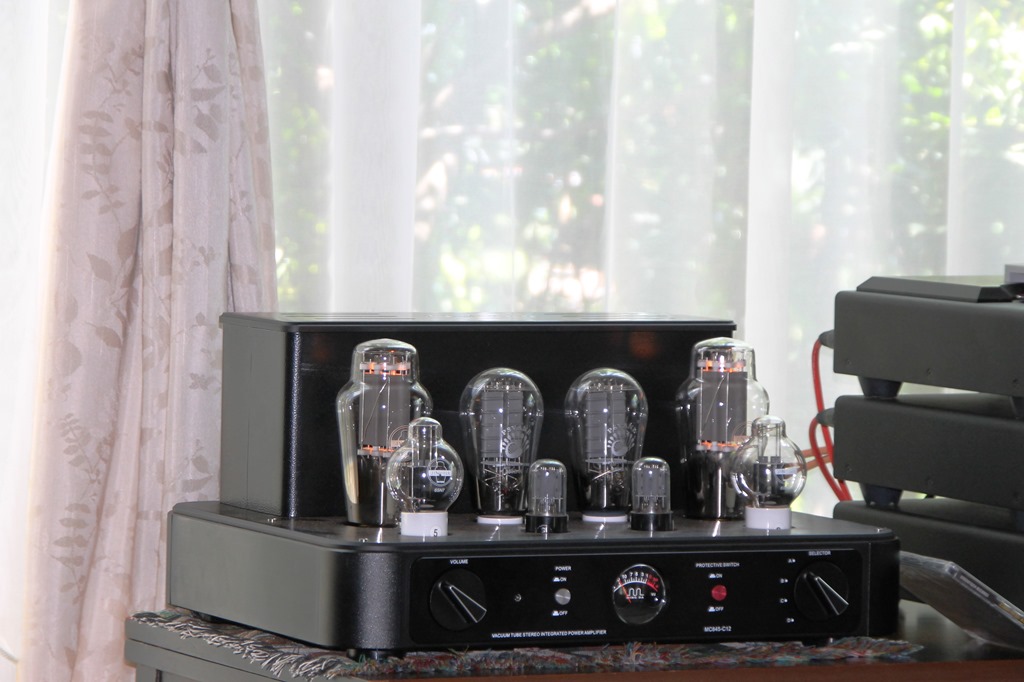

Specifications:- MC845-C12
Maximum output power:
20W × 2 (Group A)
Output impedance: 4Ω, 8Ω
Input voltage: 300mv
Input Impedance: 100K
Distortion: ≤ 1%
Frequency response: 18Hz – 30KHz ± 1dB
Signal-to-noise ratio: 88dB
Input selection: 4 Groups
Output options: 2 Groups
Power consumption: 350W
Vacuum tubes : 845 BSE(made by MingDal) × 2
300B(Full music) × 2
6SN7 × 2
6SL7 × 2Power supply voltage: 110/220V 60Hz/50Hz
(100V,110V，120V, 127V, 230V, 240V version will
take 3-14 work days to order),
220V version is in stock
Net weight: 35Kg
Net Volume: L48 × W38 × H28 (cm)
Carton size: L60 x W50 x H40 (cm)
Gross weight: 38Kg(amp) + 4KG(tubes) = 42 kgPRICE: R 42000

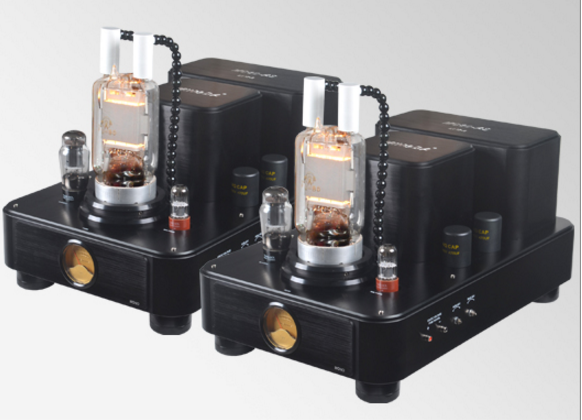

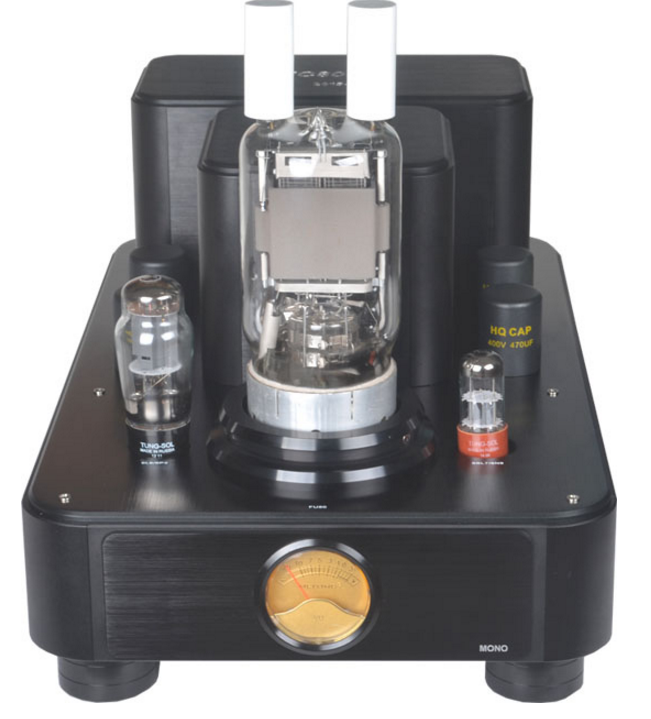

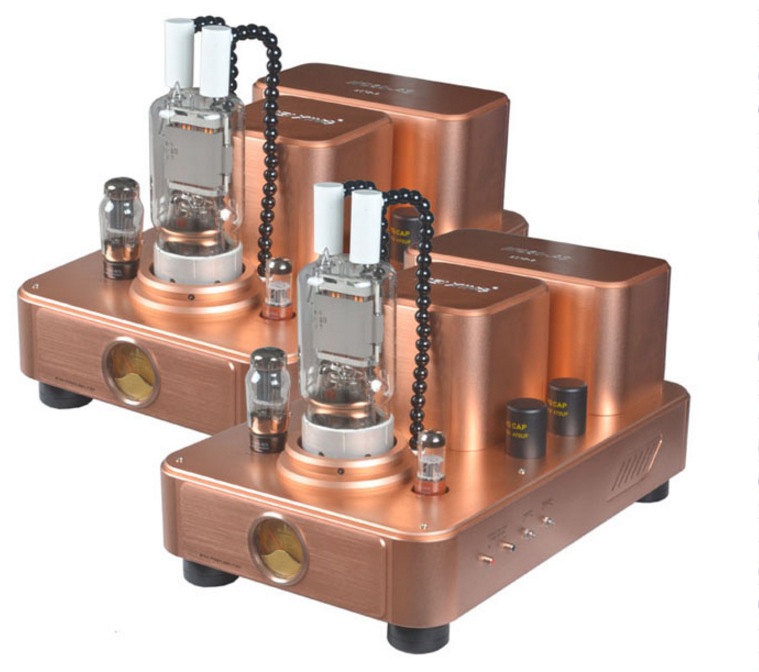

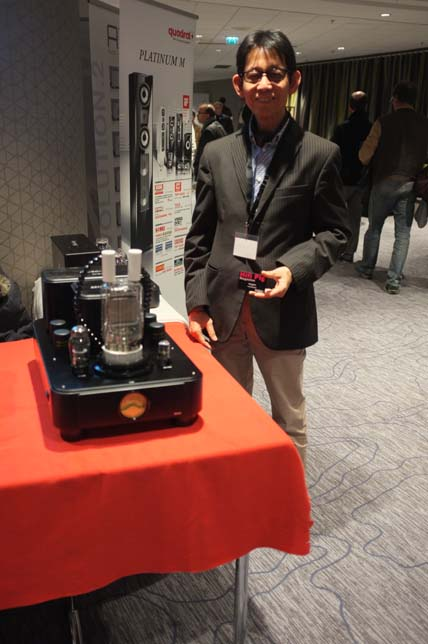

- MC80-AS

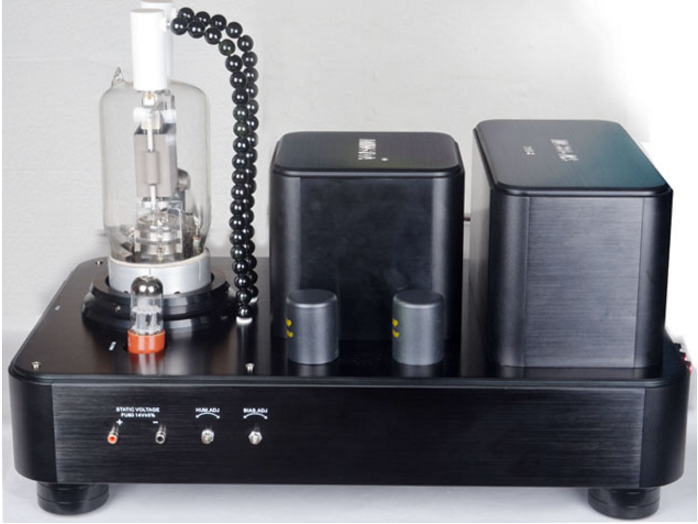

Power: 80W pure Class A
Output Impedance: 4 & 8 Ohm
Input Impedance: 220kOhm
S/N Ration : 93dB
Input: 1 Balanced, 1 Single ended
Output: 2 Pairs
Power Consumption 500W
Frequency Responce: 17Hz to 25kHz
Valves: 1 x FU-80, 1 x 6L6, 1x 6SL7
Weight 45kg per monoblockPRICE: R 188 000

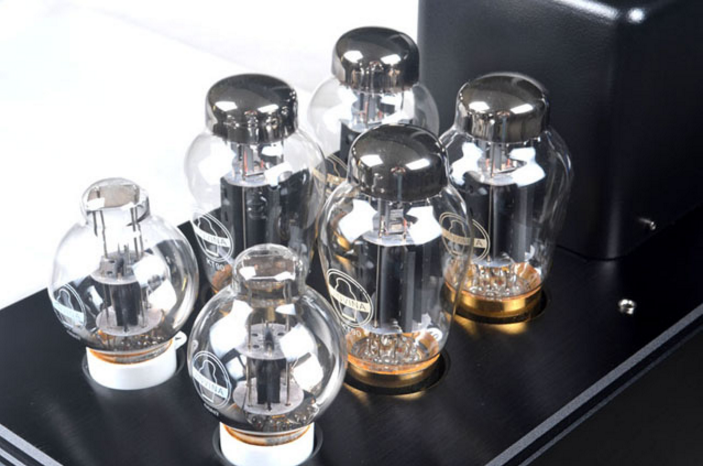

- MC90-AB
The amplifier uses 4 x KT90’s in fully symmetrical push-pull circuit configuration for a very healthy 150W into 8 Ohm.
Triode amplifier and ultra-linear mode amplification can be selected.
Specifications:
Output Power: 150W * 2 （ultra-linear）， 95W * 2 （triode）
Output Impedance: 4Ω, 8Ω
Input sensitivity: 1200mv
Distortion: ≤1%
SNR: 98dB
Input: 1 group
Output: 2 groups
Power consumption: 300W
Frequency response: 20Hz ~ 80KHz ± 1dB
Vacuum tubes: KT90 (US star special) x4, 6SN7 x2 (If you wish, you can choose KT88 (Meixing special) * 4)
Power Supply Voltage: AC 100V – 240V / 50Hz-60Hz (100V, 110V, 120V, 230V, 240V version will take 3-14 work days to order), 220V version is in stock.
Net Dimensions: L50 x W23 x H25 cm * 2 pcs
Packing dimensions of amp: L65 x W36 x H45 (cm) x2
Tube box Carton size: L48 x W33 x H32 (cm) * 1
Main chassis GW: 24kg x2
Tube Box GW: 6kg
Total shipping weight: 24kg * 2 + 6kg = 54 kgPRICE: R 52 000

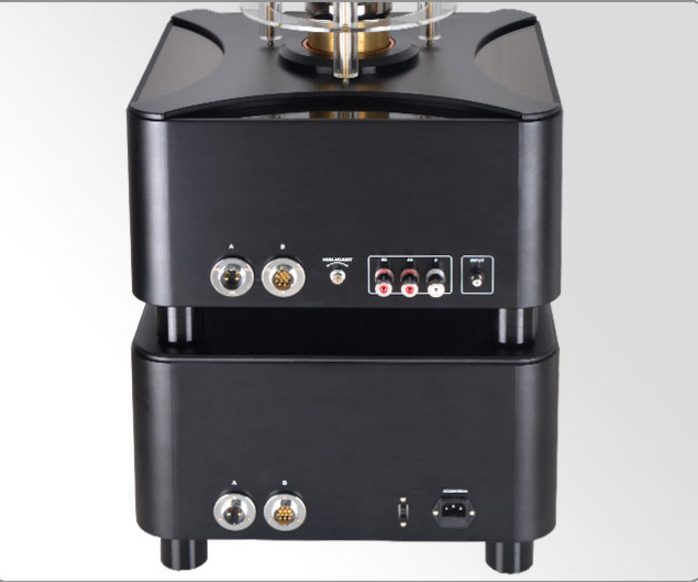

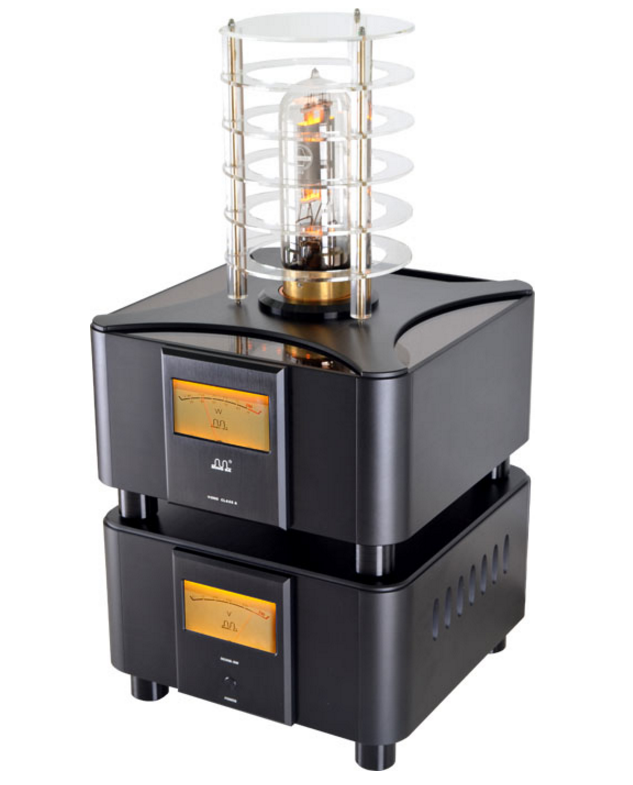

- MC998-DW

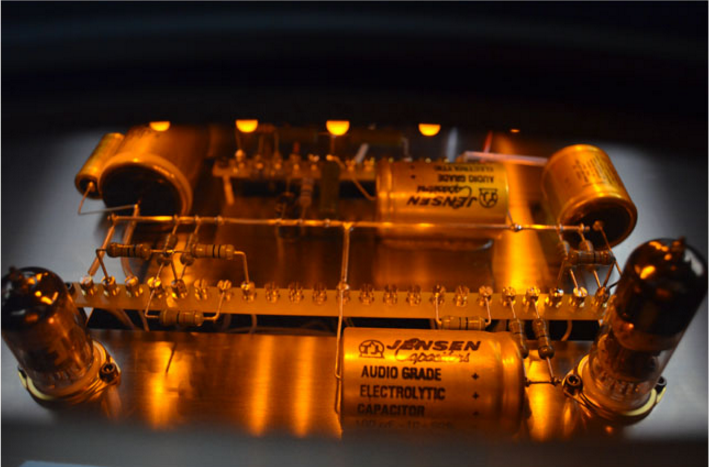

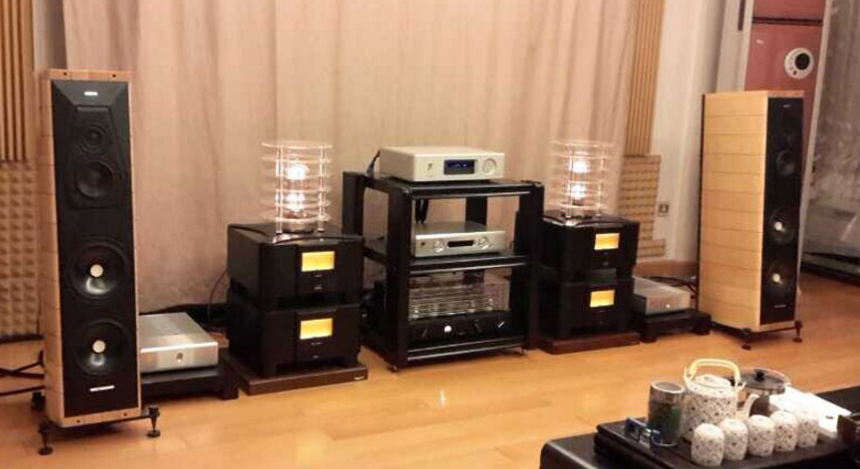

Each amplifier is housed in a two box setup. The top has the amplifier components and the bottom unit contains the power supply.
Each amplifier stands 90cm tall and needs good circulation to dispose of the heat.
Only the best components are used: Jensen Audiophile and Sic-Safco Relsic Capacitors, Mill Audio and AMRG resistors.
Specifications:
Power: 45W into 8Ohm
Inputs: 1 x single ended, 1 x XLR Balanced
Outputs: 2 pairs
Frequency Reponse: 18Hz-26kHz
Tubes: 1 x 212, 1 x ECC83, 1 x 6H30
Weight: 60kg per monoblockPRICE: R 420 000
