Zingali Acoustics was founded in 1986 in a small acoustic handcrafted workshop, where Giuseppe Zingali, a master of sound and electro-acoustics, understands the power of a professional audio market in those years dominated by the most famous American names in the field. But things change in a hurry. The early prototypes of high-efficiency Monitor moves quickly to highly sophisticated products, which in the intentions of the designer must be the best in the world for sound quality and affordable in the purchase price.
| System Type | Bass Reflex |
| Comp. Driver | 1" - Coil 44mm |
| Woofer | 1x12" Coil 75mm |
| Horn | Omniray GZ 12" |
| Power RMS | 500 W (AES) |
| Nominal Imp. | 6 ohm |
| Freq. Response | 30Hz - 21 kHz |
| Cx. Frequency | 1000 Hz 12 dB/Oct |
| Sensitivity | 96 dB (1W/ 1mt) |
| Dispersion | 120° (-6 dB) |
| Dim. (H x W x D) | 1140 x 360 x550 |
| Cabinet | mdf 19 mm / mdf -TLP 40 mm |
| Finish TW 1.2 Evo Standard | Full Satin Black - Full Satin White - Mix Satin White / Satin Black |
| Finish TW 1.2 Evo Plus | Full Lacquer White - Full Black Piano |
| Finish Cabinet & Horn | Satin Black - Satin Pearl White |
| Finish Wood Part | Cherry - Light Cherry - Walnut - Light Walnut - Natural |
| Net Weight | 52 |
HOME MONITOR 2.15
System Type Bass Reflex Comp. Driver 1" - Coil 44 mm Woofer 2 x 15 Coil 75 mm Horn Omniray EZ 15" Power RMS 1000 W (AES) Nominal Imp. 6 ohm Freq. Response 28 Hz - 21 kHz Cx Frequency 800 Hz 12 dB/Oct Sensitivity 96 dB (1W/1mt) Dispersion 120° H / 90° V (-6 dB) Dim. (H x W x D) 1620 x 450 x 640 Cabinet mdf 19 mm / mdf 44 mm Finish HM Standard Full Satin Black - Full Satin White - Mix Satin White/Satin Black Finish HM Plus Full Lacquer White - Full Black Piano Finish Cabinet & Horn Satin Black - Satin Pearl White Finish Wood Part Cherry - Light Cherry - Walnut - Light Walnut - Natural Net Weight 80 HOME MONITOR 2.12
System Type Bass Reflex Comp. Driver 1\" - Coil 44 mm Woofer 2 x 12 Coil 63 mm Horn Omniray EZ 12\" Power RMS 700 W (AES) Nominal Imp. 6 ohm Freq. Response 30 Hz - 21 kHz Cx Frequency 1000 Hz 12 dB/Oct Sensitivity 95 dB (1W/1mt) Dim. (H x W x D) 1440 x 380 x 550 Cabinet mdf 19 mm / mdf 44 mm Finish HM Standard Full Satin Black - Full Satin White - Mix Satin White/Satin Black Finish HM Plus Full Lacquer White - Full Black Piano Finish Cabinet & Horn Satin Black - Satin Pearl White Finish Wood Part Cherry - Light Cherry - Walnut - Light Walnut - Natural Net Weight 60 HOME MONITOR 2.10
System Type Bass Reflex Comp. Driver 1" - Coil 37 mm Woofer 2 x 10" Coil 50 mm Horn Omniray EZ 10" Power RMS 500 W (AES) Nominal Imp. 6 ohm Freq. Response 32 Hz - 21 kHz Cx Frequency 1200 Hz 12 dB/Oct Sensitivity 94 dB (1W/1mt) Dispersion 90° H / 60° V (-6 dB) Dim. (H x W x D) 1290 x 300 x 445 Cabinet mdf 19 mm / mdf 35 mm Finish HM Standard Full Satin Black - Full Satin White - Mix Satin White/Satin Black Finish HM Plus Full Lacquer White - Full Black Piano Finish Cabinet & Horn Satin Black - Satin Pearl White Finish Wood Part Cherry - Light Cherry - Walnut - Light Walnut - Natural Net Weight 45 HOME MONITOR 2.8
Scheda TecnicaSystem Type Bass Reflex Comp. Driver 1" - Coil 37 mm Woofer 2 x 8 Coil 44 mm Horn Omniray EZ 8" Power RMS 300 W (AES) Nominal Imp. 6 ohm Freq. Response 35 Hz - 21 kHz Cx Frequency 1500 Hz 12 dB/Oct Sensitivity 93 dB (1W/1mt) Dispersion 90° H / 60° V (-6 dB) Dim. (H x W x D) 1150 x 260 x 385 Cabinet mdf 16 mm / mdf 30mm Finish HM Standard Full Satin Black - Full Satin White - Mix Satin White/Satin Black Finish HM Plus Full Lacquer White - Full Black Piano Finish Cabinet & Horn Satin Black - Satin Pearl White Finish Wood Part Cherry - Light Cherry - Walnut - Light Walnut - Natural Net Weight 32
HOME MONITOR 2.6
System Type Bass Reflex Comp. Driver 1" - Coil 37 mm Woofer 2 x 6.5 Coil 39 mm Horn Omniray EZ 8" Power RMS 200 W (AES) Nominal Imp. 6 ohm Freq. Response 40 Hz - 21 kHz Cx Frequency 1800 Hz 12 dB/Oct Sensitivity 92 dB (1W/1mt) Dispersion 90° H / 60° V (-6 dB) Dim. (H x W x D) 1050 x 220 x 335 Cabinet mdf 16 mm / mdf 30mm Finish HM Standard Full Satin Black - Full Satin White - Mix Satin White/Satin Black Finish HM Plus Full Lacquer White - Full Black Piano Finish Cabinet & Horn Satin Black - Satin Pearl White Finish Wood Part Cherry - Light Cherry - Walnut - Light Walnut - Natural Net Weight 23 CLIENT EVO 3.18
System Type Bass Reflex Comp. Driver 1" - Coil 44mm Mid Bass 1 x 12" Coil 64mm Woofer 1 x 18" Coil 100mm Horn Omniray GZ 15" Power RMS 1000 W (AES) Nominal Imp. 6 ohm Freq. Response 28 Hz - 20 kHz Cx Frequency 800 Hz 12 dB/Oct Sensitivity 97 dB (1W/1mt) Disperision 140° (-6 dB) Dim (H x W x D) 1650 x 620 x 700 Cabinet mdf 44 mm Finish Cabinet & Horn Full Lacquer White - Full Black Piano - Full Satin Black - Full Satin White Finish Wood Part Cherry - Light Cherry - Walnut - Light Walnut - Natural Net Weight 120 CLIENT EVO 3.15
Scheda TecnicaSystem Type Bass Reflex Comp. Driver 1" - Coil 44mm Mid Bass 1 x 10" Coil 64mm Woofer 1 x 15" Coil 75mm Horn Omniray GZ 12" Power RMS 750 W (AES) Nominal Imp. 6 ohm Freq. Response 30 Hz - 20 kHz Cx Frequency 1000 Hz 12 dB/Oct Sensitivity 96 dB (1W/1mt) Disperision 130° (-6 dB) Dim (H x W x D) 1350 x 520 x 600 Cabinet mdf 44 mm Finish Cabinet & Horn Full Lacquer White - Full Black Piano - Full Satin Black - Full Satin White Finish Wood Part Cherry - Light Cherry - Walnut - Light Walnut - Natural Net Weight 80 CLIENT EVO 3.12
System Type Bass Reflex Comp. Driver 1" - Coil 44mm Mid Bass 1 x 8" Coil 50mm Woofer 1 x 12" Coil 64mm Horn Omniray GZ 10" Power RMS 500 W (AES) Nominal Imp. 6 ohm Freq. Response 32 Hz - 20 kHz Cx Frequency 1200 Hz 12 dB/Oct Sensitivity 95 dB (1W/1mt) Disperision 120° (-6 dB) Dim (H x W x D) 1050 x 420 x 500 Cabinet mdf 44 mm Finish Cabinet & Horn Full Lacquer White - Full Black Piano - Full Satin Black - Full Satin White Finish Wood Part Cherry - Light Cherry - Walnut - Light Walnut - Natural Net Weight 60
CLIENT NAME EVO 2.1

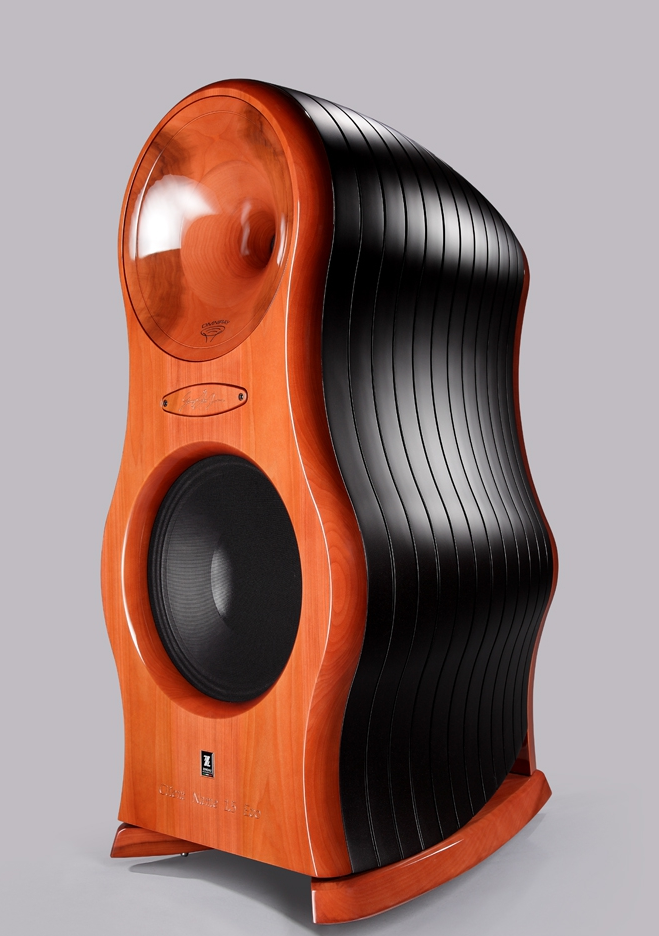

System Type Bass Reflex Comp Driver 2" - Coil 76mm Tweeter 1" Coil 44mm Woofer 1x21" Coil 125mm Horn Omniray GZ 21" Power RMS 2000W (AES) Nominal Impedance 8 ohm Frequency repsonse 28 Hz - 22 kHz Crossover frequency 600/12000 Hz 12 dB/Oct Sensitivity 98 dB (1W/1mt) Dispersion 110° (-6 dB) Dimensions 1600 x 1000 x 720 Cabinet mdf 44mm / tpl 55mm Finish Cabinet Satin Black - Lacquer White - Lacquer Black Piano Finish Solid Wood Cherry Lacquer - Walnut Lacquer - Wenge Lacquer - Natural Lacquer Net Weight 150 CLIENT NAME EVO 1.5

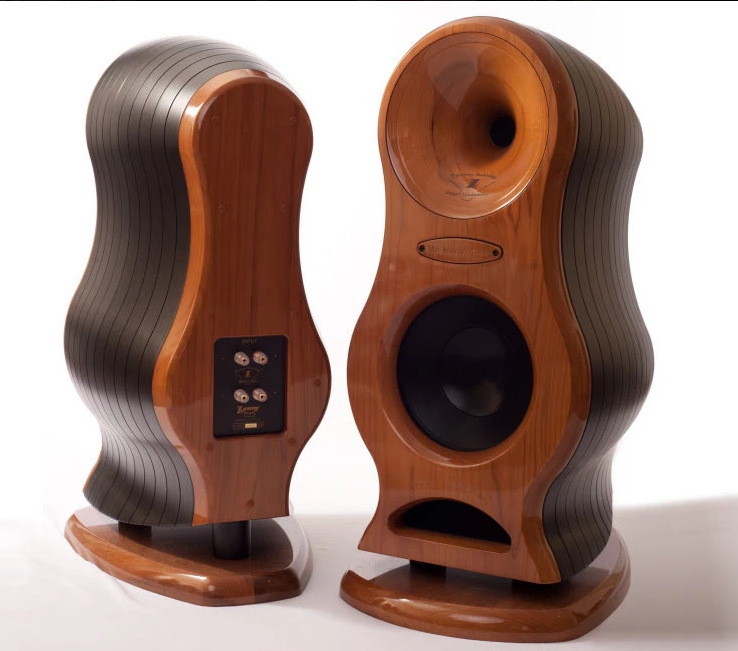

System Type Bass Reflex Comp Driver 1" - Coil 44mm Tweeter No Woofer 1x15" Coil 76mm Horn Omniray GZ 15" Power RMS 1000W (AES) Nominal Impedance 8 ohm Frequency repsonse 32 Hz - 20 kHz Crossover frequency 800 Hz 12 dB/Oct Sensitivity 97 dB (1W/1mt) Dispersion 100° (-6 dB) Dimensions 1120 x 520 x 730 Cabinet mdf 44mm / tpl 44mm Finish Cabinet Satin Black - Lacquer White - Lacquer Black Piano Finish Solid Wood Cherry Lacquer - Walnut Lacquer - Wenge Lacquer - Natural Lacquer Net Weight 75 CLIENT NAME EVO 1.2
System Type Bass Reflex Comp Driver 1" - Coil 44mm Tweeter No Woofer 1x12" Coil 64mm Horn Omniray GZ 12" Power RMS 500W (AES) Nominal Impedance 8 ohm Frequency repsonse 35 Hz - 20 kHz Crossover frequency 1000 Hz 12 dB/Oct Sensitivity 96 dB (1W/1mt) Dispersion 100° (-6 dB) Dimensions 930 x 440 x 620 Cabinet mdf 44mm / tpl 44mm Finish Cabinet Satin Black - Lacquer White - Lacquer Black Piano Finish Solid Wood Cherry Lacquer - Walnut Lacquer - Wenge Lacquer - Natural Lacquer Net Weight 50 CLIENT EVO 3.12
System Type Bass Reflex Comp. Driver 1" - Coil 44mm Mid Bass 1 x 8" Coil 50mm Woofer 1 x 12" Coil 64mm Horn Omniray GZ 10" Power RMS 500 W (AES) Nominal Imp. 6 ohm Freq. Response 32 Hz - 20 kHz Cx Frequency 1200 Hz 12 dB/Oct Sensitivity 95 dB (1W/1mt) Disperision 120° (-6 dB) Dim (H x W x D) 1050 x 420 x 500 Cabinet mdf 44 mm Finish Cabinet & Horn Full Lacquer White - Full Black Piano - Full Satin Black - Full Satin White Finish Wood Part Cherry - Light Cherry - Walnut - Light Walnut - Natural Net Weight 60
ZERO DIECI (10)

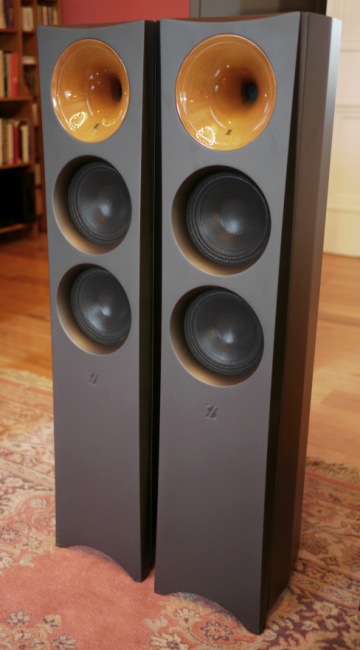

System Type Bass Reflex Comp. Driver 1" - Coil 25 mm Woofer 2 x 10" Coil 44 mm Horn Omniray GZ 10" Power RMS 400 W (AES) Nominal Imp. 6 ohm Freq. Response 30 Hz - 20 kHz Cx. Frequency 1000 Hz 12 dB / Oct Sensitivity 95 dB (1 W / 1 mt) Dispersion 120° (-6 dB) Dim. ( H x W x D) 1320 x 300 x 440 Cabinet mdf 19 mm / mdf 30 mm Finish Cabinet / Panel Satin Black - Lacquer White - Black Piano Finish Horn (Cherry - Walnut - Wenge - Natural) Lacquer - Satin Black - Lacquer White - Black Piano Net Weight 34 ZERO OTTO (8)

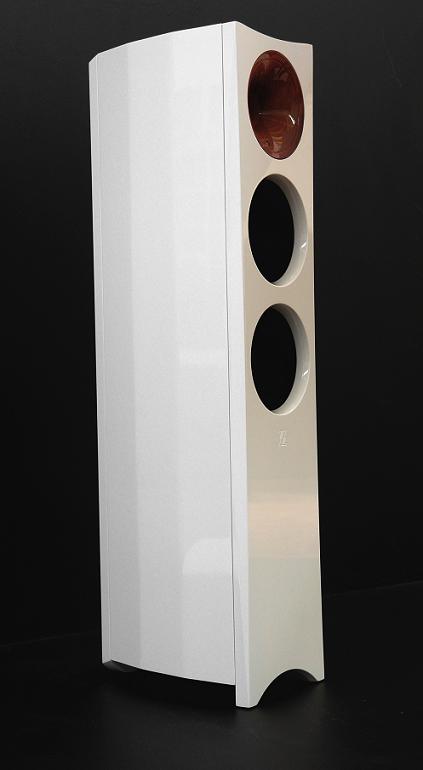

System Type Bass Reflex Comp. Driver 1" - Coil 25 mm Woofer 2 x 8" Coil 50 mm Horn Omniray GZ 8" Power RMS 300 W (AES) Nominal Imp. 6 ohm Freq. Response 32 Hz - 20 kHz Cx. Frequency 1200 Hz 12 dB / Oct Sensitivity 93 dB (1 W / 1 mt) Dispersion 110° (-6 dB) Dim. (H x W x D) 1160 x 250 x 380 Cabinet mdf 19 mm / mdf 30 mm Finish Cabinet / Panel Satin Black - Lacquer White - Black Piano Finish Horn (Cherry - Walnut - Wenge - Natural) Lacquer - Satin Black - Lacquer White - Black Piano Net Weight 28 ZERO SEI (6)
System Type Bass Reflex Comp. Driver 1" - Coil 25 mm Woofer 2 x 6.5" Coil 39 mm Horn Omniray GZ 6" Power RMS 200 W (AES) Nominal Imp. 6 Ohm Freq. Response 35 Hz - 20 kHz Cx. Frequency 1500 Hz 12 dB / Oct Sensitivity 92 dB (1 W / 1 mt) Dispersion 100° (-6 dB) Dim. (H x W x D) 1000 x 215 x 340 Cabinet mdf 16 mm / mdf 30 mm Finish Cabinet / Panel Satin Black - Lacquer White - Black Piano Finish Horn (Cherry - Walnut - Wenge - Natural) Lacquer - Satin Black - Lacquer White - Black Piano Net Weight 20 ZERO BOOKSHELF
System Type Bass Reflex Comp. Driver 1" - Coil 25 mm Woofer 1 x 6.5" Coil 39 mm Horn Omniray GZ 6" Power RMS 100 W (AES) Nominal Imp. 6 ohm Freq. Response 40 Hz - 20 kHz Cx. Frequency 1500 Hz 12 dB / Oct Sensitivity 92 dB (1 W / 1 mt) Dispersion 100° (-6 dB) Dim. (H x W x D) 440 x 215 x 340 Cabinet mdf 16 mm / mdf 30 mm Finish Cabinet / Panel Satin Black - Lacquer White - Black Piano Finish Horn (Cherry - Walnut - Wenge - Natural) Lacquer - Satin Black - Lacquer White - Black Piano Net Weight 12

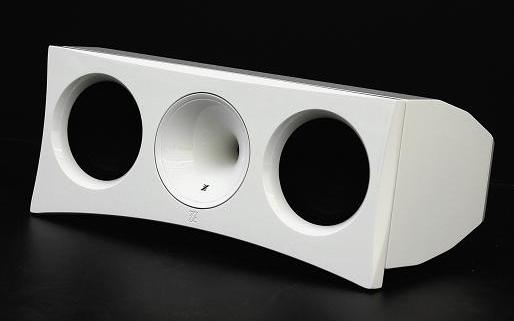

ZERO CENTRAL

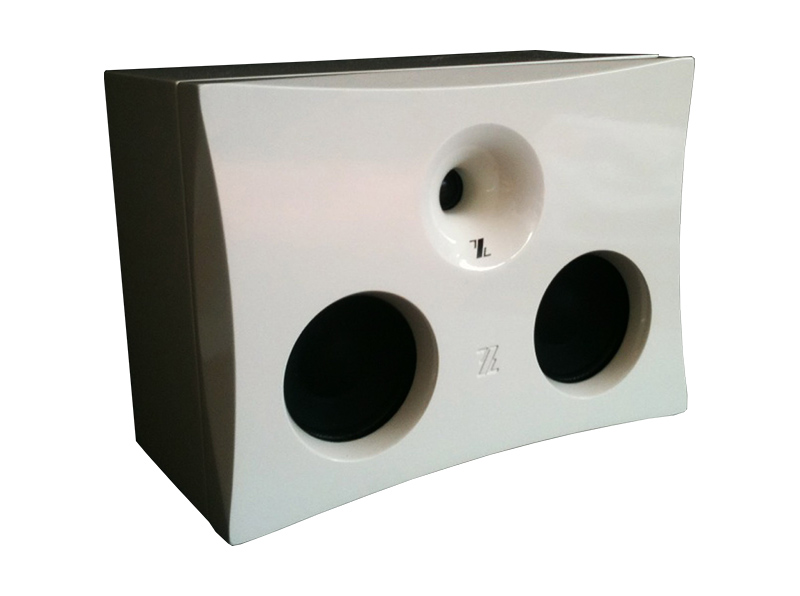

System Type Bass Reflex Comp. Driver 1" - Coil 25 mm Woofer 1 x 6.5" Coil 39 mm Horn Omniray GZ 6" Power RMS 200 W (AES) Nominal Imp. 6 ohm Freq. Response 40 Hz - 20 kHz Cx. Frequency 1500 Hz 12 dB / Oct Sensitivity 92 dB (1 W / 1 mt) Dispersion 100° (-6 dB) Dim. (H x W x D) 245 x 574 x340 Cabinet mdf 16 mm / mdf 30 mm Finish Cabinet / Panel Satin Black - Lacquer White - Black Piano Finish Horn (Cherry - Walnut - Wenge - Natural) Lacquer - Satin Black - Lacquer White - Black Piano Net Weight 15 ZERO SURROUND
System Type Bass Reflex Comp. Driver 1" - Coil 25 mm Woofer 2 x 8" Coil 50 mm Horn Omniray GZ 8" Power RMS 50 W (AES) Nominal Imp. 6 ohm Freq. Response 32 Hz - 20 kHz Cx. Frequency 1200 Hz 12 dB / Oct Sensitivity 90 dB (1 W / 1 mt) Dispersion 90° (-6 dB) Dim. (H x W x D) 210 x 300 x 130 Cabinet mdf 12 mm / mdf 30 mm Finish Cabinet / Panel Satin Black - Lacquer White - Black Piano Finish Horn (Cherry - Walnut - Wenge - Natural) Lacquer - Satin Black - Lacquer White - Black Piano Net Weight 28 ZERO SUB
System Type Bass Reflex Comp. Driver 1" - Coil 25 mm Woofer 2 x 6.5" Coil 39 mm Horn Omniray GZ 6" Power RMS 100 W (AES) Nominal Imp. 6 Ohm Freq. Response 30 Hz - 160 Hz Sensitivity 93 dB (1 W / 1 mt) Dim. (H x W x D) 390 x 320 x 410 Cabinet mdf 19 mm / mdf 30 mm Finish Cabinet / panel Satin Black - Lacquer White - Black Piano Net Weight 14
