Audio-Technica AT-LP140XP is a professional-oriented, fully manual direct-drive turntable that sits above the more common AT-LP120X series. It is designed for both DJ use and serious home listening, offering high torque, solid construction, and classic Technics-inspired features without USB or a built-in phono preamp.

Design and Build

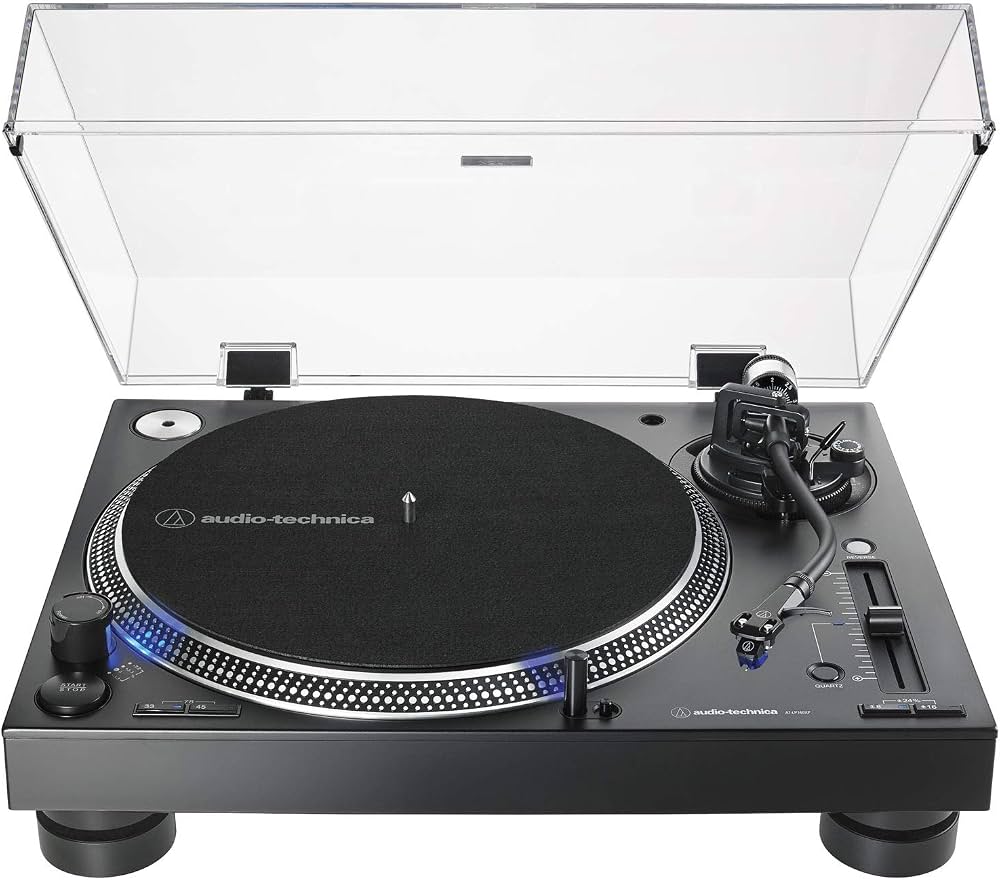

The AT-LP140XP features a substantial, well-damped chassis weighing approximately 10 kg (about 22 lbs). It uses a die-cast aluminium platter with mass damping and a felt mat to reduce resonance and ringing. The plinth is deeper and heavier than the AT-LP120 series, contributing to better isolation and reduced feedback. Available in black or silver finishes, it has a clean, professional appearance with a removable hinged dust cover.

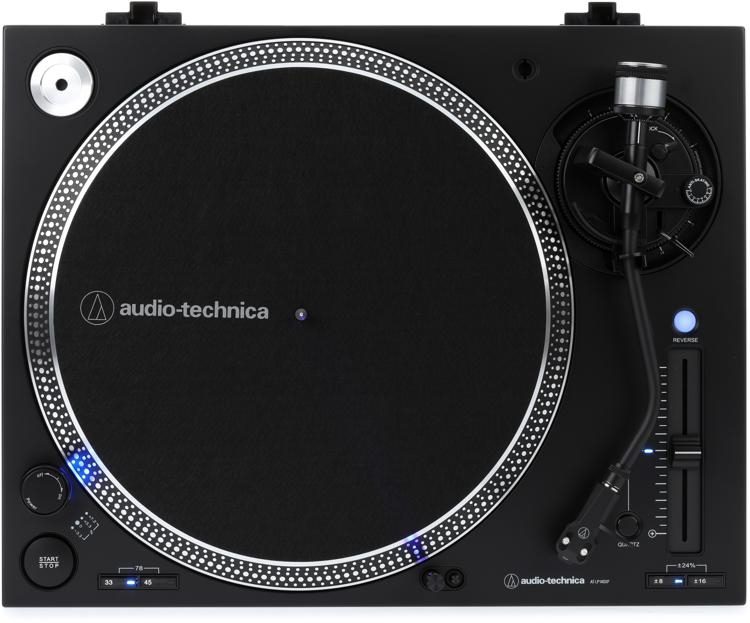

Controls are straightforward and tactile: start/stop button, forward/reverse operation, quartz-locked pitch control with selectable ranges of ±8 %, ±16 %, and ±24 %, and a stroboscopic platter with speed indicator. A popup stylus target light aids cueing in low light. Height-adjustable isolation feet help with setup and vibration control. The overall feel is solid and purposeful—closer to a working tool than a lifestyle accessory.

Drive System and Performance

At the heart is a high-torque DC servo motor with a starting torque of 2.2 kgf·cm. This delivers quick, stable acceleration (typically under a quarter turn to reach speed) and electronic braking. Speeds are electronically selectable: 33⅓, 45, and 78 RPM. Wow and flutter is specified at less than 0.2 % WRMS at 33 RPM, and signal-to-noise ratio exceeds 50 dB. Speed stability is excellent for the price, making it suitable for both critical listening and DJ techniques such as scratching or beatmatching.

Tonearm and Cartridge

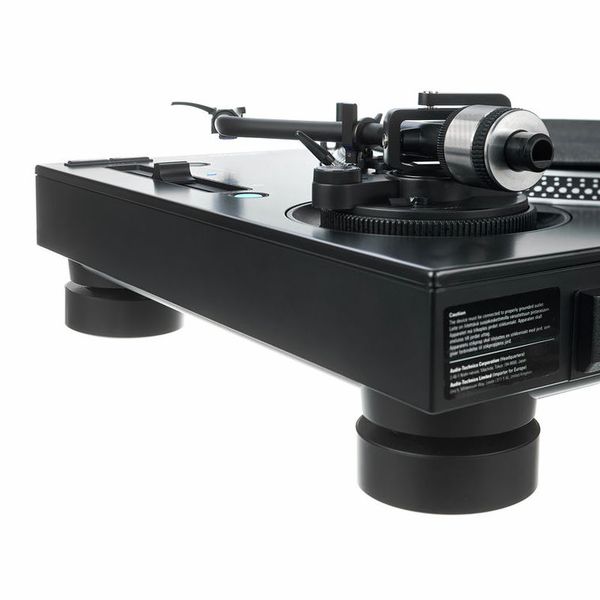

The balanced S-shaped tonearm has an effective length of approximately 230.5 mm, hydraulically damped lift, height adjustment, and lockable rest. Dynamic anti-skate is adjustable (0–4 g range). It accepts a standard universal ½-inch headshell.

It ships with the AT-HS6 headshell and pre-mounted AT-XP3 DJ cartridge (VM-type dual-magnet, 0.6 mil conical bonded stylus, output 5.5 mV). Tracking force is typically set around 3 g (range 2.0–4.0 g). The AT-XP3 is a durable, high-output DJ-oriented cartridge that tracks well and produces energetic, punchy sound, but it is not the last word in refinement or detail retrieval. Many owners upgrade to something like an Ortofon 2M series, Audio-Technica VM95, or higher for improved hi-fi performance. The stylus is user-replaceable (ATN-XP3).

Output is phono-level only (5.5 mV nominal) via detachable dual RCA cables with ground wire. An external phono stage or mixer with phono inputs is required.

Sound Quality

Out of the box with the AT-XP3, the AT-LP140XP delivers a lively, dynamic presentation with strong, controlled bass, energetic midrange, and decent clarity. It has good timing and drive—qualities that suit rock, electronic, and dance music particularly well. The heavy chassis and damped platter help keep the sound composed and free of obvious coloration or feedback issues at higher volumes.

With a better cartridge the deck reveals more refinement, tonal accuracy, and detail while retaining its rhythmic energy and solid low-end foundation. It is not a pure audiophile belt-drive design (it lacks the ultimate refinement or neutrality of higher-end models), but it is clearly more capable and stable than basic entry-level decks. Reviewers consistently note responsive bass, focused midrange, and an engaging, non-fatiguing character once properly set up.

Strengths

• High-torque direct drive with excellent speed stability and quick start/stop.
• Professional features: reverse, wide pitch ranges with quartz lock, stroboscope, stylus light.
• Solid, heavy build with good damping and isolation.
• Adjustable tonearm height and anti-skate; easy cartridge upgrades.
• Three speeds including 78 RPM.
• Strong value for a DJ-capable deck that also works well at home.

Limitations

• No built-in phono preamp or USB output (pure analogue, phono-level only).
• Stock AT-XP3 cartridge is DJ-oriented and benefits from an upgrade for critical listening.
• Not as refined or neutral as dedicated audiophile turntables in the same or higher price range.
• Some minor ergonomic notes (e.g., stylus light mechanism on early units).

Verdict

The Audio-Technica AT-LP140XP is a robust, no-nonsense direct-drive turntable that successfully bridges DJ functionality and home hi-fi use. Its high-torque motor, solid chassis, and professional controls make it reliable for performance or everyday spinning, while the upgradeable tonearm and cartridge system allow it to grow with the user’s system. It is particularly appealing if you want Technics-like features and feel without the full Technics price, or if you need reverse, wide pitch control, and 78 RPM capability.

For pure audiophile listening a good belt-drive design may still edge it out in refinement, but for versatility, build quality, rhythmic drive, and long-term durability the AT-LP140XP is an excellent choice in its category. Pair it with a decent external phono stage and a better cartridge, and it becomes a highly capable and enjoyable vinyl source.
