Audiolab M-DAC Review

The Audiolab M-DAC, launched in late 2011/early 2012, quickly became one of the most acclaimed and award-winning DACs of its era. Designed by John Westlake and built around the highly regarded ESS Sabre32 9018 chip, it offered exceptional performance, flexibility, and build quality at a mid-range price (originally around £600 / $800–900). It won multiple “Product of the Year” awards and remains a strong performer on the used market today.

Design and Build

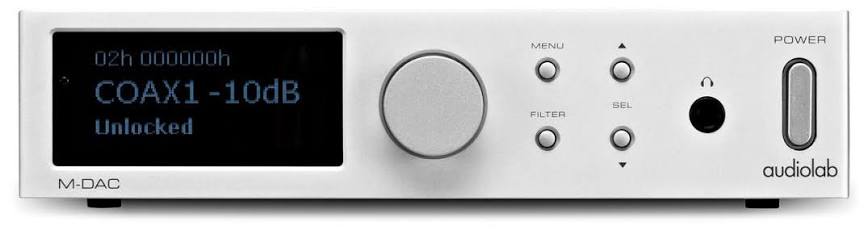

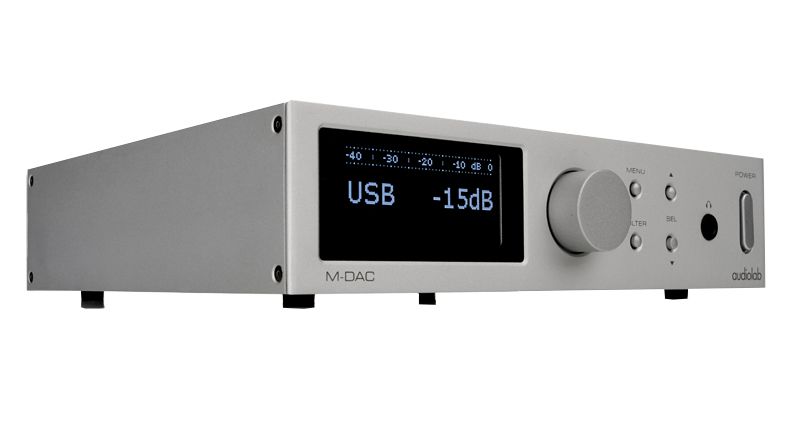

The M-DAC is a compact, half-width aluminium chassis finished in black or silver. It features a clear OLED display that shows input, sample rate, volume level, and other information, along with a large volume control and simple front-panel buttons. The unit feels solid and more expensive than its price suggests.

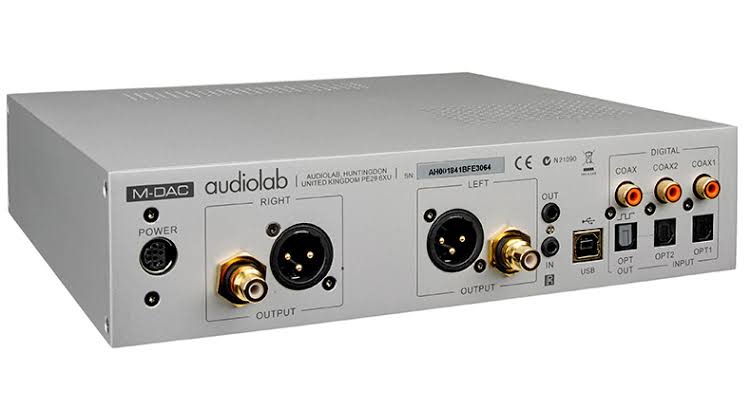

Connectivity is comprehensive for its time:

• Digital inputs: 2 × coaxial, 2 × optical (Toslink), 1 × USB (asynchronous)
• Digital outputs: 1 × coaxial, 1 × optical
• Analogue outputs: Balanced XLR and unbalanced RCA (fixed or variable)
• Headphone output: 6.3 mm jack on the front panel

It can operate as a pure DAC or as a digital preamplifier thanks to the variable analogue output. Multiple user-selectable digital filters allow fine-tuning of the sound. The original version supported up to 24-bit/192 kHz via S/PDIF and 24-bit/96 kHz via USB (later firmware and the M-DAC+ improved on this).

Key Specifications

• DAC chip: ESS Sabre32 9018 (32-bit)
• Supported formats: Up to 24-bit/192 kHz (coaxial/optical); USB typically 24-bit/96 kHz on the original model
• Frequency response: 20 Hz – 20 kHz (±0.2 dB)
• THD: <0.002 % (RCA), even lower on XLR
• Dynamic range: >115 dB (RCA), >120–122 dB (XLR)
• Output level: 2.25 V RMS (RCA), 4.5 V RMS (XLR)
• Dimensions: Approx. 250 × 59 × 252 mm
• Features: Multiple digital filters, Class A analogue output stage, headphone amplifier, remote control

Sound Quality

The M-DAC is widely praised for its engaging, musical, and highly resolving performance. It combines precision with energy and avoids the clinical or sterile character sometimes associated with early Sabre-based designs.

• Timing and dynamics: Excellent. The M-DAC has a propulsive, rhythmic quality that makes music feel lively and involving. Transients are sharp and impactful without becoming aggressive.
• Detail and resolution: High levels of insight and clarity. It retrieves fine detail and texture effectively while maintaining a natural sense of flow.
• Soundstage: Wide, well-organised, and three-dimensional, with good depth and precise imaging.
• Tonal balance: Generally neutral to slightly forward, with clean, extended treble, a clear and present midrange, and controlled, articulate bass. It is not overly warm, but neither is it bright or fatiguing when properly matched.
• Headphone performance: The built-in headphone stage is capable and enjoyable, making the unit useful as a desktop DAC/headphone amp.

Reviewers frequently noted that it punched well above its price, often competing with more expensive DACs in musicality and overall enjoyment. It works well with a wide range of sources and systems, from desktop setups to full hi-fi systems.

Pros

• Highly musical, dynamic, and engaging sound
• Excellent resolution and timing
• Flexible connectivity and filter options
• Can function as a digital preamp
• Solid build and clear display
• Outstanding value (especially used)
• Strong headphone output

Cons

• Original USB implementation limited to 24/96 (improved in the later M-DAC+)
• No native DSD support on the first version
• External power supply (some prefer an upgraded linear PSU)
• Slightly forward character may not suit all systems or tastes

Verdict

The Audiolab M-DAC is a landmark product that helped popularise high-performance DACs at accessible prices. It delivers a combination of technical ability, musical engagement, and practical features that still holds up well more than a decade later.

While the later M-DAC+ added higher sampling rates, DSD support, and an internal power supply, the original M-DAC remains an excellent choice for listeners seeking a detailed, lively, and involving digital source. On the used market it continues to offer exceptional performance for the money and is highly recommended for anyone building or upgrading a digital front end.
