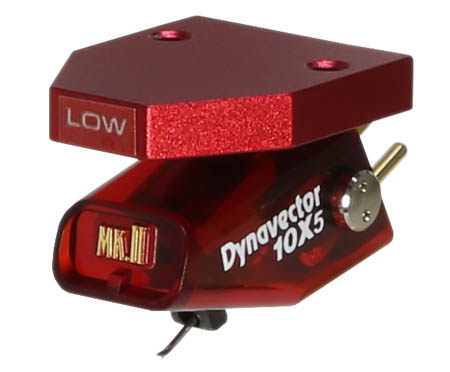

DynaVector – DV 10X5MKII Specifications

Low output moving coil cartridge
with flux damper and softened magnetism

Output Voltage

0.5 mV (at 1KHz, 5cm/sec.)

Channel Separation

25 dB (at 1KHz)

Channel balance

1.0 dB (at 1KHz)

Frequency response

20 – 20,000 Hz（±2dB）

Compliance

12 mm/N

Tracking force

1.8 – 2.2 g

Impedance

32 ohms

Recommended load impedance

> 100 ohms

Cantilever

6mm length hardened aluminium pipe

Stylus tip

Nude Diamond “Shibata III” Line Contact

Weight

7.5 g
