ECM 1 MKII High End DAC and Music Streamer (Demo-Full warranty)

Original price was: R148,000.00.Current price is: R80,000.00.

TECHNICAL SPECS ECM 1 MKII

Technical Data
  All measurements are made at 120V / 240V  //50Hz / 60Hz
No. of channels 2
Output Impedance 300 Ohms
Noise floor (20 – 20 kHz) < -145 dB
Frequency response 0.5 – 48 kHz
THD+N < 0,0005 %
Upsampling rate 192 kHz, 24 bit
Digital/Analog conversion 192 kHz, 24 bit
Input sampling rate:
2 x SPDIF Coax  192 kHz, 24 bit
2 x SPDIF TOSLink  192 kHz, 24 bit
Network connection: Wi-Fi or LAN
Internal drive: Docking, self installation. 3.5″/2.5″ – unlimited capacity.
Supported audio formats: All popular formats including: WAV/WAVE, MP3, AAC+, Vorbis, ALAC, FLAC, APE, AIFF, WMA, up to 192kHZ/24bit, DSD, up to DSD 128 (5.6 MHz)
Supported control interfaces: DLNA, UPnP, Android and iOS remote

Internal storage: docking, self installation

Streaming services:

• AirPlay 2 ®
• Spotify ® Connect
• Qobuz ®
• Plays with Audirvāna
• TIDAL ® Connect
• Roon Ready
• JPLAY Certified
• DLNA
• Internet Radio
• Bluetooth streaming from any Bluetooth enabled device
Power consumption
(no load or signal)
50 W
 standby  0.5 W
Dimensions
Width 470 mm / 18.5 inches
Depth 381 mm / 14.99 inches
Height 80 mm / 3.14 inches
Weight 8.3 kg. / 18 lbs.

*(without internal drive)

Price when tested:
£5,249

Description

Electrocompaniet ECM 1 MkII for the joy of streaming

Electrocompaniet ECM 1 MkII streamer & DAC review https://the-ear.net/

Electrocompaniet EC1M MkII streamer & DAC

The ECM 1 MkII is not a new product but my attention was drawn to it by someone whose ears I have come to trust, namely Rich Trussel of Network Acoustics. Rich has a pretty fancy system with Vivid G2 speakers and a Soulution power amplifier, he must be investing most of the income from the business in hardware. Yet he chose this streamer rather than one of the many more expensive and well regarded examples on the market, a streamer that isn’t really designed to be used with a separate DAC albeit it does have some basic digital outputs.

Electrocompaniet is the oldest extant Norwegian hi-fi brand, it was one of the wave of successful companies that launched in the early seventies alongside the likes of Naim, Linn and Rega. The brand has never had a particularly high profile but has long had a good reputation for making decent amplifiers. Electrocompaniet got into streaming ten years ago and was the first to incorporate Qobuz natively into a control app, this is because they developed their own software rather than using a third party option as is commonly the case. With the likes of JPlay it has become clear that control apps make more difference than merely how good a GUI is and how much metadata is presented, they have a fundamental influence on the sound of streamers and this is something that Electrocompaniet appears to have grasped earlier than most.

Electrocompaniet ECM 1 MkII streamer & DAC review https://the-ear.net/

The EC Play app operates a range of their products as well as the ECM 1 MkII. It’s not the slickest looking of apps and didn’t really seem to enjoy sorting the metadata from music files on my Melco N10 library, but it sounds better than JPlay which usually outperforms manufacturer’s dedicated apps in my experience, so they must be doing something right. Possibly this includes not sharing data back and forth between app and player all the time but remaining in relative radio silence when playback is occurring, as is the case with JPlay.

A bit like Auralic’s Lightning app EC Play needs to scan an attached library before presenting its contents, I have a good few files on the Melco but was nonetheless surprised at how long this took. It could be that the Melco is designed to run at audio rather than IT speeds of course and more importantly it’s not something that needs to be done often.

Electrocompaniet ECM 1 MkII streamer & DAC review https://the-ear.net/

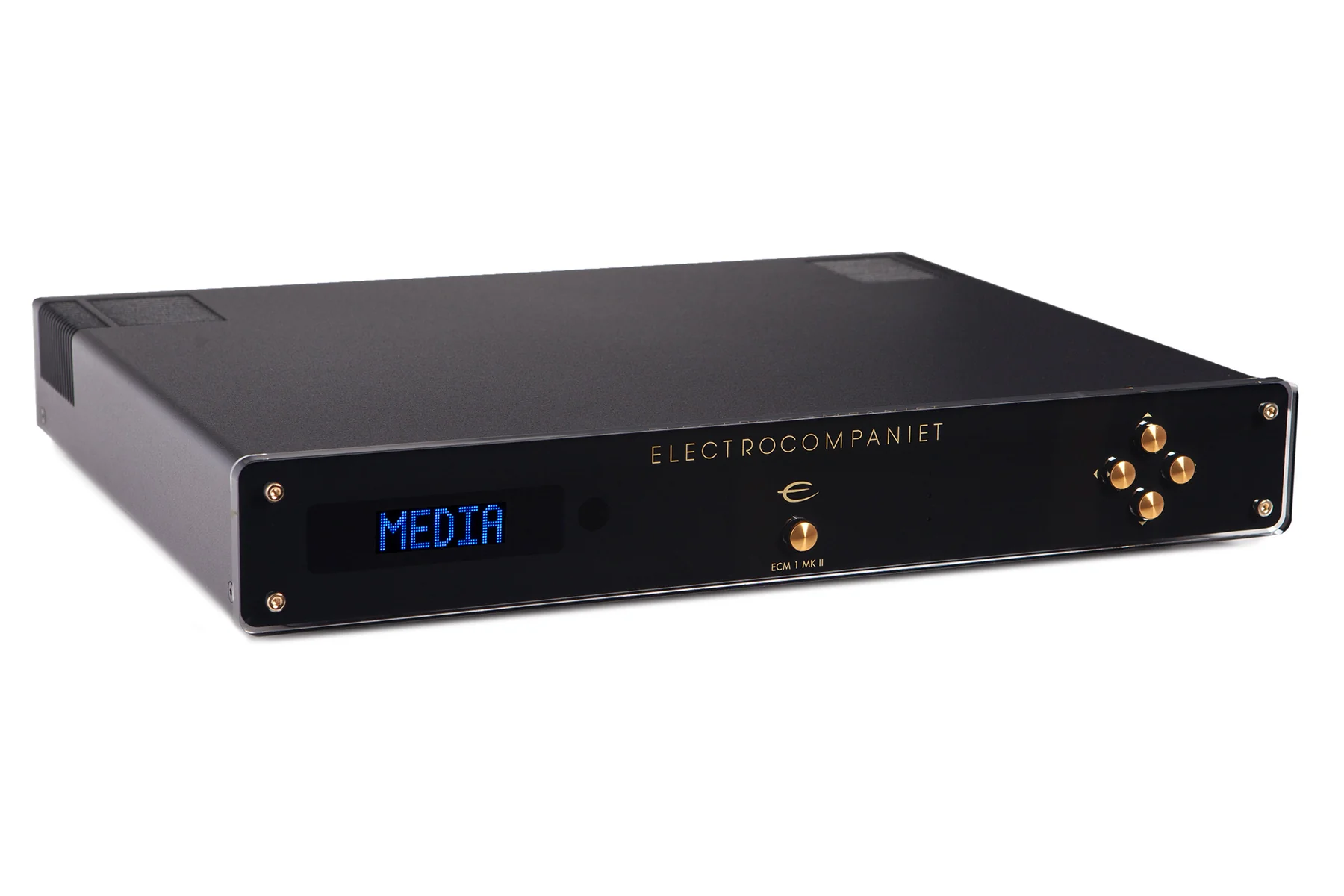

The ECM 1 MkII is simply adorned on the control front and in practice only the standby switch saw any action in my system, all other controls can be carried out with the remote handset and EC Play app. The back panel is not a lot more complicated with analogue outputs in both the usual flavours, these are variable by the way so can be connected directly to a power amp or powered speakers. There are coax and optical digital inputs but only a coax output, a AES or USB output would be useful here for DAC upgrades. The key streaming connections are the RJ45 ethernet port and a USB for external drives, an alternative is to install a drive inside the ECM 1 MkII which has a dock for 2.5 inch and 3.5 inch examples, a useful feature for those who appreciate the sound quality benefits that locally stored files always bring.

The ECM 1 MkII is an unusually big slab of kit at 470mm (18.5 inches) wide, but it fitted into the broader of my two racks, it is usefully deep too which makes installation easier. Build quality is solid rather than particularly fancy although the acrylic front panel and brass buttons go some way to enhancing its appearance.

Electrocompaniet ECM 1 MkII streamer & DAC review https://the-ear.net/

What is not obvious is that this device has the ability to connect to the network without a cable and to accept Bluetooth and Airplay signals. Outside of Qobuz which remains native it offers Connect services from Tidal and Spotify, you don’t get some of the less common services such as Amazon Music or High Res Audio, however as a Qobuz enthusiast myself this doesn’t seem much of a hardship.

Sound quality

The ECM 1 MkII sample supplied for review did not have an onboard drive so I hooked it up to my Melco N10 and let it churn through the files, the first selected for audition was Shenandoah from guitarist Bill Frisell’s East/West album. The energy of this live performance was immediately apparent thanks to the Electrocompaniet’s ability to resolve immediacy and atmosphere in the context of exceptional timing. I particularly enjoyed the way that the dynamics are handled, this track starts out fairly quietly before the band joins in on bass and drums, here the soundstage expanded with speed and precision to make space for the new sounds, and this made the performance all the more convincing in the process.

Expectations had been raised by Rich Trussell but as I had previously been enjoying a far more expensive streamer and DAC the ECM 1 MkII surprised me with its natural vigour and engaging qualities. Another track from East/West called Pipe Down followed, this sounded very crunchy (with a chewy underside) in a good way, the sound being very real and tactile with plenty of the torque that Frisell brings to his playing. The sound may not be quite as refined as gear that costs more than twice as much but it’s questionable whether it’s any less enjoyable for it.

Electrocompaniet ECM 1 MkII streamer & DAC review https://the-ear.net/

If you like depth of image and three dimensionalities of soundstaging then there is a lot to like about the ECM 1 MkII, the forthcoming Bugge Wesseltoft album Am Are is not an audiophile recording but it sounds pretty good in this streamer’s hands. The placement and shape of keyboard, drums and bass is precise and each has its own acoustic field, the Electrocompaniet making space for the various elements in the mix to inhabit. And the female vocal on Is Anyone Listening really shines.

The ECM 1 MkII manages to combine sparkle and solidity in an entirely cohesive presentation that is remarkably clean given its price point. Generally what makes a streaming source better is lower noise, by which I mean the noise floor that is not directly audible but which becomes obvious once it has been reduced. Here the noise floor is lower than usual for a streamer in this class and that allows the results to be that much more natural and engaging. Especially when you play something upbeat like the Moses Yoofee Trio’s debut album MYT where the snap of the snare and body of the notes from piano and bass are rendered without lag or blur but have an immediacy and intensity that is thrill powered, you just have to sit up and take notice. It’s not short of dynamic punch either and manages all this without sounding grainy or edgy which can often be a streaming failure.

Electrocompaniet ECM 1 MkII streamer & DAC review https://the-ear.net/

The results appear to be entirely even handed and natural, play something beautiful like Lenny by Stevie Ray Vaughn and you will be impressed with both the weight of the bass line and the restraint of the guitar playing, this really sounded beautiful. Ditto current favourite The Old Country (More from the Deer Head Inn) by Keith Jarrett, Gary Peacock and Paul Motian on ECM. Their rendition of I Fall in Love too Easily is an absolute beauty, it’s hard to imagine anyone playing this Chet Baker standard with more grace and finesse. Another quality that really appeals is the ECM 1 MkII’s supreme timing, it’s this alongside the low noise that allows it to play relatively complex pieces and make them sound musical. This is a fundamental quality that divides audio sources, those that do it well make listening far more pleasurable than those that don’t. Detail and tonal finesse without coherence do not hit the spot in the same way.

Conclusion

I am very impressed with the Electrocompaniet ECM 1 MkII and suspect that it will outperform many competitors in demonstration. The company’s deep heritage gives one confidence in long term reliability and the sound it produces is of a sort that doesn’t seek to impress with excitement but rather allows you hear more of the music in such a way that listening becomes far more engaging than other domestic pursuits. If you want to find out why streaming is now the most popular medium for musical entertainment for the sound quality conscious, I heartily recommend you give it a listen.


Electrocompaniet ECM 1 MKII- DAC & Music Streamer Review: A New Dimension of High-Resolution Streaming

Electrocompaniet ECM 1 MKII DAC & Music Streamer

Introduction: Electrocompaniet ECM 1 MKII- DAC & Music Streamer Review

The Electrocompaniet ECM 1 MKII- DAC & Music Streamer Review marks a milestone in high-resolution streaming, blending refined Norwegian craftsmanship with state-of-the-art digital conversion. From lossless PCM to DSD128, this true sonic powerhouse invites you to rediscover your favourite tracks in exquisite detail.

Technical Brilliance & Innovative Features

At the core of the ECM 1 MKII is Electrocompaniet’s in-house developed streaming software paired with the enhanced EC Software Engine. This duo effortlessly handles lossless WAV, FLAC, ALAC and DSD playback, while delivering seamless native streaming from TIDAL Connect, Spotify Connect and Qobuz. Compatibility with AirPlay 2, DLNA and Bluetooth ensures every source is covered, and Roon Ready certification adds intuitive browsing, rich metadata and personalised recommendations.

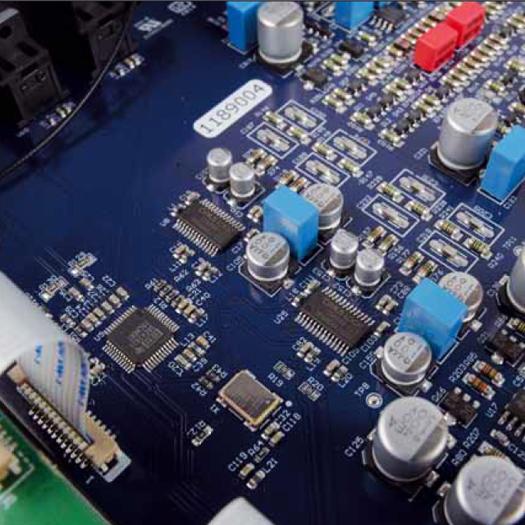

Driving the analogue output, the Reference Analog Stage utilises a fully symmetrical design to achieve an exceptionally low noise floor of < –145 dB (20 Hz – 20 kHz) and THD+N under 0.0005%. Twin Cirrus Logic converters—one per channel at 192 kHz/24 bit—translate data with pinpoint accuracy, preserving transient response, tonal neutrality and micro-dynamics. Up to two SPDIF coaxial and two TOSLink inputs extend your legacy connections, while optional internal drive docking grants unlimited local storage.

Sound Quality That Transcends Boundaries

Through the ECM 1 MKII, every note emerges with breathtaking clarity and natural timbre. Expect an expansive soundstage, precise imaging and effortless macro- and micro-dynamic swings that breathe life into recordings. The dual-mono DAC architecture and jitter-minimising clock system ensure a pure, coherent waveform, free from unwanted artefacts.

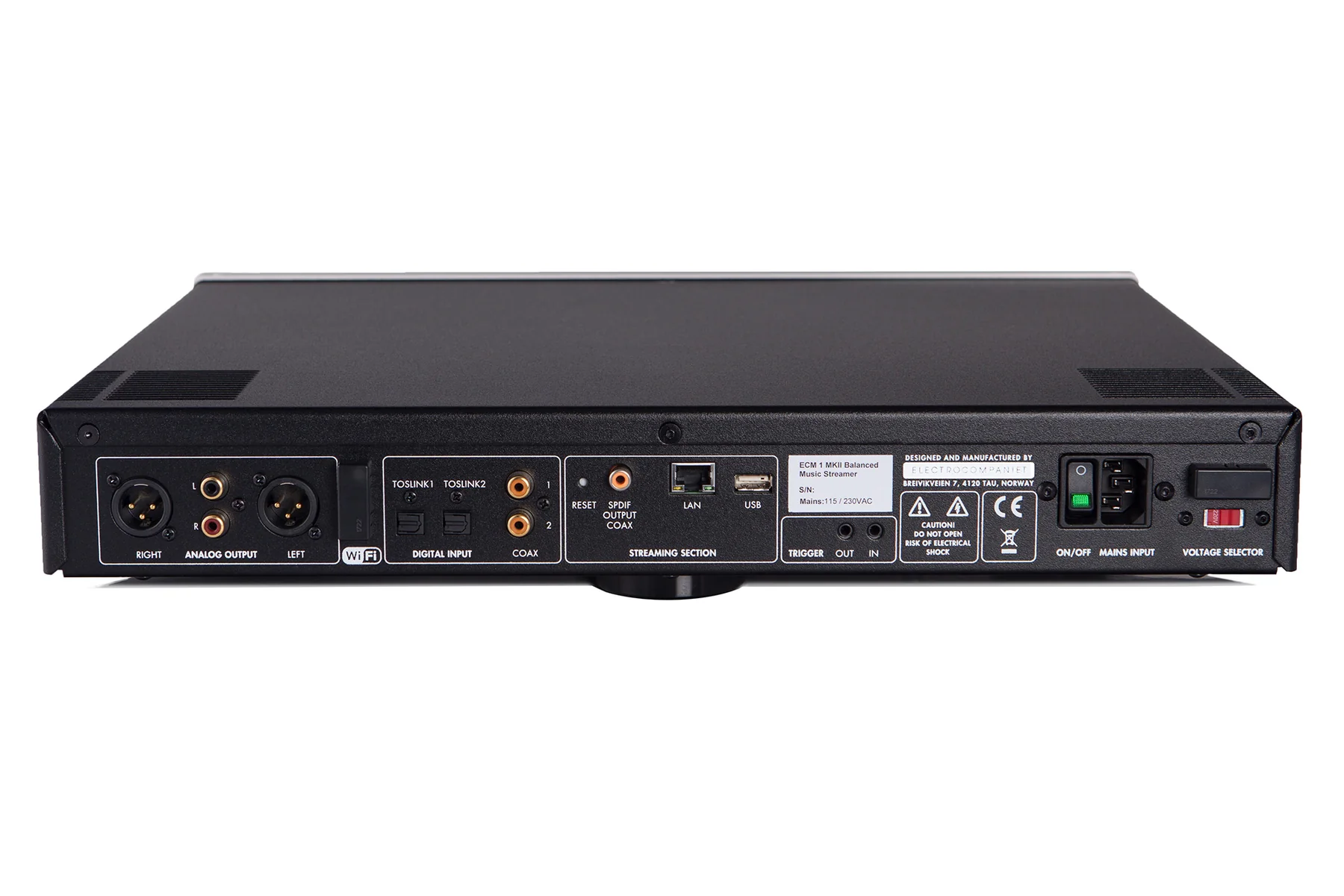

Electrocompaniet ECM 1 MKII DAC rear panel connections

Who Is the ECM 1 MKII For?

If you’re an audiophile seeking an all-in-one streaming solution without compromise, the ECM 1 MKII is for you. Whether you’re curating multi-room playback, exploring DSD archives or crafting a dedicated two-channel system, its flexible feature set and reference-grade performance cater to passionate listeners who demand the utmost fidelity.

Pros & Cons

  • Pros:
    • In-house streaming software with native lossless and DSD support
    • Enhanced EC Software Engine for true multi-room flexibility
    • Roon Ready and TIDAL Connect for seamless discovery and streaming
    • Reference Analog Stage & dual Cirrus Logic DACs for pristine detail
    • Ultra-low noise floor (< –145 dB) and THD+N below 0.0005%
    • Elegant MKII design with efficient standby mode (0.5 W)
  • Cons:
    • Premium investment for newcomers to high-end audio
    • Optional internal drive requires self-installation

Elevating Your Audio Journey

The Electrocompaniet ECM 1 MKII- DAC & Music Streamer redefines what a network player can achieve. From its supreme analogue conversion to the rich feature set of its streaming platform, it delivers an immersive, authentic listening experience. Ready to immerse yourself?
