Plinius Kaitaki Preamplifier (Black/Mint)

R42,000.00

Kaitaki Preamplifier

The preamp is a current production version.

Plinius has the ability to make the most clean and amazing sounding Solid State preamplifiers in the world. Their attention to detail is renowned and the quality is out of this world. At R42000 this is a VERY good buy!


While the Kaitaki preamplifier mates aesthetically and musically with the Plinius P10 power amplifier this exciting preamplifier is the perfect partner for the Plinius SA103 power amplifier used either as a stereo amplifier or in a monoblock configuration.

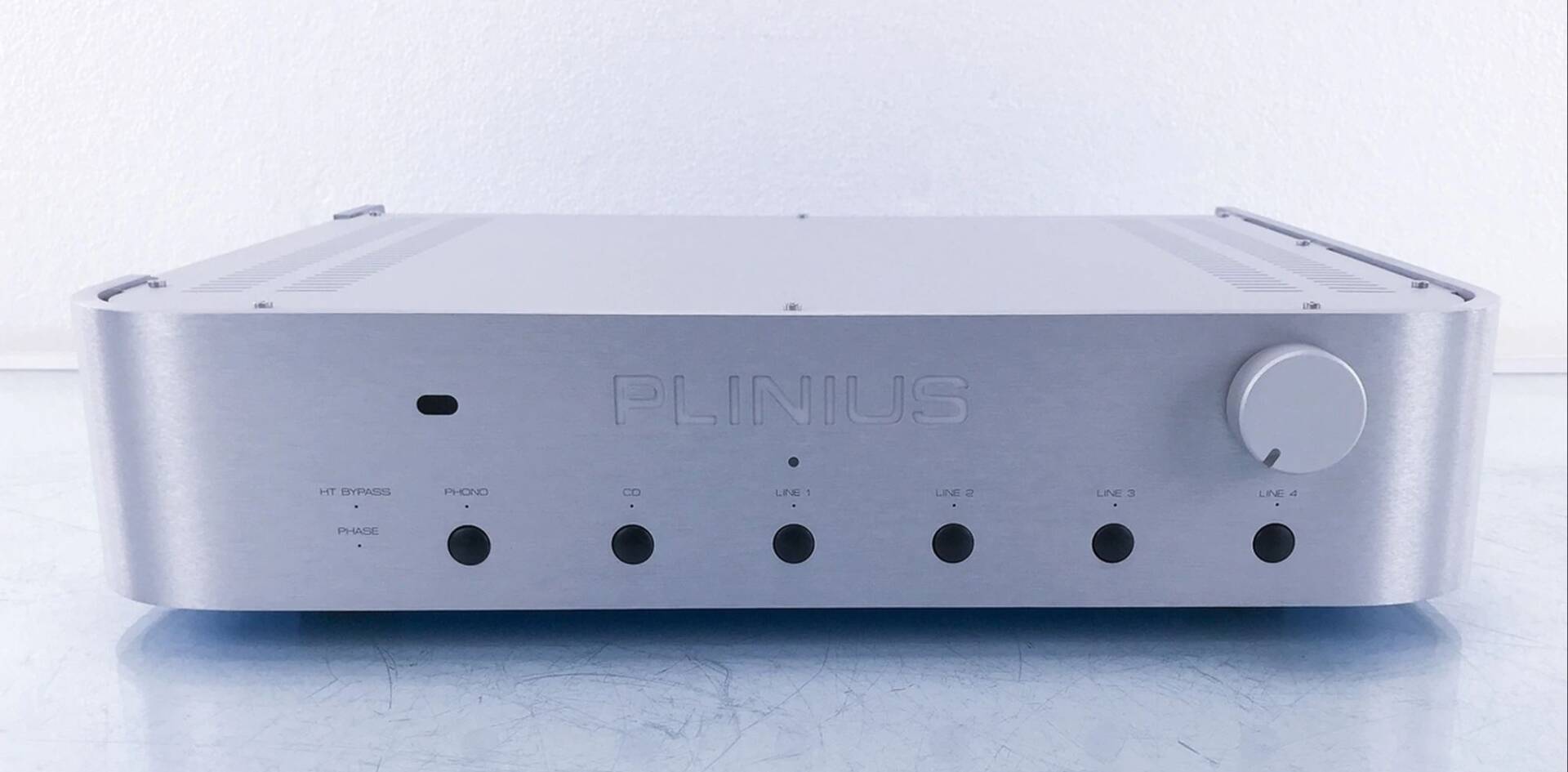

Visible controls on the Kaitaki are the rotary volume knob and source selection buttons with all other functions driven from the distinctive Plinius remote control. LED indicators on the front panel display demonstrate the source selected and status of the mute, phase and HT bypass functions.

The Kaitaki will allow the connection of up to 5 source components including both balanced and single ended connection for CD. A processor loop allows integration with a home theatre system and output is available from RCA or XLR connectors. The optional adjustable phono stage model allows enjoyment of vinyl at a sophisticated level without the need to purchase a specialised phono preamplifier.

The electronics topography is derived in part from development work done on circuits for our later generation integrated amplifiers and source components, and  a power supply with extremely low impedance allows the audio circuitry to deliver its best.


Description

FREQUENCY RESPONSE

20Hz to 20kHz +/- 0.2dB

SIGNAL TO NOISE RATIO

-80dB at rated input level, A weighted

DISTORTION

<0.05% THD at rated input level

INPUT SENSITIVITY FOR RATED OUTPUT

125mV RMS Unbalanced Inputs
62mV RMS Balanced Inputs

INPUT IMPEDENCE

50k ohms

RATED PRE OUT LEVEL

500mV RMS into 10k ohms or higher

PRE OUT MINIMUM RECOMMENDED LOAD

47k ohms

LINE OUT LEVEL

190mV at 200 ohms

OUTPUT SOURCE IMPEDENCE

Typically 100 ohms

GAIN

Line Ampilfier: 12dB

POWER/CURRENT CONSUMPTION

40W
0.10A (23W) idle/standby

INPUT CAPACITANCE

100pF

ADJUSTABLE GAIN

60dB, 66dB

ADJUSTABLE LOAD

47k ohms, 470 ohms, 100 ohms, 47 ohms, 22 ohms

DIMENSIONS

Height: 105mm (4″)
Width: 450mm (17.5″)
Depth: 400mm (15.75″)
Weight: 9kg (20lbs)
