CH Precision – 10 Series

SWITZERLAND  ·  ULTRA HIGH-END AUDIO INSTRUMENTS  ·  OFFICIAL SA DISTRIBUTOR

CH logo white.png

At CH Precision, precision is not simply a measure of performance; it is the principle that governs every decision, every technology, and every element of every design.

Every aspect of a CH Precision component is engineered in-house—from analog and digital circuitry to signal processing, streaming architecture, software, power supplies, and mechanical design. Rather than depend on off-the-shelf modules or outsourced platforms, we develop solutions expressly to advance believable music reproduction.

That same independence shapes our modular architecture. CH components are conceived as enduring platforms, able to evolve through hardware, firmware, and system expansion without rendering the original investment obsolete. It is not merely how we engineer. It is who we are.

Precision as Principle

CH Precision components are conceived not as fixed products, but as enduring platforms. Their modular architecture allows each component to evolve through hardware expansion, firmware refinement, and new system configurations, enabling listeners to deepen and refine their experience without abandoning their original investment.

This capacity for evolution is more than an architectural principle. It is the natural expression of a philosophy that unites invention, engineering discipline, and long-term respect for the listener.

D10 Reference Transport

A Transport Without Compromise
The Final Word in Disc Playback

The D10 Reference Transport stands as a testament to CH Precision’s commitment to absolute fidelity, even in a format many had long written off. By applying uncompromising mechanical design, meticulous isolation strategies, and proprietary digital control technologies, the D10 elevates disc playback to a level that rivals the finest file-based sources. Whether unlocking the full potential of SACD, CD, or MQA-CD, it delivers music with astonishing clarity, nuance, and temporal precision. Paired with the C10 Master DAC, it forms a digital front end capable of revealing the soul of every recording, proving that, in the right hands, the silver disc remains not just relevant, but revelatory.

Specifications

General

  • Type: Dual chassis optical disc transport

  • Options:

    • Additional digital ouput board

    • Clock sync board

  • Upgrade path: Reference clock (T10)

  • Dimensions: 440 x 440 x 133 mm (W D x H), both units (Transport + Power Supply)

  • Weight: 42kg (transport) + 23kg (power supply)

Supported disc formats

  • CD, CD-R, CD-RW, MQA-CD: stereo PCM 16 bit / 44.1kHz (redbook)

  • SACD: single layer and hybrid stereo, DSD 1 bit / 2.8224MHz (scarletbook)

Digital Output

  • Type: 1x CH Link HD, 1x AES/EBU (XLR), 1x S/PDIF (RCA), 1x S/PDIF (TOSLINK) per Digital output board (1x standard)

  • Sampling rate:

    • CH Link HD: PCM 44.1kHz to 88.2kHz, DSD 2.8224MHz

    • S/PDIF, AES/EBU: PCM 44.1kHz to 88.2kHz, DSD 2.8224MHz (DoP format)

  • Bit depth: PCM 16 bit to 24 bit, DSD 1 bit

  • MQA: Raw MQA or unfolding to 24 bit / 88.2kHz OFS stream

Clocking options

  • Clock master or synchronization to reference clock or DAC

C10 Reference DAC

Faithful to the Event in Space and Time
A Platform for Discovery.
A Portal to Music.

The C10 DAC stands as a state-of-the-art digital converter, an apex of CH Precision’s engineering, time-domain research, and conversion architecture. Its significance extends beyond stand-alone performance. The C10 is the foundation of a digital system designed to grow, evolve, and deepen in capability without abandoning its original architecture.

​

Each stage of that path builds on the same foundation. Every addition extends the C10’s inherent strengths while preserving the precision, stability, and musical coherence established by the DAC itself. The architecture remains additive, time-aligned, and continuous from the first C10 configuration to full C10 Statement DAC realization.



From its proprietary spline-based filter to its rigorously isolated power architecture, the C10 is engineered to preserve temporal integrity and reveal the expressive depth of recorded music. In a world of shifting formats and transient solutions, it is built to endure, to evolve, and to remain musically relevant for years to come.

Specifications

General

  • Type: Dual-chassis digital-to-analog converter

  • Options:

    • Additional digital input HD board

    • USB audio board

    • Ethernet streaming HD board

    • Clock sync board

  • Upgrade path:

    • Dual-mono DAC (Separate left and right power supplies, 3 chassis)

    • C10 Statement DAC (C10 Conductor, C10 Master DAC, 4 chassis)

    • C10 Statement Mono DAC (C10 Conductor, C10 Master DAC, Mono PSUs, 5 chassis)

    • T10 Time Reference

    • D10 Reference Transport

  • Color: Silver (standard), Anthracite or Champagne (option)

  • Dimensions: 440 x 440 x 133 mm (W x D x H), all units (DAC, Power Supply)

  • Weight: 20kg (DAC) + 23kg (power supply)

Digital input

  • Type:

    • 1x CH Link HD, 1x AES/EBU (XLR), 1x S/PDIF (RCA), 1x S/PDIF (TOSLINK) per Digital input board (1x standard)

    • 1x USB type B per USB input board (optional)

    • 1x RJ-45 on Streaming HD input board (optional)

  • Sampling rate:

    • CH Link HD: PCM 44.1kHz to 768kHz, DSD 2.8224MHz to 22.5792MHz

    • S/PDIF, AES/EBU: PCM 44.1kHz to 192kHz, DSD 2.8224MHz (DoP format)

    • Ethernet: PCM 44.1kHz to 768kHz, DSD 2.8224MHz to 22.5792MHz

    • USB:  PCM 44.1kHz to 384kHz, DSD 2.8224MHz to 5.6448MHz (DoP format)

  • Bit depth: PCM 16 to 32 bit, DSD 1 bit

  • MQA: Full MQA decoding (unfolding and rendering) at 24bit/705.6kHz or 768kHz

  • File Format:

    • PCM: WAV, AIFF, FLAC, ALAC, AAC and MP3

    • DSD: DSF and DFF

  • Services:

    • Local: UpnP/DLNA, Roon ready, Audirvana compatible

    • Streaming: Qobuz connect, Tidal connect, Web radio

DAC

  • Conversion type: DSQ R-2R, 24 bit /  2.8224 MHz, 8 DAC per channel

  • Upsampling filter: Proprietary ultra-short, low-ringing, time-optimized, synchronous, 32-bit fixed-point PEtER algorithm

  • Clocking option: clock master or synchronization to reference clock or optical disc transport

Analog Output

  • Type: 1x Balanced XLR, 1x single-ended RCA per channel

  • Bandwidth: DC to 155kHz (-3dB)

  • Signal-to-noise ratio (@ 20Hz-20kHz, A-weighted):

    • >121dB, High output level

    • >120dB, Mid output level

    • >117dB, Low output level

    •

C10 Statement DAC

A New Statement in Digital
The Foundation of the Ultimate Digital Front End

As CH Precision’s flagship DAC, the C10 Statement DAC stands at the summit of the company’s digital work. It is complete in concept and uncompromising in execution. Yet it also remains part of CH Precision’s larger modular ethos. Owners of the C10 Reference DAC may advance to the C10 through the addition of the Conductor, extending an already exceptional platform into CH Precision’s statement digital model. From there, the C10 Mono Statement DAC adds a second dedicated power supply, carrying the architecture to its most complete expression.

​

That continuity matters. It reflects a philosophy in which advancement is additive, disciplined, and structurally meaningful. Nothing is discarded for effect. Everything is elevated through deeper precision.

​

The C10 Statement DAC is therefore both culmination and foundation: the fullest expression of CH Precision’s digital invention, and the basis of an ultimate front end built to preserve the temporal truth of music.

Specifications

General

  • Type: Dual-chassis digital-to-analog converter

  • Options:

    • Additional digital input HD board

    • USB audio board

    • Ethernet streaming HD board

    • Clock sync board

  • Upgrade path:

    • D10 Reference Transport

    • C10 Statement Mono DAC—Dual mono master DAC with seperate PSUs (5 chassis)

    • Reference clock (T10)

  • Color: Silver (standard), Anthracite or Champagne (option)

  • Dimensions: 440 x 440 x 133 mm (W x D x H), all units (DAC, Conductor, Power Supply)

  • Weight: 20kg (DAC, conductor) + 23kg (power supply)

Digital input

  • Type:

    • 1x CH Link HD, 1x AES/EBU (XLR), 1x S/PDIF (RCA), 1x S/PDIF (TOSLINK) per Digital input board (1x standard)

    • 1x USB type B per USB input board (optional)

    • 1x RJ-45 on Streaming HD input board (optional)

  • Sampling rate:

    • CH Link HD: PCM 44.1kHz to 768kHz, DSD 2.8224MHz to 22.5792MHz

    • S/PDIF, AES/EBU: PCM 44.1kHz to 192kHz, DSD 2.8224MHz (DoP format)

    • Ethernet: PCM 44.1kHz to 768kHz, DSD 2.8224MHz to 22.5792MHz

    • USB:  PCM 44.1kHz to 384kHz, DSD 2.8224MHz to 5.6448MHz (DoP format)

  • Bit depth: PCM 16 to 32 bit, DSD 1 bit

  • MQA: Full MQA decoding (unfolding and rendering) at 24bit/705.6kHz or 768kHz

  • File Format:

    • PCM: WAV, AIFF, FLAC, ALAC, AAC and MP3

    • DSD: DSF and DFF

  • Services:

    • Local: UpnP/DLNA, Roon ready, Audirvana compatible

    • Streaming: Qobuz connect, Tidal connect, Web radio

DAC

  • Conversion type: DSQ R-2R, 24 bit /  2.8224 MHz, 8 DAC per channel

  • Upsampling filter: Proprietary ultra-short, low-ringing, time-optimized, synchronous, 32-bit fixed-point PEtER algorithm

  • Clocking option: clock master or synchronization to reference clock or optical disc transport

Analog Output

  • Type: 1x Balanced XLR, 1x single-ended RCA per channel

  • Bandwidth: DC to 155kHz (-3dB)

C10 Statement Mono DAC

The Summit of CH Precision Digital Playback.

The C10 Statement Mono Digital System is the fullest expression of CH Precision’s digital architecture: a dual-mono Statement DAC platform conceived for systems where digital conversion is the central act of musical reconstruction.

​

Its foundation is engineering discipline. Every critical element has been developed in-house: digital processing, clocking strategy, conversion topology, analog output, power supply, mechanical structure, firmware, and control interface. Nothing outsourced. Nothing treated as generic. Each stage designed as part of a single coherent system whose purpose is to preserve timing, resolution, dynamic integrity, and musical continuity from input to output.

​

That discipline reflects a lineage unusually deep in digital audio. CH Precision’s core engineering team includes figures whose work helped shape modern high-end digital playback through advanced DAC design, sample-rate conversion, clock-domain management, digital filtering, and proprietary signal-processing. In the C10 Statement Mono, that experience is not presented as legacy. It is brought forward as architecture.

The Pinnacle of Digital Audio

As CH Precision’s ultimate digital front end, the C10 Statement Mono Digital System stands at the summit of the company’s work in digital playback. It gathers the full C10 architecture—PEtER spline-based reconstruction, DSQ R-2R conversion, channel-dedicated power, T10 reference timing, and, optionally, the D10 Reference Transport—into a single system conceived not as an assembly of components, but as a complete instrument for the preservation of musical time.



Its achievement is not one of scale alone, but of coherence. Each element serves the same governing purpose: to reduce uncertainty, preserve temporal integrity, and allow the musical event to emerge with its natural structure intact. Processing, conversion, power, clocking, and optional disc playback are not treated as separate acts, but as interdependent parts of a unified architecture.



That continuity reflects CH Precision’s larger modular ethos. Advancement is additive, disciplined, and structurally meaningful. Nothing is discarded for effect. Nothing is multiplied for spectacle. Each stage is elevated through greater isolation, deeper precision, and more exact control of the time domain.



The C10 Statement Mono Digital System is therefore both culmination and declaration: the fullest realization of CH Precision’s digital architecture, and a reference system built to preserve the temporal truth of music.

Digital input

  • Type:

    • 1x CH Link HD, 1x AES/EBU (XLR), 1x S/PDIF (RCA), 1x S/PDIF (TOSLINK) per Digital input board (1x standard)

    • 1x USB type B per USB input board (optional)

    • 1x RJ-45 on Streaming HD input board (optional)

  • Sampling rate:

    • CH Link HD: PCM 44.1kHz to 768kHz, DSD 2.8224MHz to 22.5792MHz

    • S/PDIF, AES/EBU: PCM 44.1kHz to 192kHz, DSD 2.8224MHz (DoP format)

    • Ethernet: PCM 44.1kHz to 768kHz, DSD 2.8224MHz to 22.5792MHz

    • USB:  PCM 44.1kHz to 384kHz, DSD 2.8224MHz to 5.6448MHz (DoP format)

  • Bit depth: PCM 16 to 32 bit, DSD 1 bit

  • MQA: Full MQA decoding (unfolding and rendering) at 24bit/705.6kHz or 768kHz

  • File Format:

    • PCM: WAV, AIFF, FLAC, ALAC, AAC and MP3

    • DSD: DSF and DFF

  • Services:

    • Local: UpnP/DLNA, Roon ready, Audirvana compatible

    • Streaming: Qobuz connect, Tidal connect, Web radio



DAC

  • Conversion type: DSQ R-2R, 24 bit /  2.8224 MHz, 8 DAC per channel

  • Upsampling filter: Proprietary ultra-short, low-ringing, time-optimized, synchronous, 32-bit fixed-point PEtER algorithm

  • Clocking option: clock master or synchronization to reference clock or optical disc transport

T10 Time Reference

Absolute Temporal Precision
Mastering the Moment

The T10’s performance begins with its extraordinary oscillator section. At its heart is a precision oven-controlled crystal oscillator (OCXO), encased in a massive solid aluminum block to ensure maximum thermal stability. This housing is further suspended on a bed of soft silicone gel, isolating it from mechanical vibration and environmental interference. The result is an internal timing core of exceptional consistency, critical for maintaining the ultra-low phase noise that defines the T10’s sonic contribution.

​

Where conventional word-clock systems rely on crystals cut to the 44.1 kHz or 48 kHz families, CH Precision takes a different path. The T10 generates a 10 MHz reference that is then divided down digitally, using an advanced all-digital PLL. This approach begins with a cleaner spectrum and produces measurably lower in-band jitter than “direct” audio-rate crystals, no matter how neat their integer relationships appear on paper. The result is not just mathematical accuracy but time-domain stability, exactly the quality to which the ear is most sensitive. Published data shows the T10 operating at femtosecond-level jitter (10⁻¹⁵ s), roughly 1,000× more precise than the picosecond-level performance typical of most competing designs. In practice, that translates into lower noise, sharper transients, and greater spatial coherence.

​

This precision extends to the T10’s output stage. Six individually buffered outputs are provided, each independently configurable to deliver either a 10 MHz sine or square wave signal at selectable 1 V or 500 mV peak-to-peak levels. These transformer-coupled outputs are routed through 75 Ω BNC coaxial connectors, a design that minimizes phase distortion and allows the T10 to synchronize multiple devices simultaneously without crosstalk or degradation. Unlike word-clock systems limited to distributing 44.1/48 kHz signals, the T10 can integrate an entire digital chain (whether a C10 Master DAC, D10 Reference Transport, or even third-party sources that accept a 10 MHz input) into one coherent time domain.

Specifications

General

  • Type: Reference Clock

  • Options: GPS synchronization module

  • Color: Silver (standard), Anthracite or Champagne (option)

  • Dimensions: 440 x 440 x 133 mm (W x D x H)

  • Weight: 20kg

  • Type: 6x BNC

  • Impedance: 75Ω

  • Level: 500mVp-p or 1Vp-p, loaded with 75Ω

  • Waveform: Sine or Square wave

Performance

  • Phase noise:

    • < -105dBc/Hz @ 1Hz

    • < -125dBc/Hz @ 10Hz

    • < -145dBc/Hz @ 100Hz

    • < -155dBc/Hz @ 1kHz

    • < -165dBc/Hz @ 10kHz and above

  • Nominal frequency:

    • 10MHz, +/- 20ppb, internal mode

    • 10MHz, +/- 1ppb maximum, GPS option locked for 1 hour

  • External Reference Input level

    • 5V TTL

    • 50Ω BNC input

  • Accepted Reference input frequencies: 1 PPS, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 100kHz

  • Reference input frequency deviation maximum: +/- 0.1ppm

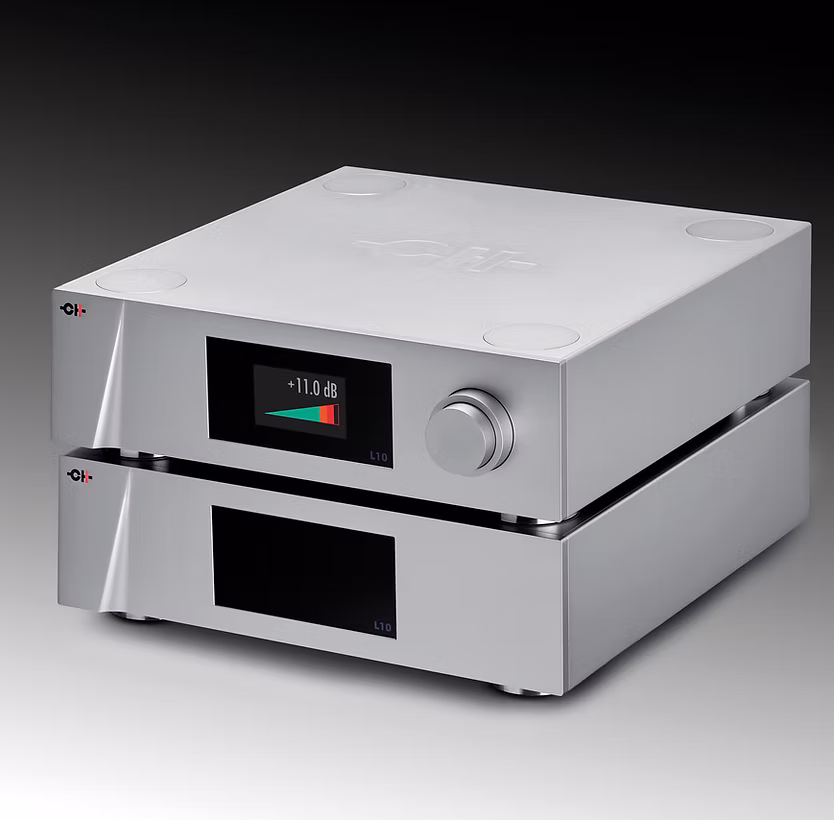

L10 Reference Line Preamplifier

Redefining the Reference: The Evolution of Precision

With the L1 Line Preamplifier, CH Precision set a new benchmark for musical transparency, realism, and control: a reference point that continues to define the category. To surpass it, the CH engineering team returned to first principles, drawing on decades of collective expertise to reimagine the Line Preamplifier from within.

​

The L10 Reference Line Preamplifier retains the essential architecture of its sibling: fully discrete, balanced circuitry, ultra-short signal paths, software-defined control, and advanced power regulation. But every element has been reassessed and refined. Signal paths are even shorter and cleaner. Every component, no matter how small, has been reconsidered and, where possible, improved. A new, purpose-built power supply delivers significantly greater regulation and storage. Feedback topology is now user-selectable, and proprietary software compensates for DC offset between connected components, pushing performance even further.

​

The result is not merely an evolution of the L1, but a redefinition of what a line preamplifier can be. With extraordinary resolution, a vanishingly low noise floor, and a more natural tonal balance, the L10 conveys the full expressive range of music with effortless command. Its emotional immediacy, spatial precision, and tonal realism bring recordings to life with uncanny presence. True to CH Precision’s design philosophy, it also offers extensive configurability, upgradeability to a four-chassis monaural topology, and a full-function control interface, delivering an experience as complete in execution as it is compelling in sound.

Specifications

General

  • Type: Dual-chassis preamplifier

  • Upgrade path: Addition of a 2nd L10 for dual monaural operation

  • Color: Silver (standard), Anthracite or Champagne (option)

  • Dimensions: 440 x 440 x 133 mm (W x D x H), both units (preamplifier, power supply)

  • Weight: 19kg (preamplifier) + 23kg (power supply)

Analog input

  • Type: 4x balanced XLR, 2x single-ended RCA, 2x single-ended BNC per channel

  • Impedance: 94kΩ or 600Ω (balanced), 47kΩ or 300Ω (single-ended)

  • Level: 16VRMS maximum (balanced), 8VRMS maximum (single-ended)

Analog Output

  • Type: 2x balanced XLR, 1x single-ended RCA, 1x single-ended BNC per channel

  • Level: 20VRMS maximum (balanced), 10VRMS maximum (single-ended)

  • Bandwidth: DC to >1MHz (-3dB), volume=0dB, 0dBu input signal

  • Total Harmonic Distortion + Noise: <0.0008% (@ 22Hz-22kHz, A-weighted)

  • Signal-to-noise ratio: >141dB (@ 20Hz-20kHz, A-weighted)

M10 Reference Power Amplifier

Power Refined. Precision Redefined.

Superseding a benchmark is never a small task, especially when that benchmark is the M1.1 Power Amplifier, a design that quickly earned its place as a modern reference in both power and versatility. With the M10 Reference Power Amplifier, CH Precision undertook not just an upgrade, but a reinvention: a ground-up reassessment of every circuit, every board layout, every material choice, and every performance parameter. The result is not merely a more powerful amplifier, but a fundamentally more revealing one. From a newly developed input stage to a reengineered signal path and a doubled power supply capacity, the M10 delivers extraordinary resolution at low levels, effortless headroom at the peaks, and a natural tonal continuity across the full dynamic range.

​

True to CH Precision’s design philosophy, it is also modular and upgradable (configurable as a stereo amplifier, a monobloc, or a fully bridged unit) designed to evolve with the system and the listener. Its ability to preserve spatial integrity, harmonic structure, and emotional intensity (regardless of scale) is not only technically astonishing, but musically transformative.



The M10 is more than a power amplifier—it is CH Precision’s vision of adaptable, precision-driven performance. Designed as a modular platform, it supports stereo, bridged, monobloc, and biamp configurations, all accessible without hardware changes or added cost. It evolves with your system, delivering power that is as refined as it is responsive.

​

Its dual-chassis architecture isolates the amplification stages from the power supply, minimizing noise while ensuring thermal stability and long-term composure. Twin 1800 VA transformers, supported by a carefully structured capacitor bank totaling approximately one farad (1,000,000 µF), deliver current with exceptional speed, control, and reserve. Adjustable global feedback—set in precise 1 percent increments—along with independent bi-amp calibration, allows the M10 to be tuned not only to the system it drives, but to the musical demands placed upon it.

​

The result is power shaped by precision: resolution, scale, and tonal realism delivered with absolute authority and emotional clarity.

Specifications

General

  • Type: Dual-chassis 2-channel power amplifier

  • Options: 1 or 2 input board (for monaural or stereo operation)

  • Upgrade path: 1 stereo M10 to 2 monaural M10

  • Modes: Stereo, Monaural, Bridged, Bi-amp

  • Color: Silver (standard), Anthracite or Champagne (option)

  • Dimensions: 440 x 510 x 285 mm (W D x H), both units (amplifier + Power Supply)

  • Weight: 53kg (amplifier) + 78kg (power supply)

Analog input

  • Type: 1x Balanced XLR, 1x single-ended RCA, 1x single-ended BNC per channel

  • Impedance: 94kΩ or 600Ω (balanced), 47kΩ or 300Ω (single-ended)

  • Level: 3.6VRMS nominal (balanced), 1.8VRMS nominal (single-ended)

Analog Output

  • Connectors: Spade/Banana sockets, 2 sets in parallel per channel

  • Bandwidth (@ 1WRMS/8Ω, -3dB):

    • DC to 500kHz (input low-pass filter off)

    • DC to 120kHz (input low-pass filter on)

  • Total Harmonic Distortion + Noise (@ 22Hz-80kHz, 50WRMS/8Ω):

    • <0.01% (100% local feedback)

    • <0.002% (100% global feedback)

  • Signal-to-noise ratio:

    • >132dB (stereo, bi-amp, monaural)

    • >135dB (bridged)

Power (@ THD+N < 0.1%, 1kHz test signal)

Stereo / Bi-Amp

8 Ohms: 2x 300W RMS

4 Ohms: 2x 550W RMS

2 Ohms: 2x 900W RMS

Monaural—

8 Ohms: 300W RMS

4 Ohms: 600W RMS

2 Ohms: 1000W RMS

1 Ohm: 1600W RMS

Bridged—

8 Ohms: 1100W RMS

4 Ohms: 1700W RMS

2 Ohms: 2500W RMS

P10 Reference Phono Preamplifier

The Vinyl Experience, Redefined

The P10 Reference Phono Preamplifier represents CH Precision’s most ambitious statement in vinyl playback: a phono stage conceived to stand beside the L10 Reference Line Stage and M10 Reference Power Amplifier as a definitive reference in analog reproduction. Building on the legacy of the P1, long regarded as a benchmark for adjustability and musical integrity, the P10 advances the state of the art technically, architecturally, and sonically.

​

Its twin-chassis design pairs a massive, dedicated power supply with a newly developed three-stage gain architecture that drives the noise floor to unprecedented lows while expanding dynamic, spatial, and tonal resolution. Four fully independent phono inputs (two trans-impedance current-sensing and two voltage-sensing MC/MM circuits) accommodate even the most complex analog front ends. Finer gain increments, user-selectable feedback structures, advanced loading options, and seven EQ curves allow each input to be matched precisely to your cartridge, record label, and system. From the refined control interface to the intelligent setup wizard, every element serves a single purpose: to reveal the full expressive potential embedded in the vinyl medium

Specifications

General

  • Type: Dual-chassis phonostage

  • Options: EQ curves module pair to play EMI, Columbia (LP), Decca (London), DGG (Teldec), NARTB (NAB), Capitol/AES and Philips records

  • Upgrade path: Addition of a 2nd P10 for dual monaural operation

  • Color: Silver (standard), Anthracite or Champagne (option)

  • Dimensions: 440 x 440 x 133 mm (W x D x H), both units (phonostage, power supply)

  • Weight: 19kg (phonostage) + 23kg (power supply)

Analog input

  • Type (each available on both XLR and RCA connectors):

    • 2x MC current-sensing inputs,

    • 2x MM/MC voltage-sensing inputs

  • Impedance:

    • MC: < 100mΩ, virtual ground

    • MM/MC: User selectable, 5Ω to 100kΩ

  • Gain (at 1kHz, on single-ended output – balanced output is 6dB more):

    • MC: +56 dB to +77 dB in 3 dB steps (10Ω internal impedance cartridge)

    • MM/MC: +42 dB to +75 dB in 3 dB steps

  • Equivalent input noise (20Hz-20kHz, A-weighted):

    • MC: < -144 dBu / 1Ω termination,  any gain

    • MM/MC: < -142 dBu / 1Ω termination, gain +54 to +75 dB

  • Playback EQ curve accuracy: +/- 0.1dB

Analog Output

  • Type: 1x balanced XLR, 1x single-ended RCA, 1x single-ended BNC per channel

  • Level: 8VRMS maximum (balanced), 4VRMS maximum (single-ended)

  • Total Harmonic Distortion + Noise:

    • < 0.001%, MM/MC voltage input, gain < 50dB

    • unmeasurable (below noise floor) for MM/MC voltage input, gain > 50dB

    • unmeasurable (below noise floor) for MC current input, any gain
