Anthem MDX-12 Multi-Zone Power Amplifier Review

The Anthem MDX-12 is a compact, high-performance 12-channel (6-zone) distribution amplifier designed for multi-room audio systems and as a channel expander for home theater setups. It sits in Anthem’s MDX series as the more straightforward “pure power” option, forgoing the advanced matrix switching and ARC Genesis room correction found in the MDX-8 and MDX-16 in favor of higher power output and simplicity.

Design and Build

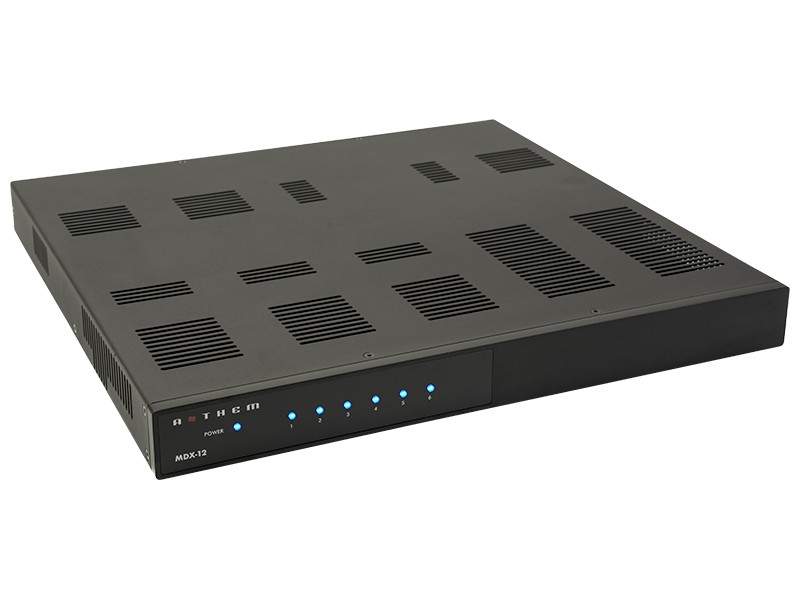

The MDX-12 occupies just a single 1U rack space (approximately 17″ wide × 1.75–2.25″ high × 16.6–18.25″ deep) and weighs around 16–16.6 lbs (7.3 kg). It includes rack-mount ears and feet. Construction is solid and professional, with a clean front panel featuring subtle blue status LEDs that are unobtrusive even in dark rooms.

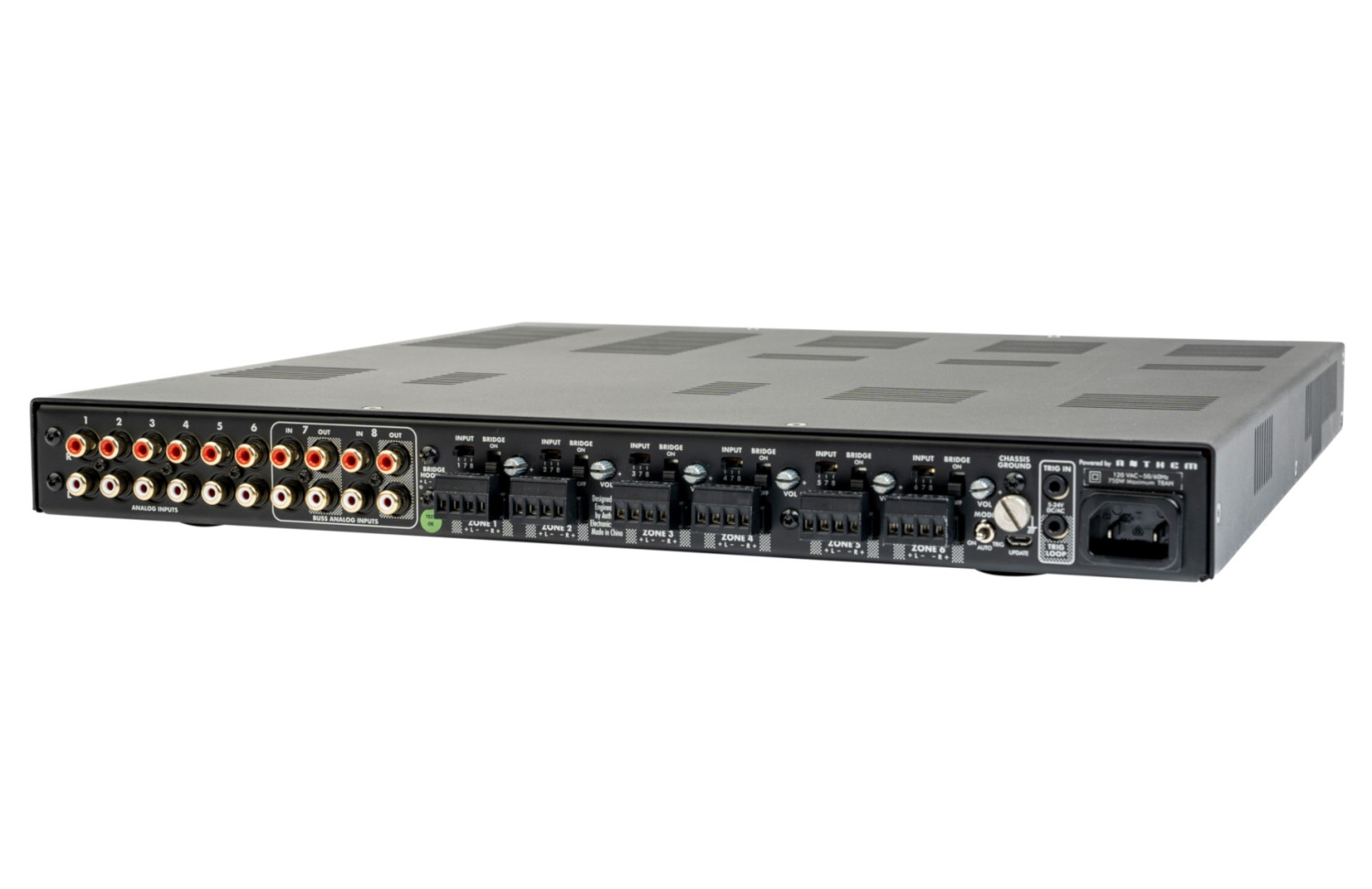

Rear-panel connectivity is installer-friendly: removable Phoenix/Euroblock speaker terminals (accepting up to 12 AWG wire) make wiring far easier than traditional binding posts in tight racks or cabinets. The unit is fan-cooled and runs cool under normal use.

Key Specifications and Features

• Channels/Zones: 12 channels / up to 6 stereo zones
• Power Output:
  • 75 W RMS per channel into 8 Ω
  • 150 W RMS per channel into 4 Ω
  • Bridged (pairs): 280 W into 8 Ω or 4 Ω
• Amplification: High-efficiency Class D with advanced load monitoring and protection
• Frequency Response: 20 Hz – 20 kHz (±0.4 to ±0.5 dB)
• THD: Extremely low (claimed as low as 0.002% in some documentation; <1% at rated power in official specs)
• Inputs: 6 dedicated stereo RCA pairs (one per zone) + 2 global/bus stereo RCA inputs that can be assigned to any zone
• Outputs: 6 pairs of Phoenix speaker connectors + 2 global RCA loop outputs for daisy-chaining
• Control: Per-zone gain adjustment, source selection switches, bridge mode switches; power modes (Auto-sense, Trigger, Continuous); 12 V trigger in/out
• Other: Auto-on signal sensing, protection circuitry, 3-year warranty

Unlike its siblings, the MDX-12 has no built-in digital matrix, DSP, or Anthem Room Correction (ARC). It is intended to be paired with an external matrix switcher, preamp, or multi-zone controller.

Performance and Sound

User and installer feedback is consistently positive. The MDX-12 delivers clean, detailed, and powerful sound with good dynamics and control. Bass is solid and well-defined, mids are non-fatiguing, and the overall presentation is described as clear and musical rather than clinical or harsh. It has plenty of current delivery and sounds more powerful than its conservative ratings suggest, even with multiple zones active.

It handles real-world speaker loads (including 4 Ω) confidently and remains quiet, with excellent signal-to-noise performance. Installation is straightforward thanks to the detachable speaker blocks and flexible input options. The global bus inputs and loop outputs make system expansion simple.

Pros

• Compact 1U design with high channel count and solid power
• Excellent build quality and installer-friendly Phoenix connectors
• Clean, detailed, powerful sound with low distortion
• Flexible per-zone gain, bridging, and input selection
• Runs cool and quiet
• Good value for a high-quality multi-zone amp
• Suitable for both distributed audio and home-theater channel expansion

Cons

• No built-in matrix switching or room correction (ARC is reserved for the higher MDX models)
• Analog-only inputs (no digital or network streaming)
• Limited independent control compared with fully networked multi-zone systems
• Fan cooling is present (though generally quiet)

Verdict

The Anthem MDX-12 is an outstanding choice for custom installers and homeowners who need reliable, high-quality multi-zone amplification without the complexity (or cost) of a full matrix/DSP solution. It delivers genuine Anthem performance — clean, powerful, and musical — in a slim, rack-friendly package that is easy to install and expand.

If you already have (or plan to use) an external matrix switcher or multi-zone preamp, the MDX-12 is one of the better pure power options in its class. For those wanting built-in ARC Genesis room correction and more advanced routing, step up to the MDX-8 or MDX-16. Highly recommended for multi-room systems and as a robust multi-channel amp for home theater expansion.
