ELAC Concentro 2.0 S503.2

R18,400.00

Technical Specifications
Height 400mm
Width 225mm
Depth 372mm
Weight 13.4kg
Type 3-Way Bass reflex
Woofer 1 x 180 mm Ø, AS-XR cone
Midrange 1 x 50 | 130 mm Ø, AS-XR AL cone
Tweeter JET 6
Crossover frequency 400 | 2600 Hz
Nominal/peak power handling 120 W | 200 W
Minimum impedance 4.8 Ω bei 120 Hz
Peak power handling 400 W
Frequency range (IEC 268-5) 34 – 50000 Hz
Sensitivity 87 dB / 2.83 V / m
Suitable for amplifiers from … to 4 – 8 Ω
Nominal impedance 4 Ω
Recommended amplifier power 60 – 500 W / channel
Finishes High-Gloss Black Lacquer, HighGloss White Lacquer High-Gloss Walnut Veneer
Accessories Bi-Wiring-jumper set, 3 DCR (Directivity Control Ring)

Description

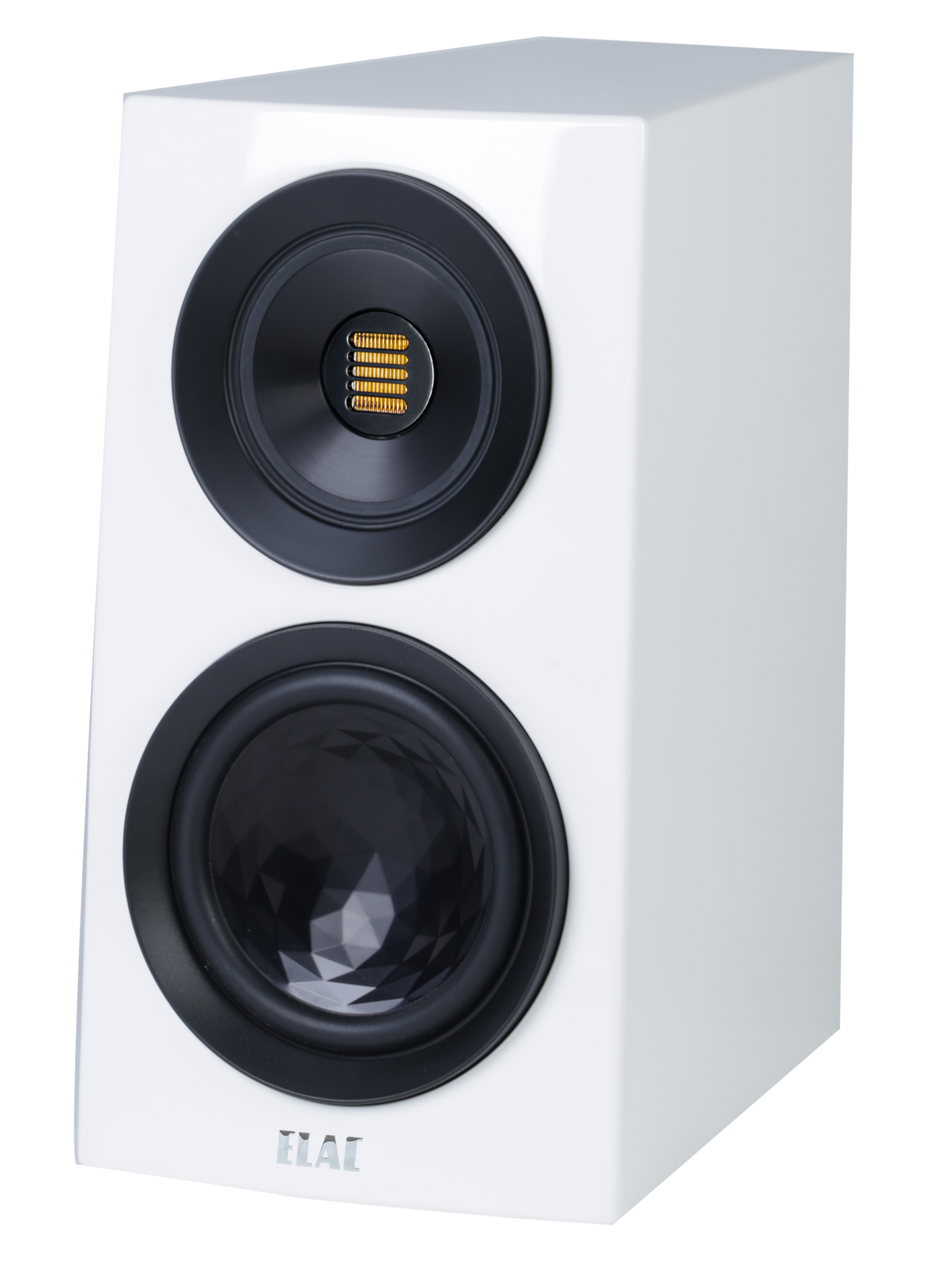

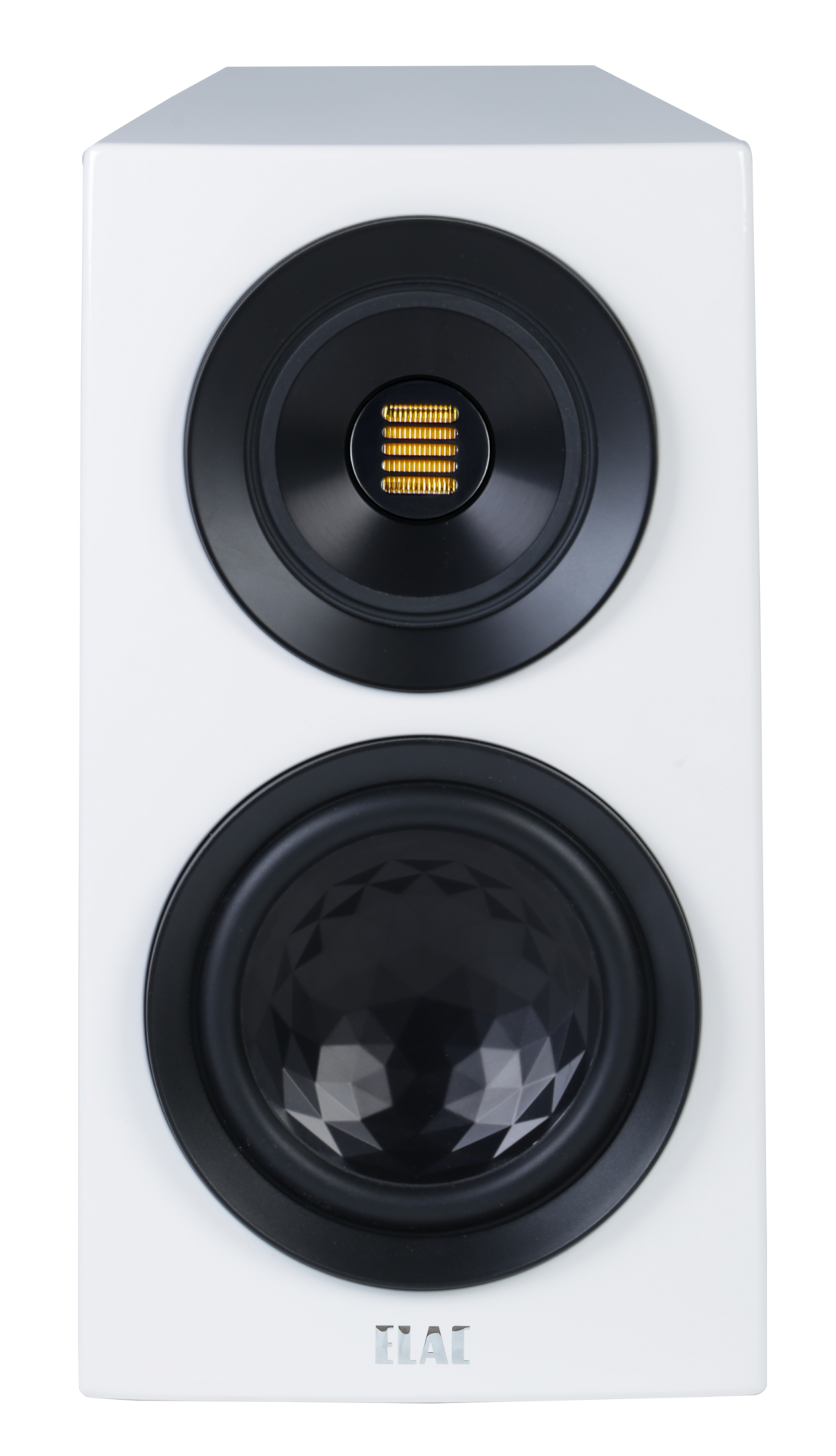

The name Concentro signifies the extraordinary in every respect. The compact Concentro S 503.2 masterfully delivers the ‘wow factor’ from a surprisingly small package.


Be in no doubt, the S 503.2 is a true Concentro in every respect. Design features and technical details that drove the success of the S 507 and S 509 are now combined in compact dimensions. The trapezoid basic shape, convex shaped baffle, and gently angled cabinet combine in a strikingly organic way to create a strong visual statement.

The extensive list of patented features and the revised woofer magnet system guarantee superlative sound. The effortless performance can be adjusted to suit the room acoustics. Close your eyes and you’ll instantly forget you’re listening to a compact speaker … all you hear is music.

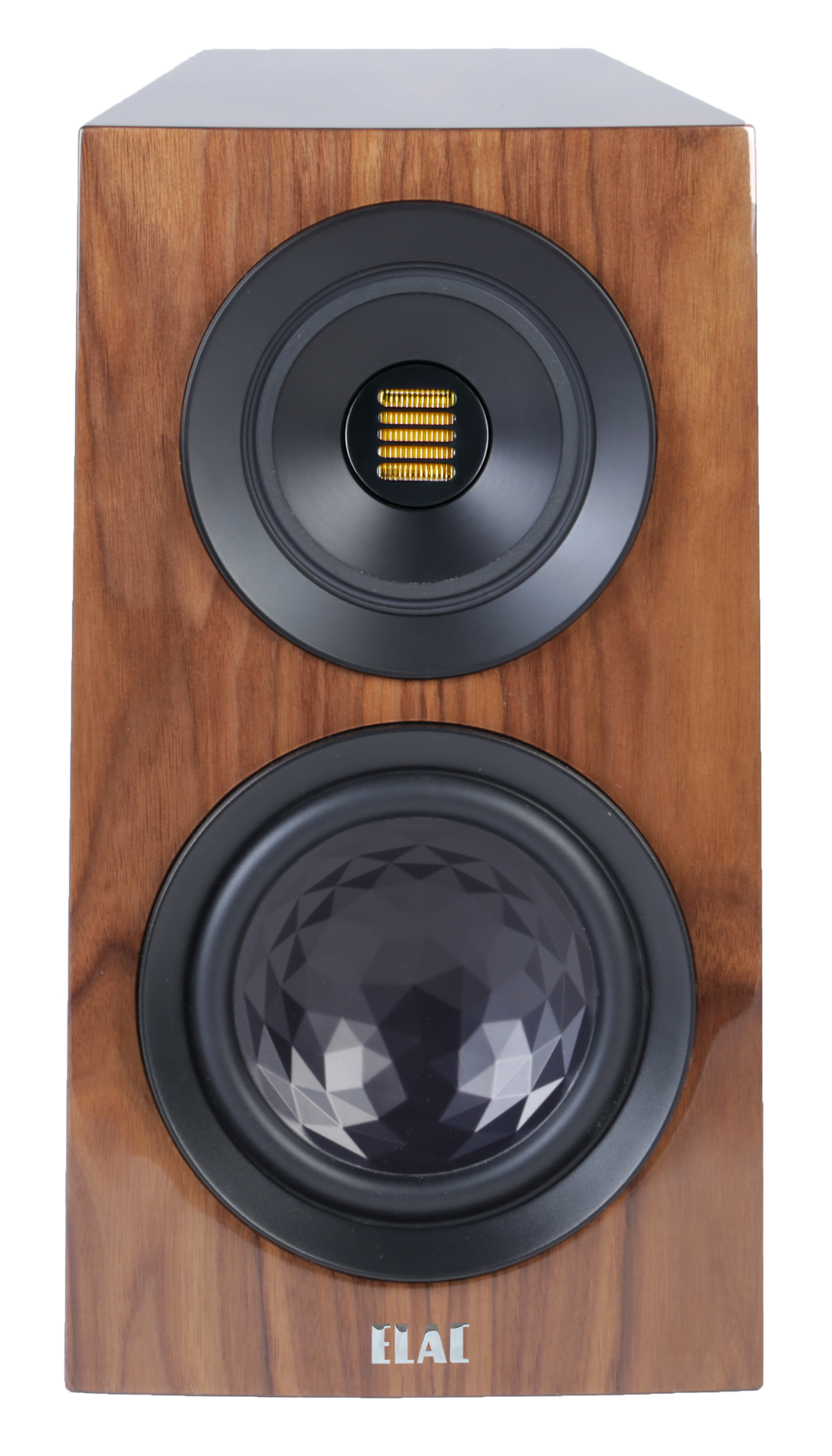

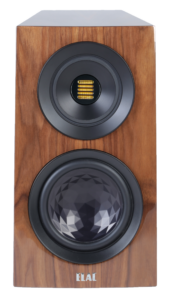

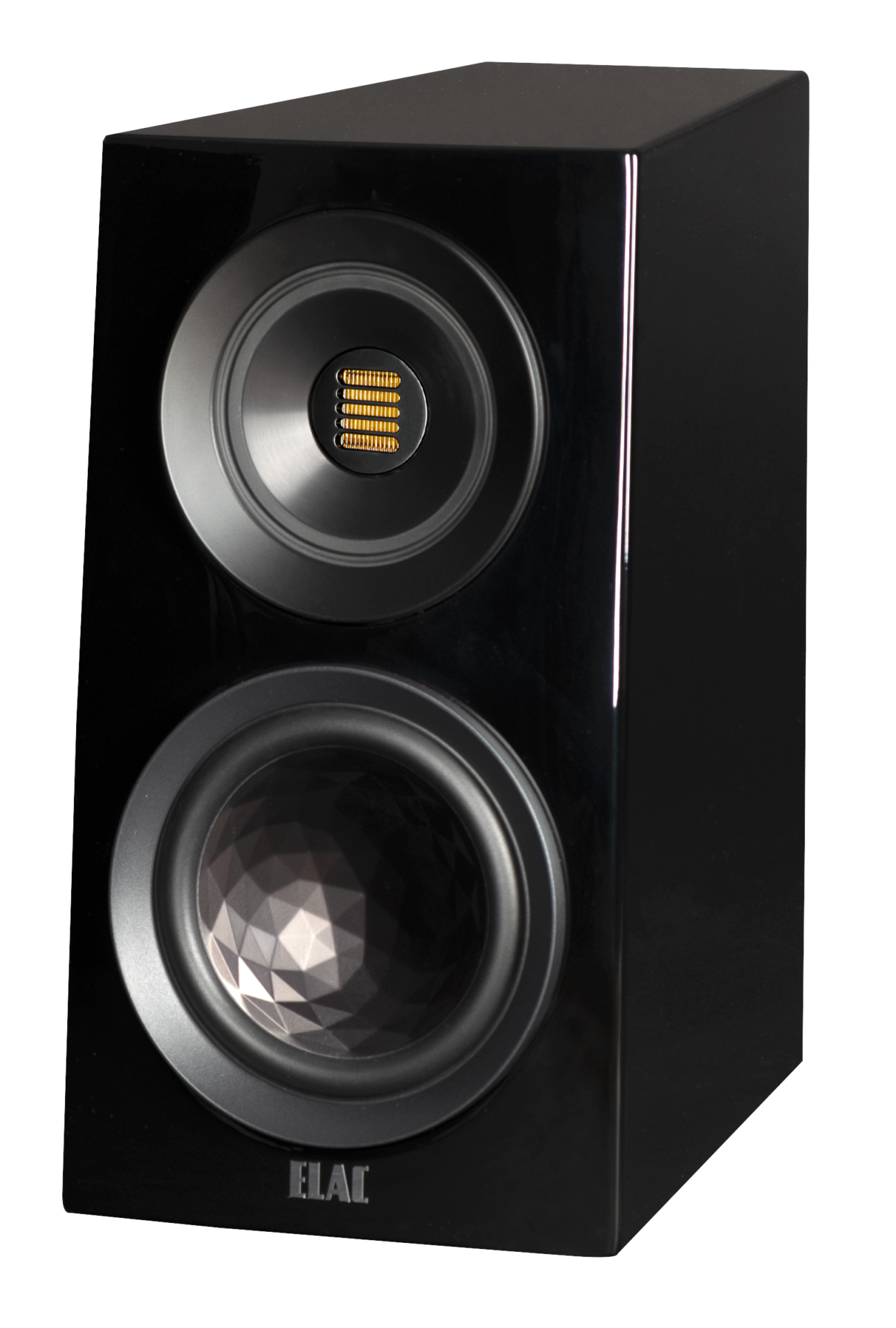

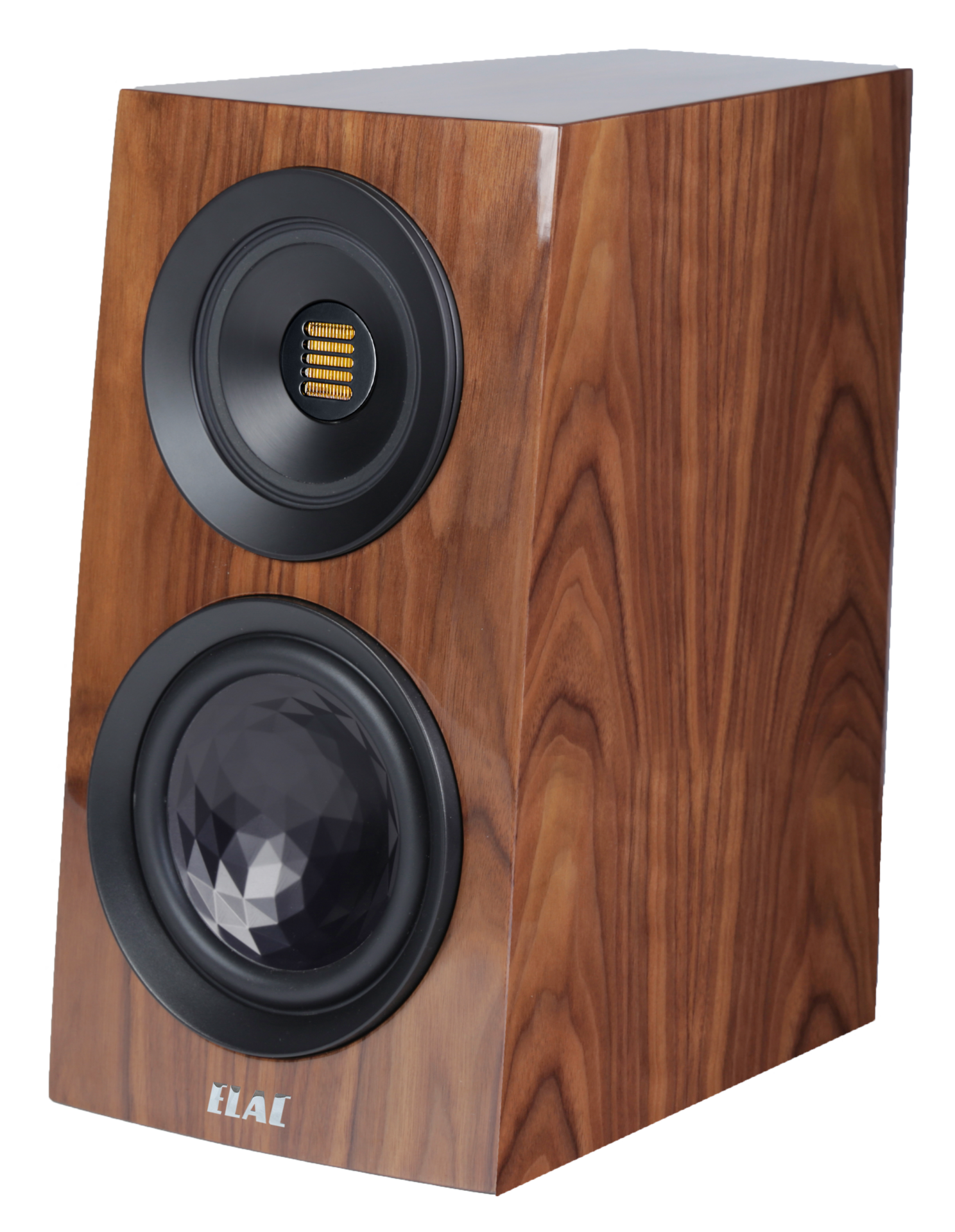

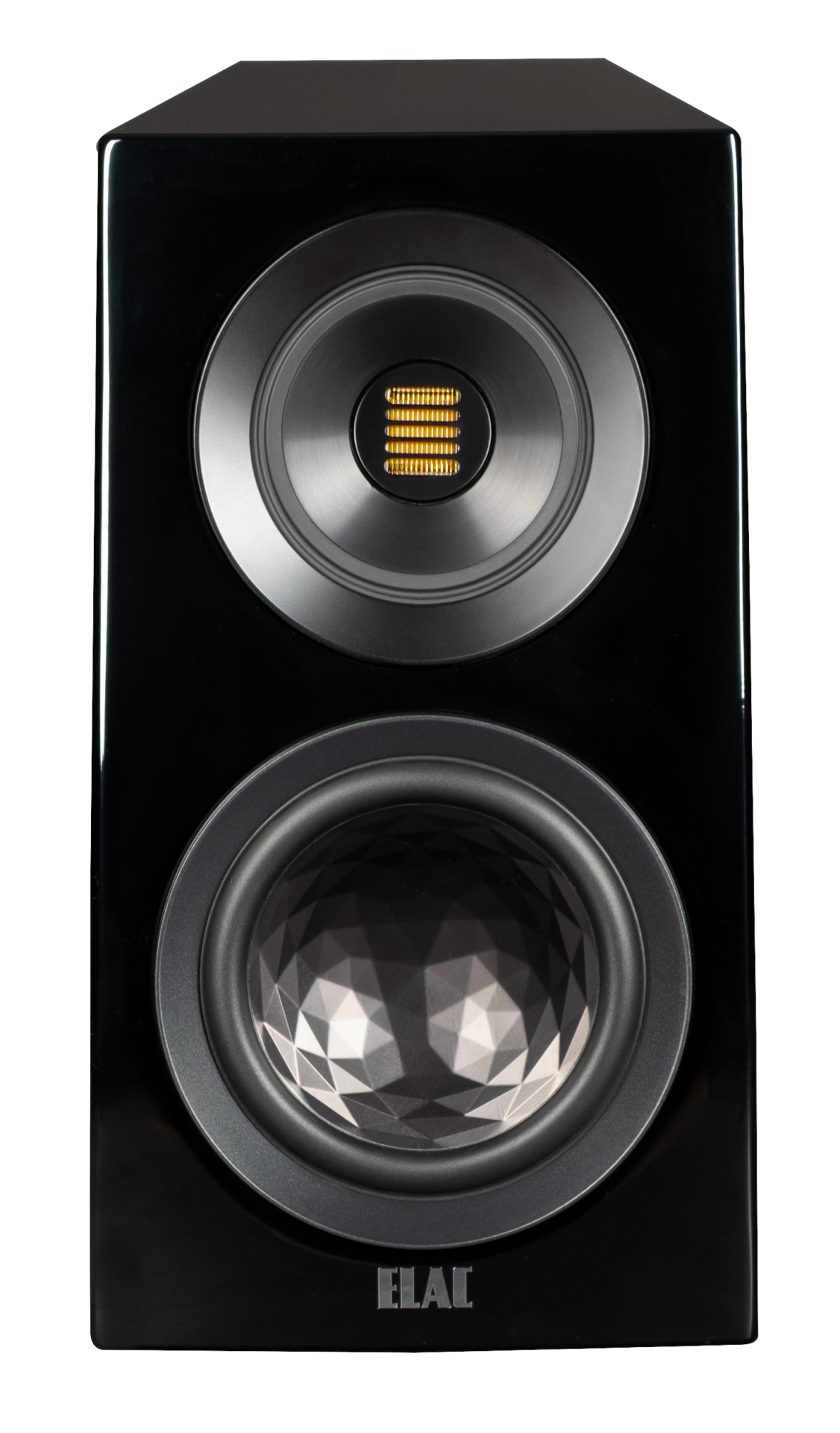

The Concentro S 503.2 is available in black and white high-gloss finishes and in high-gloss walnut veneer. The LS 100 stand specially developed for the Concentro S 503.2 is an available option.

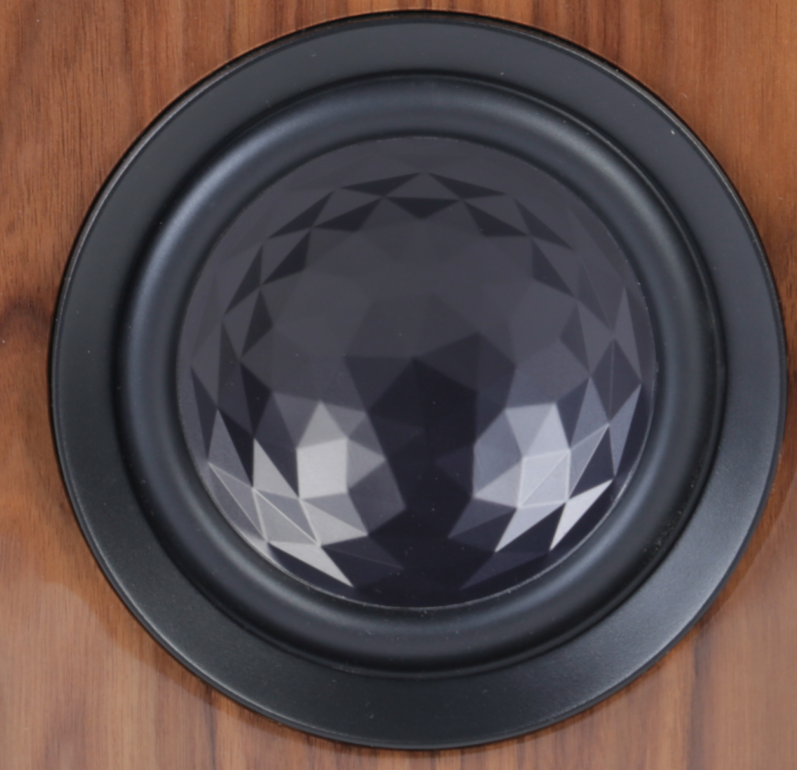

AS-XR technology

Unique, eye-catching, and acoustically ideal: the crystalline shape of the membrane provides the perfect balance of stiffness and damping.





Modern Hybrid Design

The progressive design elements from the Concentro Series combine with the clean lines of the Vela Series to create a strong visual presence.



StepX-JET

Since no two rooms are the same, midrange directivity can be adjusted using the exchangeable DCRs supplied.







High Gloss White and Black Finish : €7000 MSRP For a Pair

High Gloss Walnut Finish: €7800 MSRP For a Pair

PRICES SUBJECT TO CHANGE WITH IMPORTS
