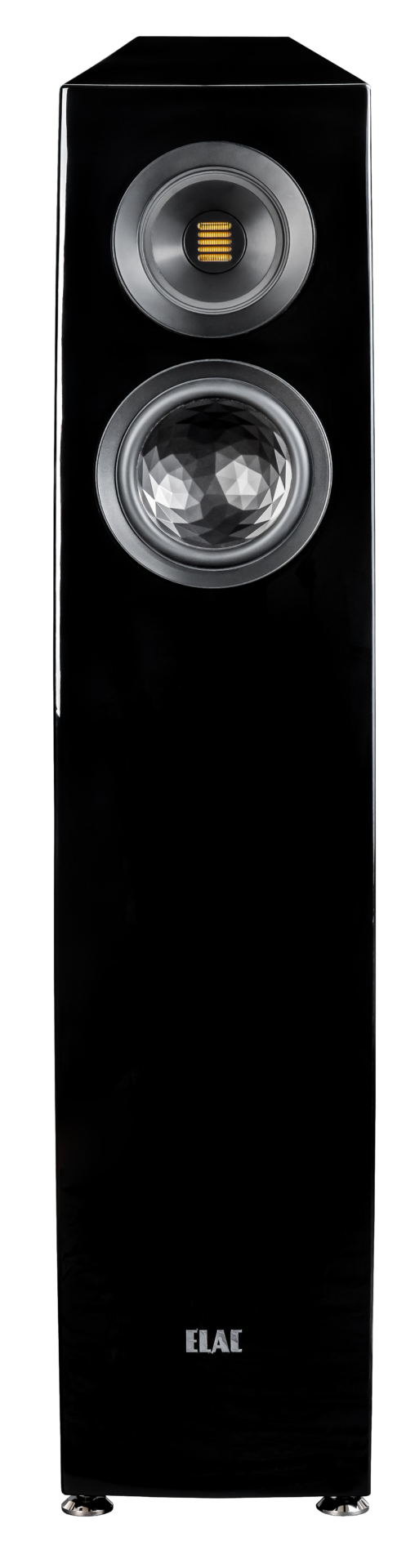

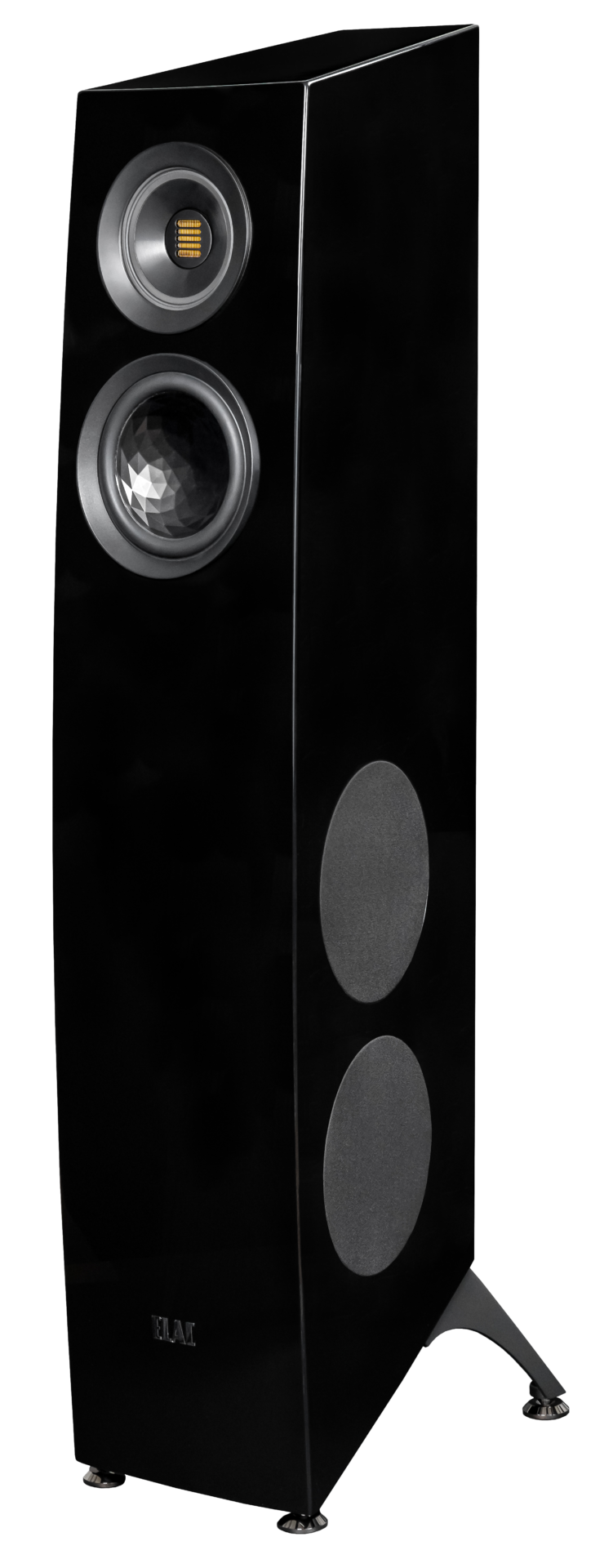

ELAC Concentro S509.2

Original price was: R444,930.00.Current price is: R355,944.00.

Technical Specifications
Height 1320 mm with Spikes / Washer
Width 325 mm with Spikes / Washer
Depth 460 mm with Spikes / Washer
Weight 42.8 kg
Type 4-Way bass reflex
Woofer 4 x 180 mm Ø, AS cone
Low-Midrange 1 x 180 mm Ø, AS-XR cone
High-Midrange 1 x 50 | 130 mm Ø AL cone
Tweeter 1x Jet6
Crossover frequency 120 | 400 | 2600 Hz
Nominal Power Handling 280W
Minimal impedance 3.2 Ω at 360 Hz
Peak power handling 340 W
Frequency range (IEC 268-5) 22 – 50000 Hz
Sensitivity 88 dB / 2,83 V / m
Suitable for amplifiers from … to 4 – 8 Ω
Nominal Impedance 4 Ω
Recommended amplifier power 60 – 600 W / channel

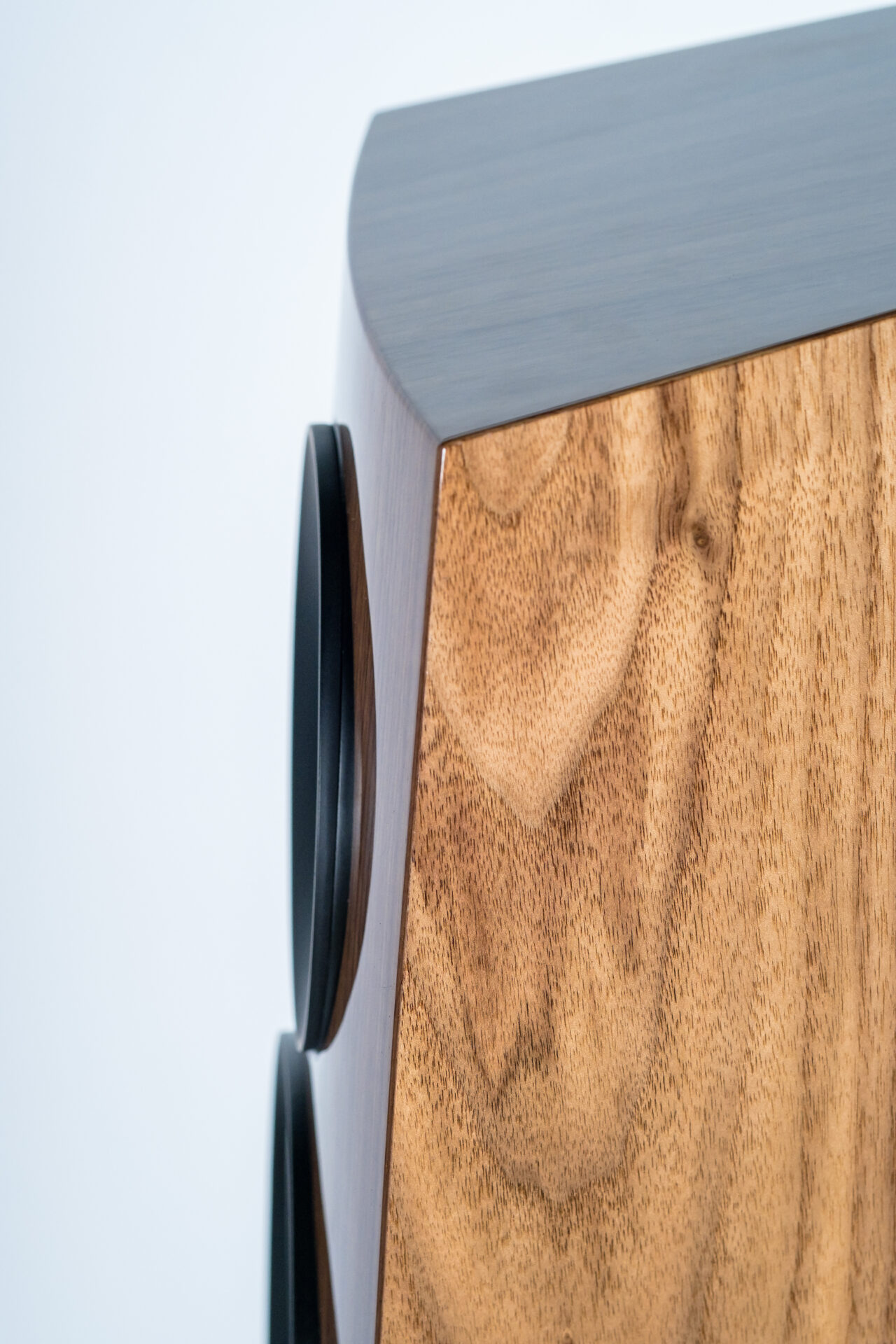

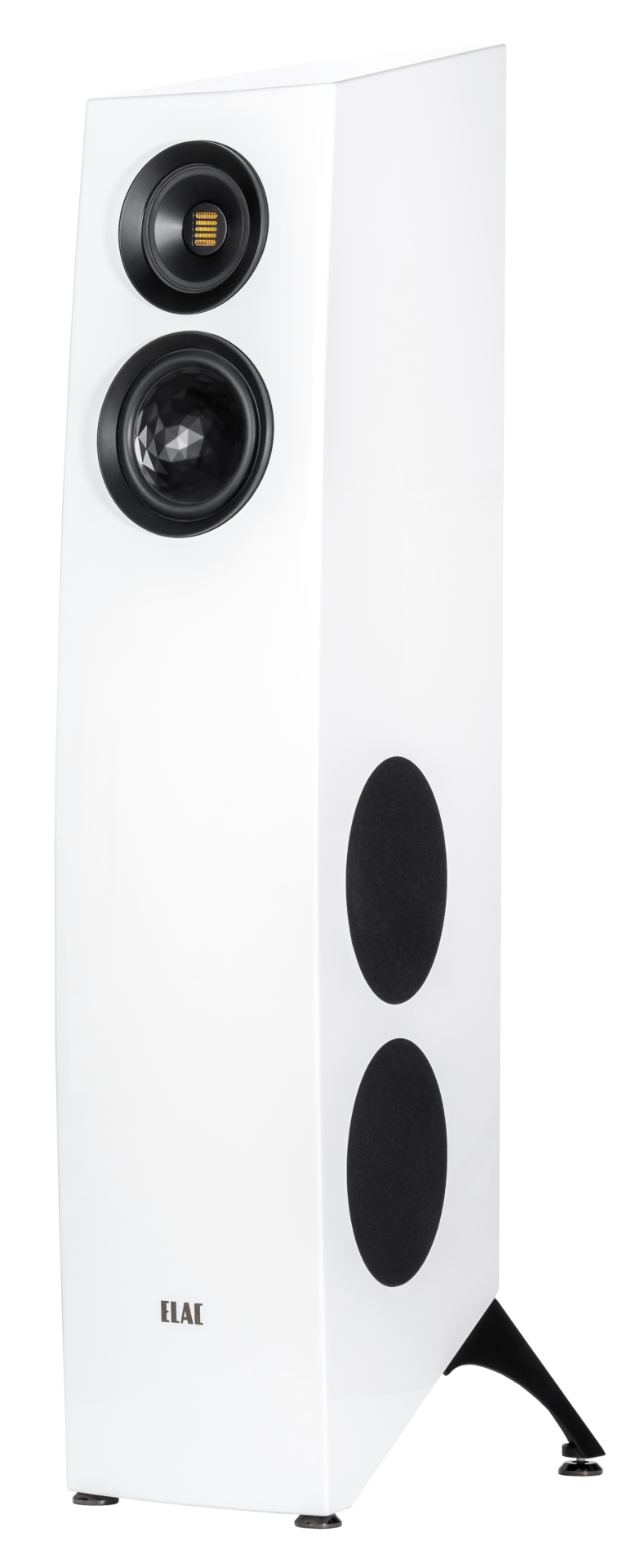

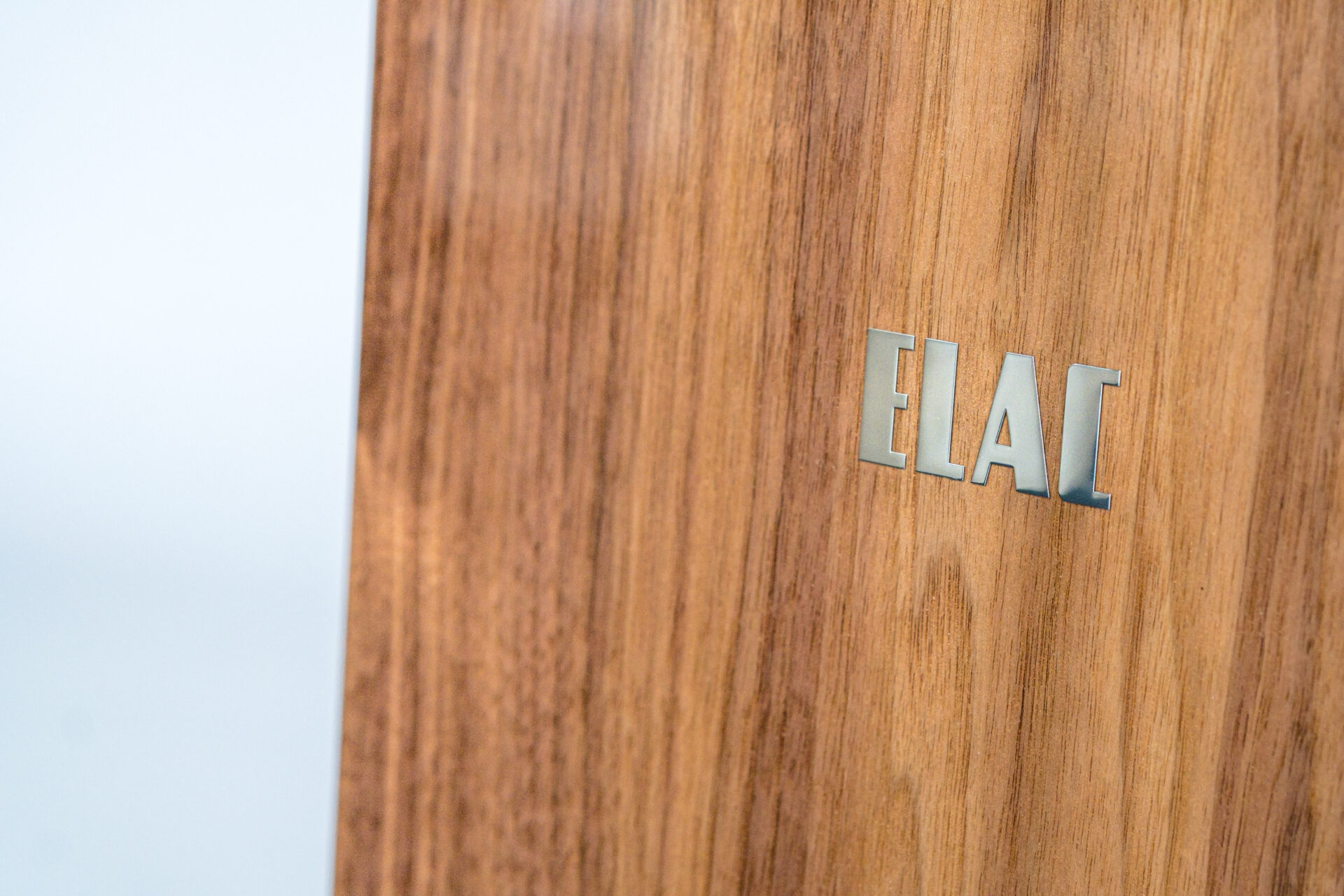

Finishes Black High Gloss, White High Gloss, Walnut High Gloss

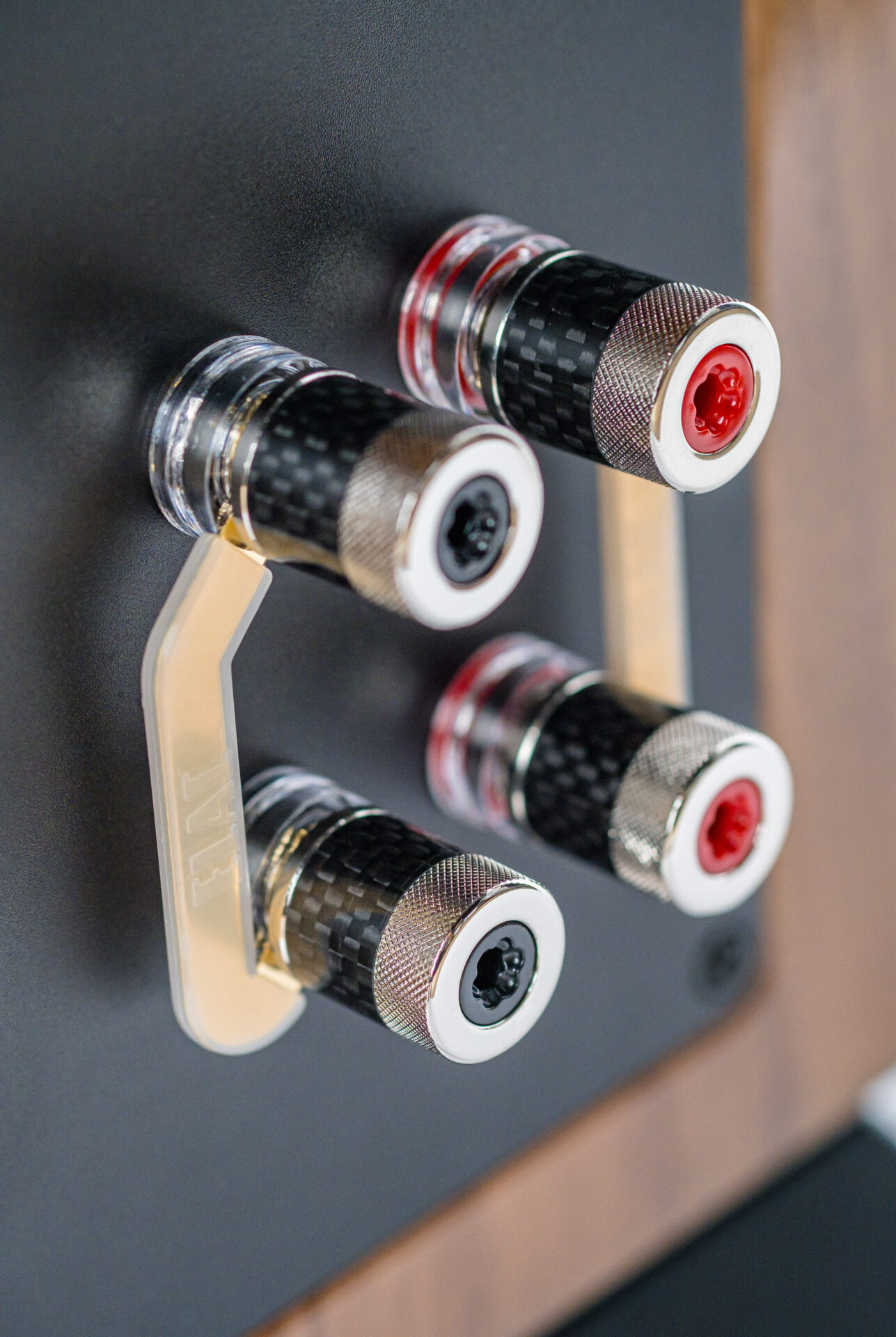

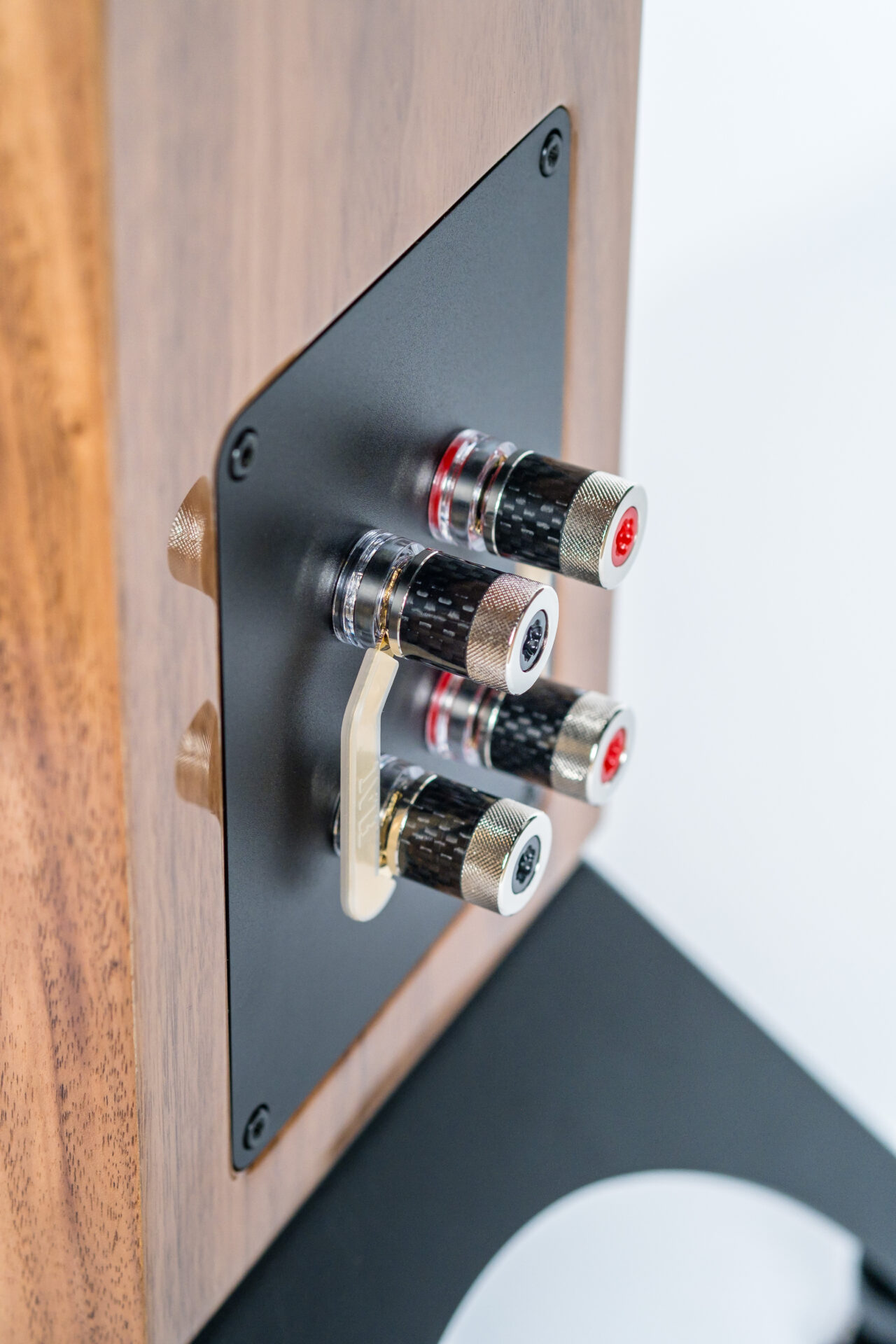

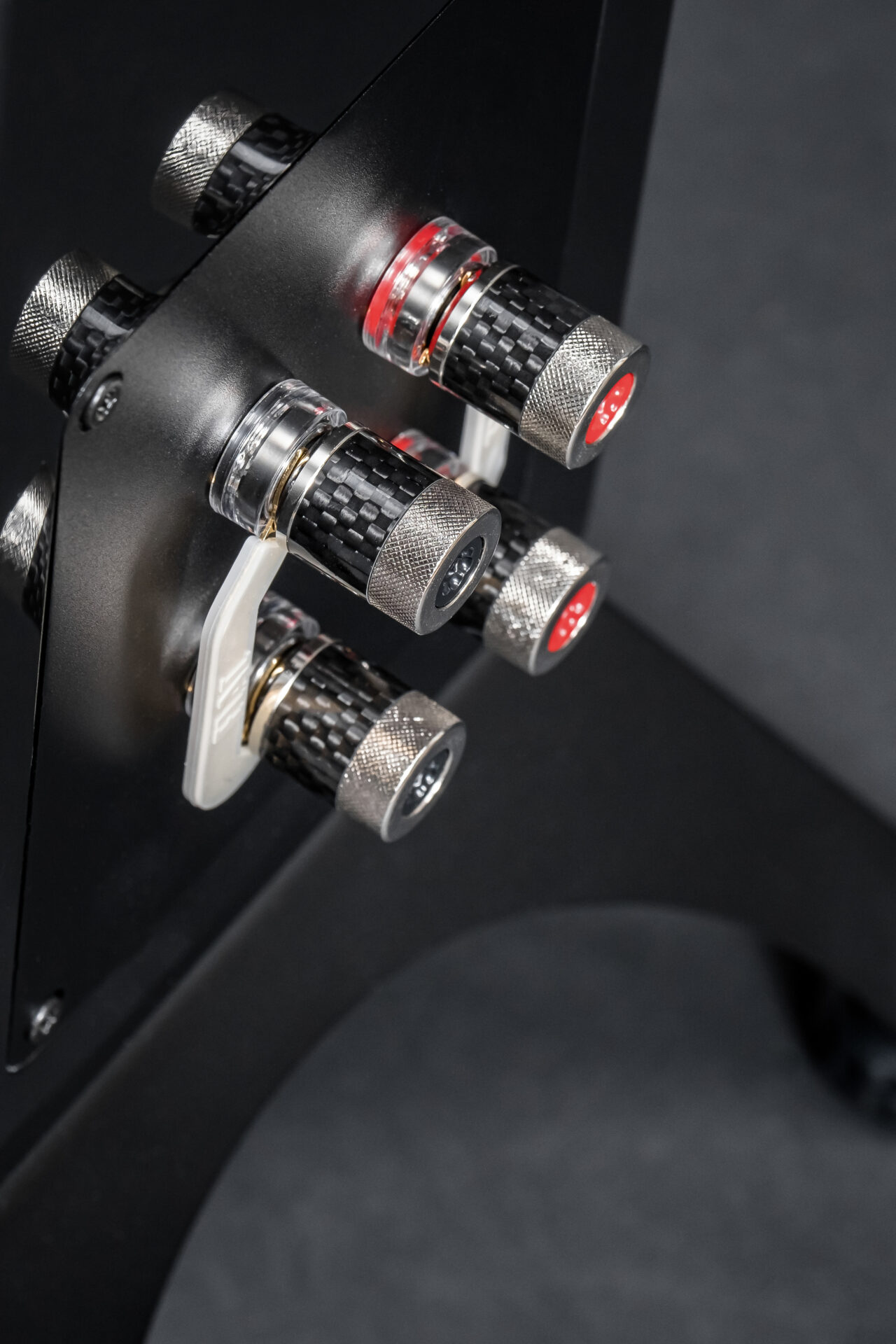

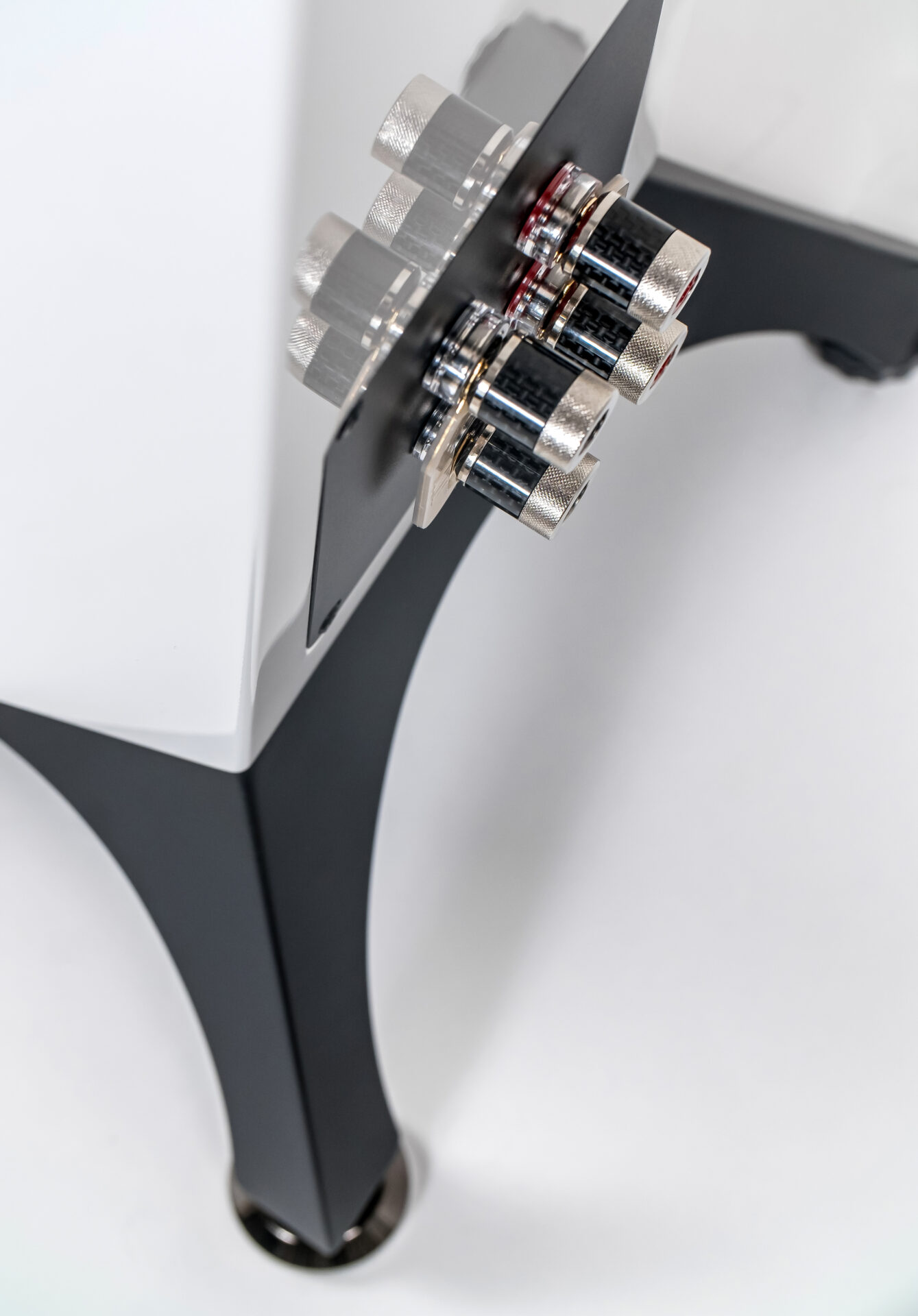

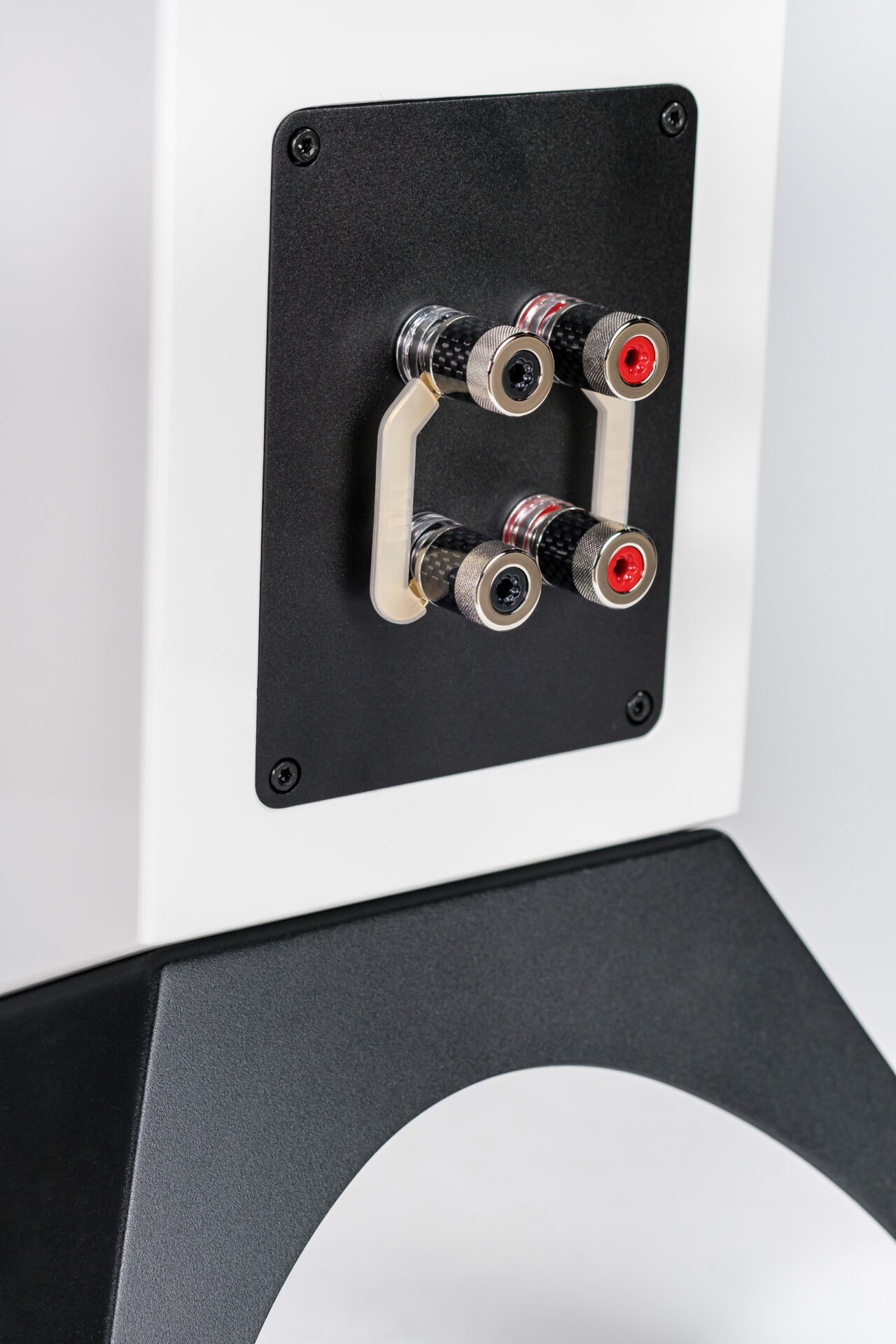

Accessories included in delivery Bi-Wiring-Set, Gloves, Spike-Set, Washer
Categories: , , , , , Tags: , , Brand:

Description

High-End On High-Heels

The dream that inspires. The idea that turns it into reality. The passion for detail that creates something truly special: the ELAC Concentro S 509.2 is a piece of master craftsmanship, conceived to celebrate music with all senses.

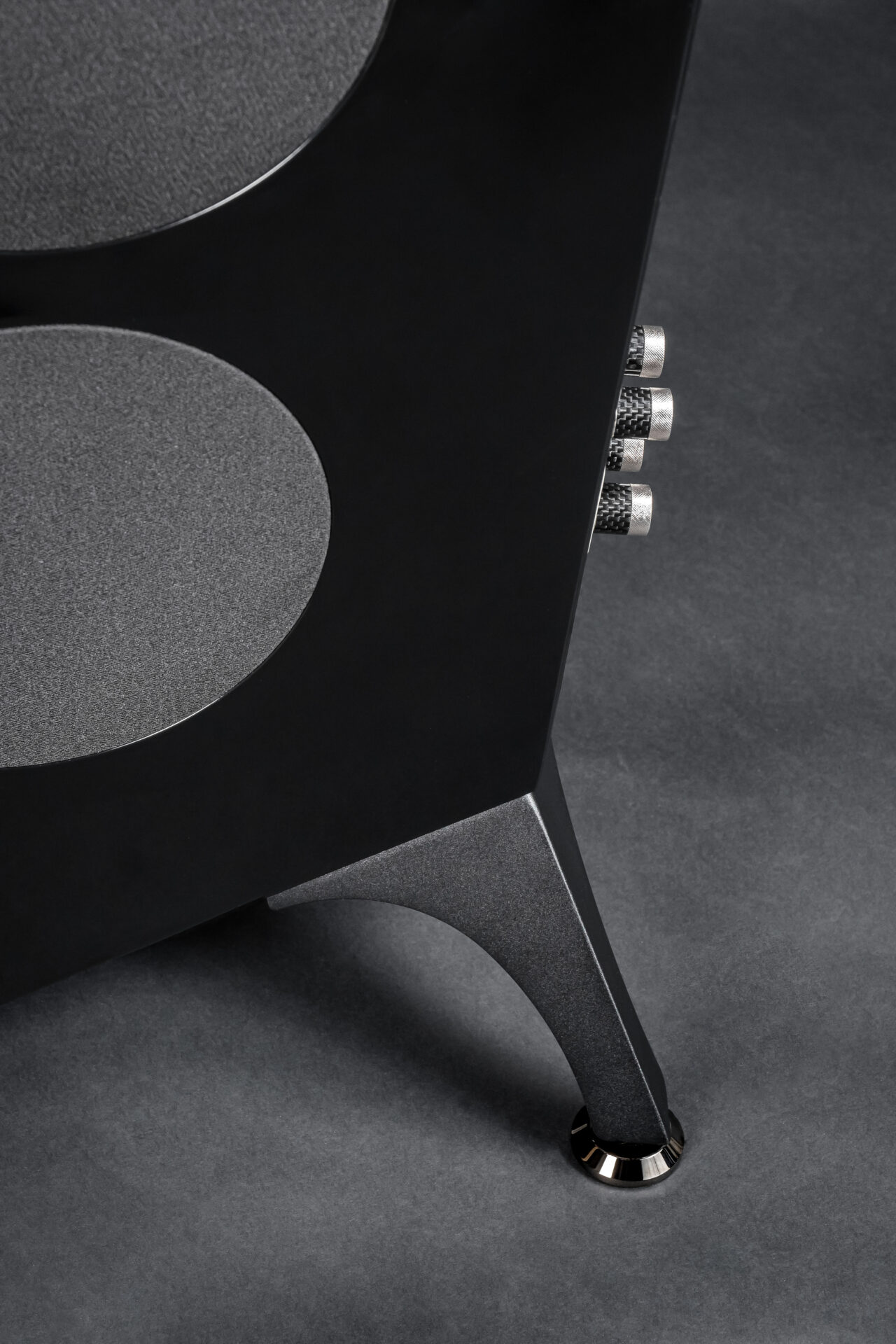

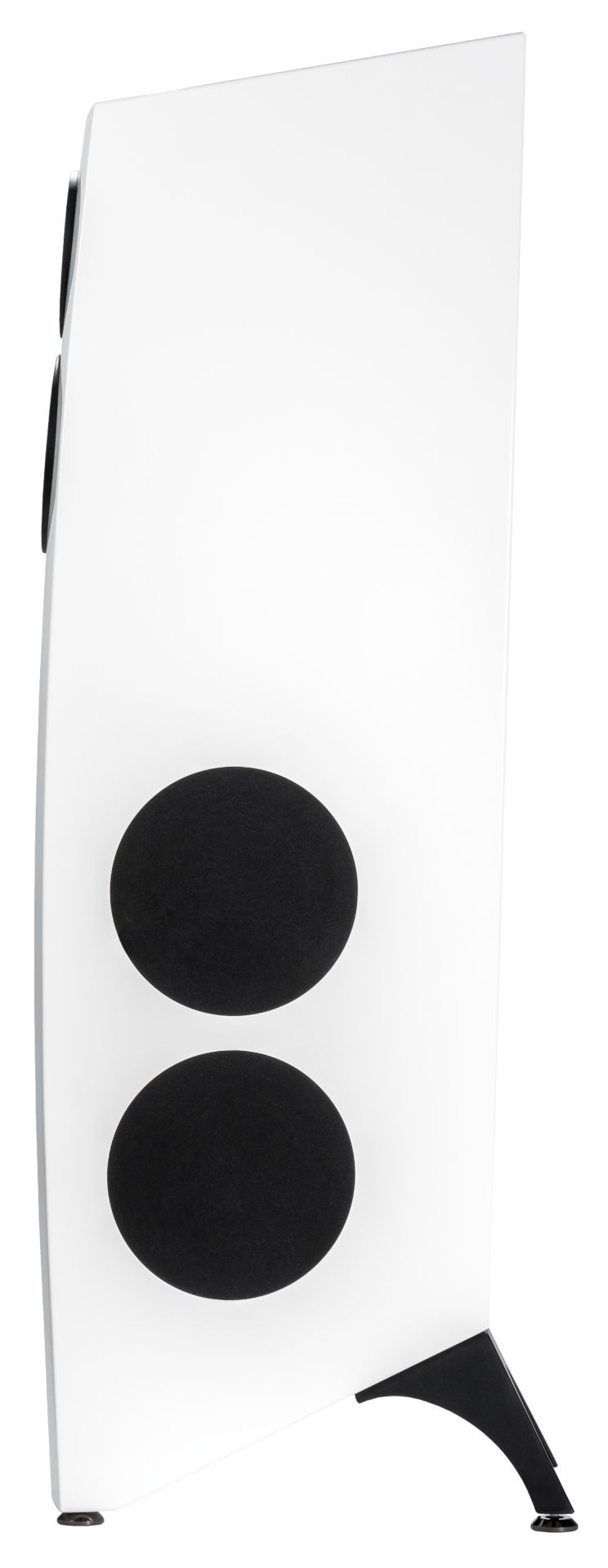

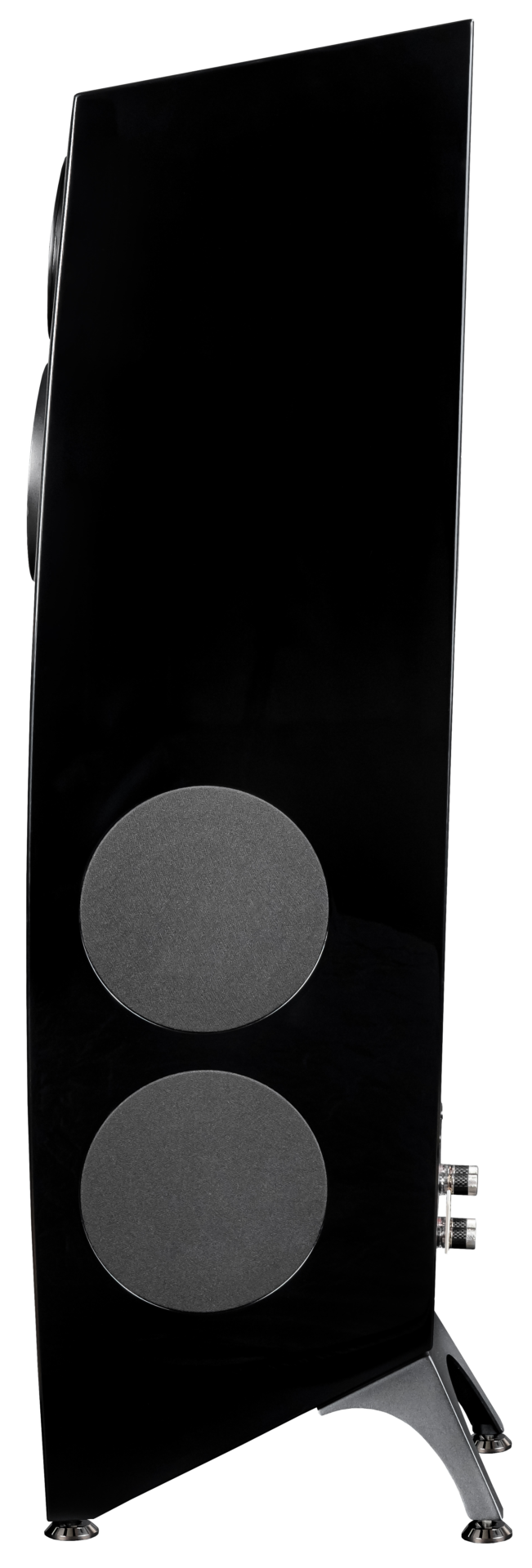

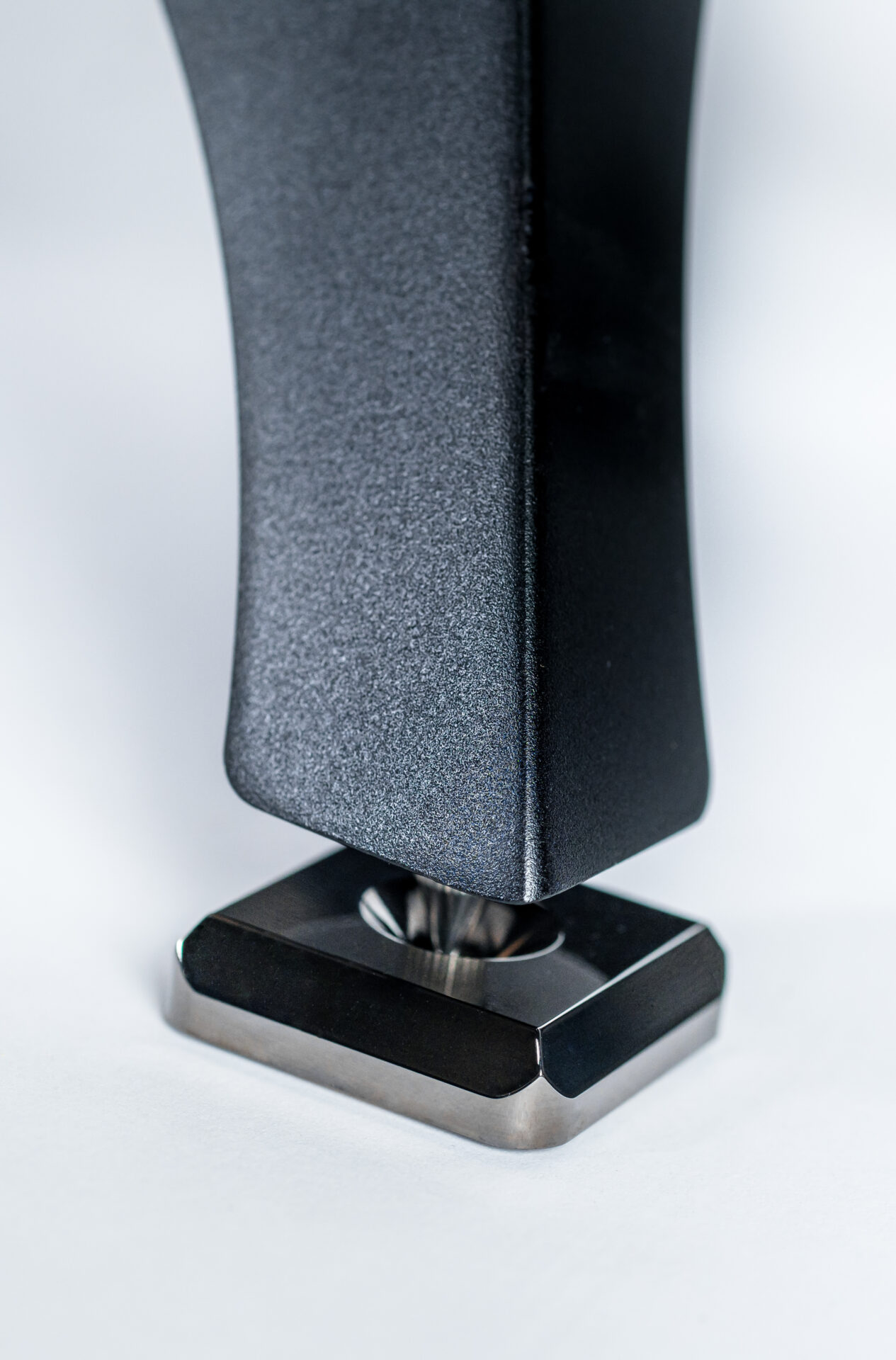

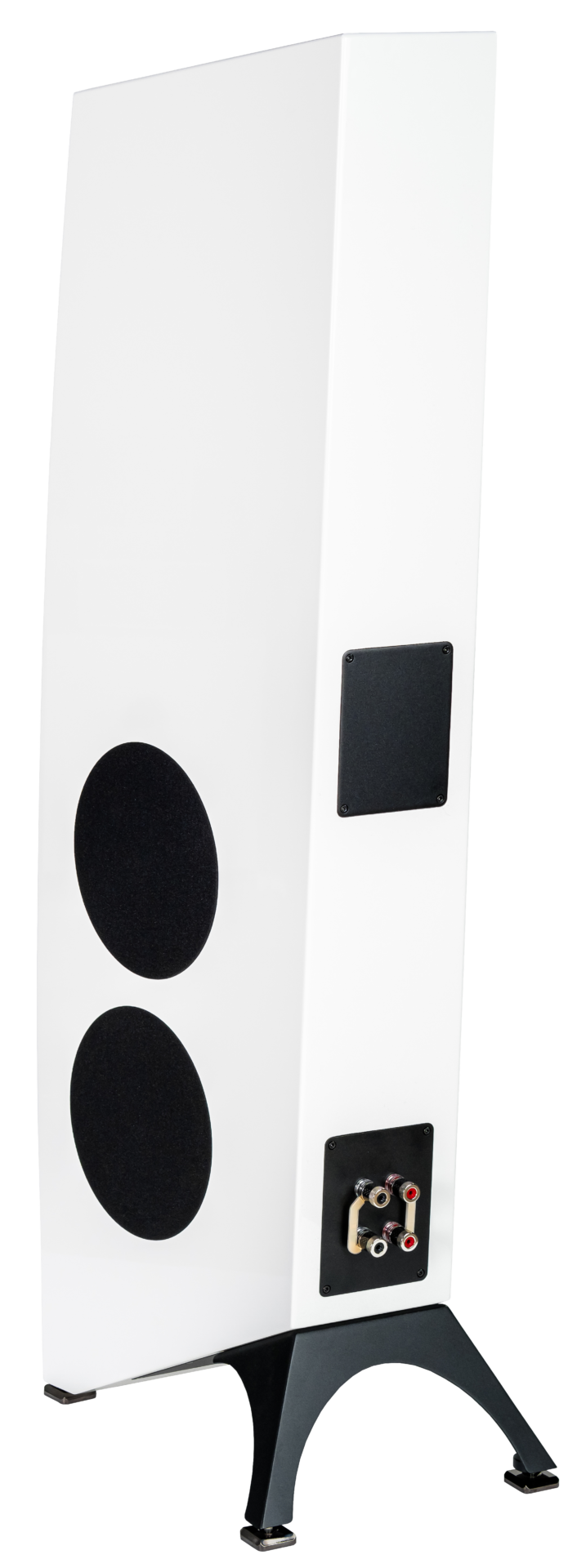

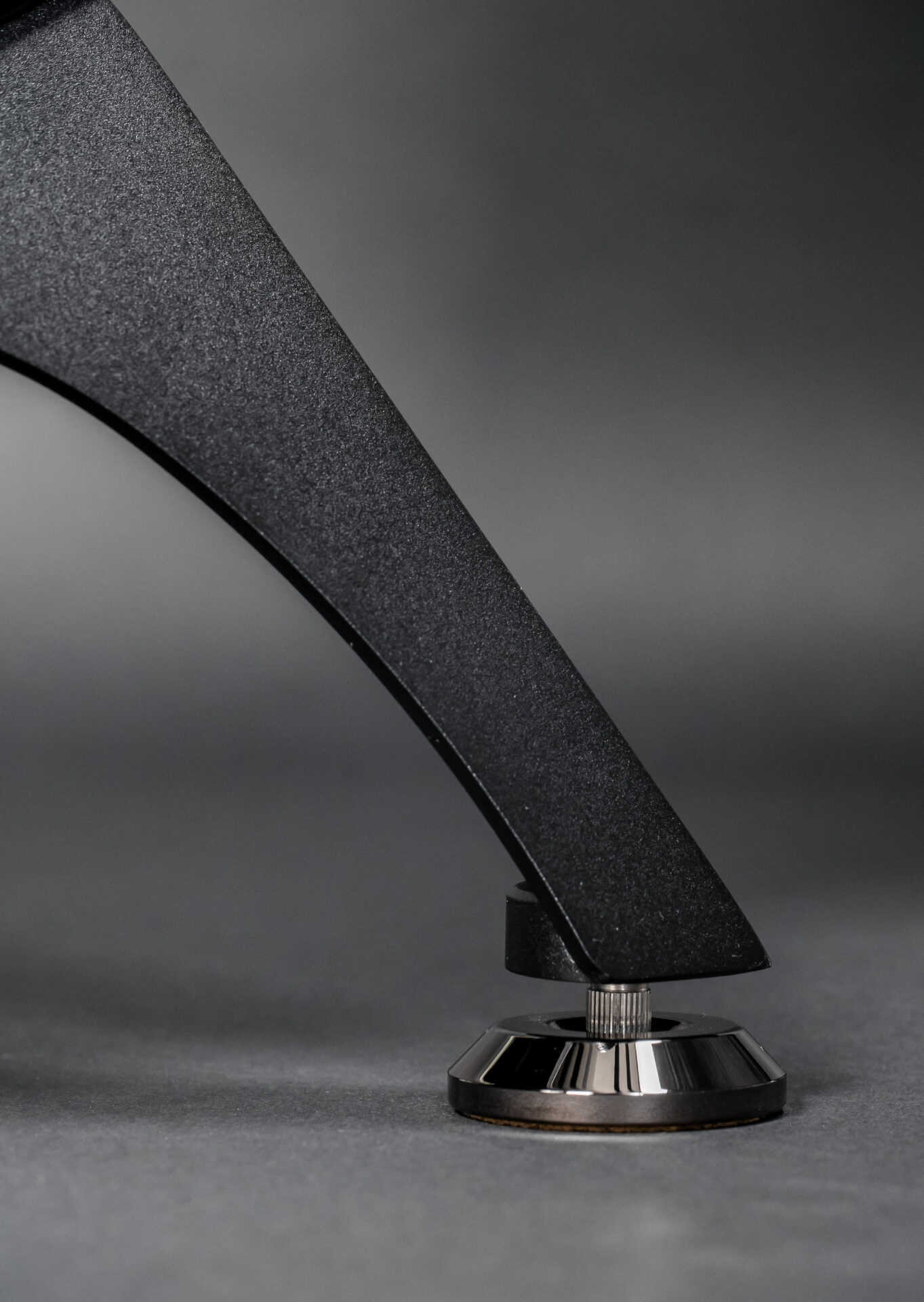

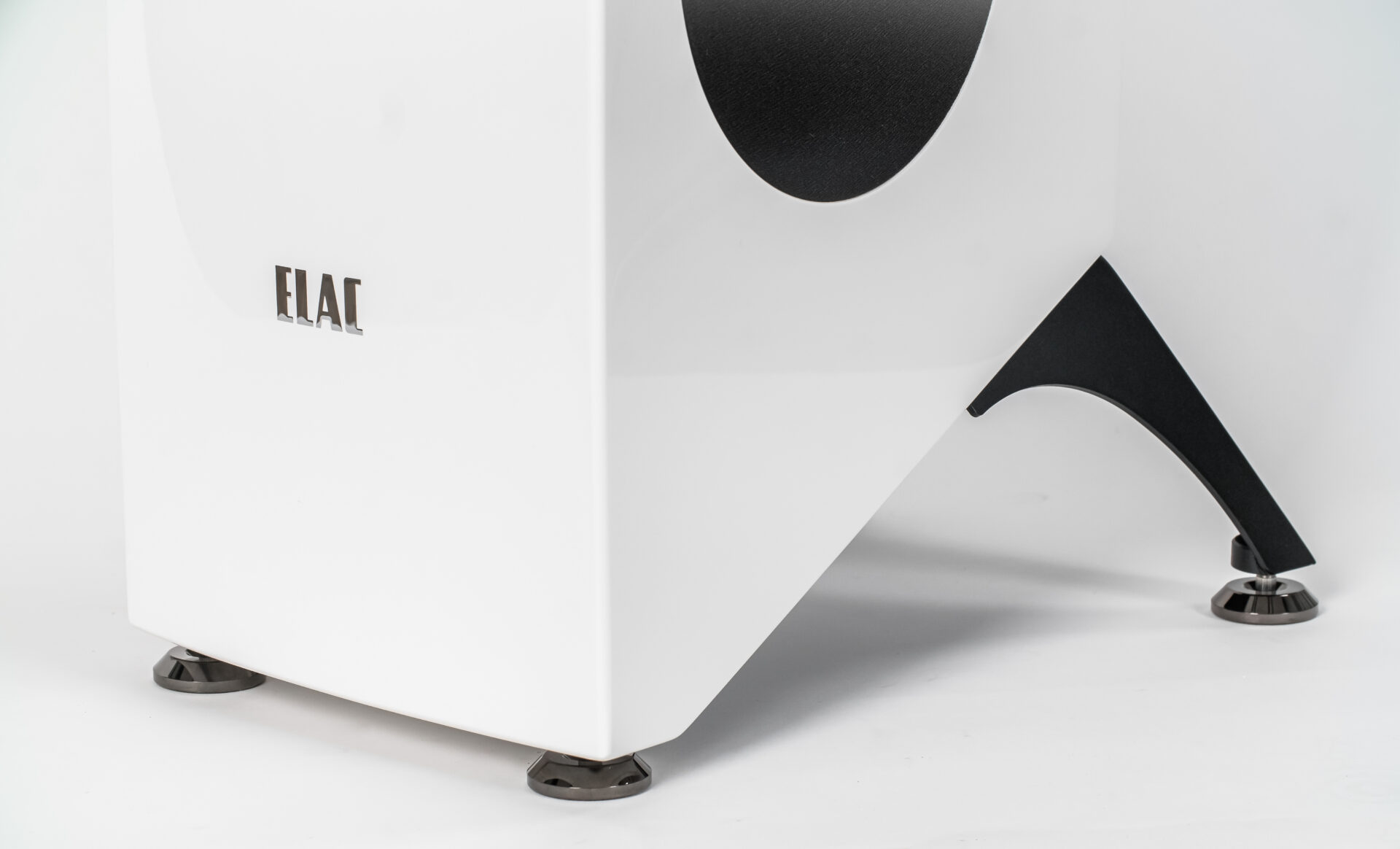

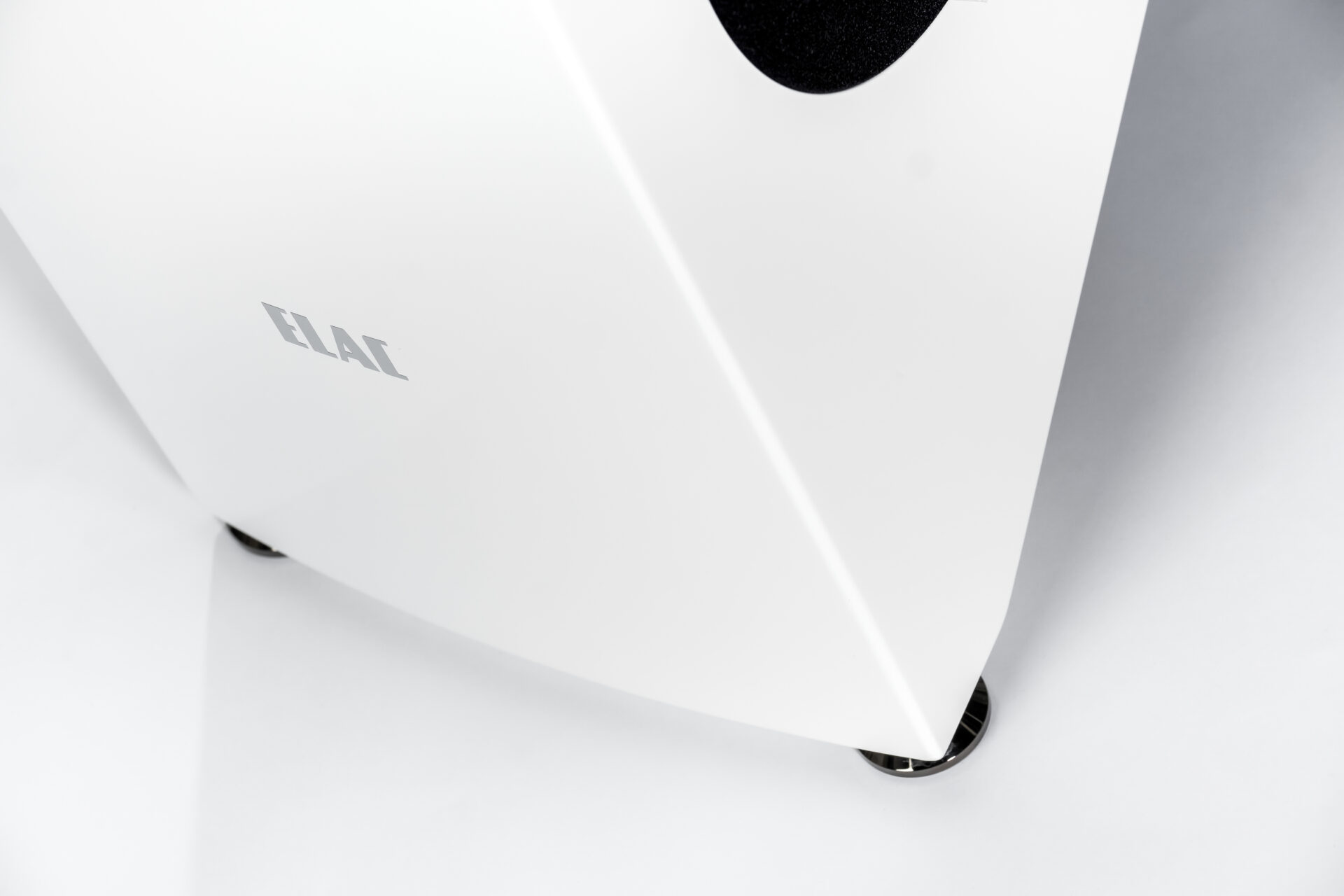

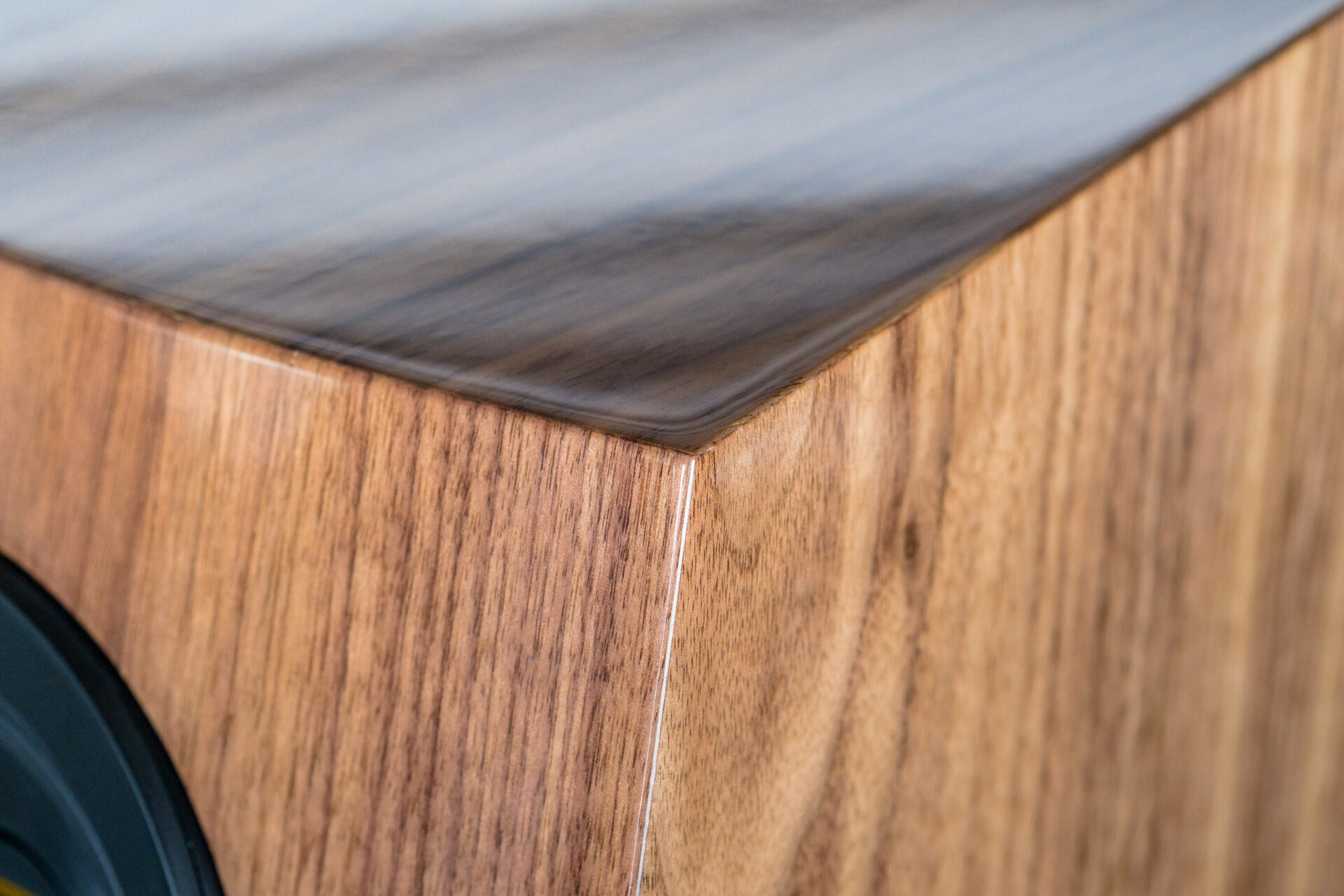

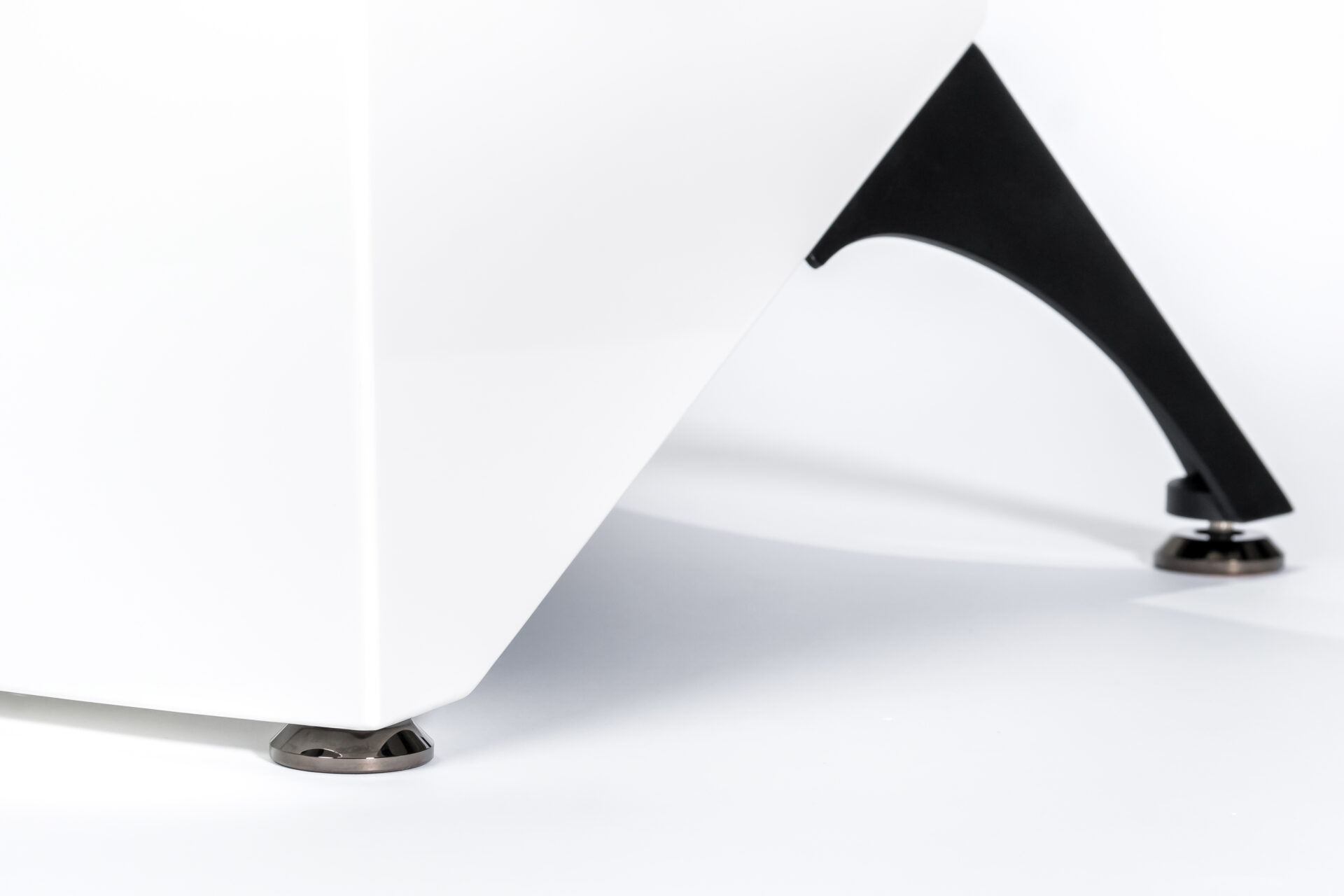

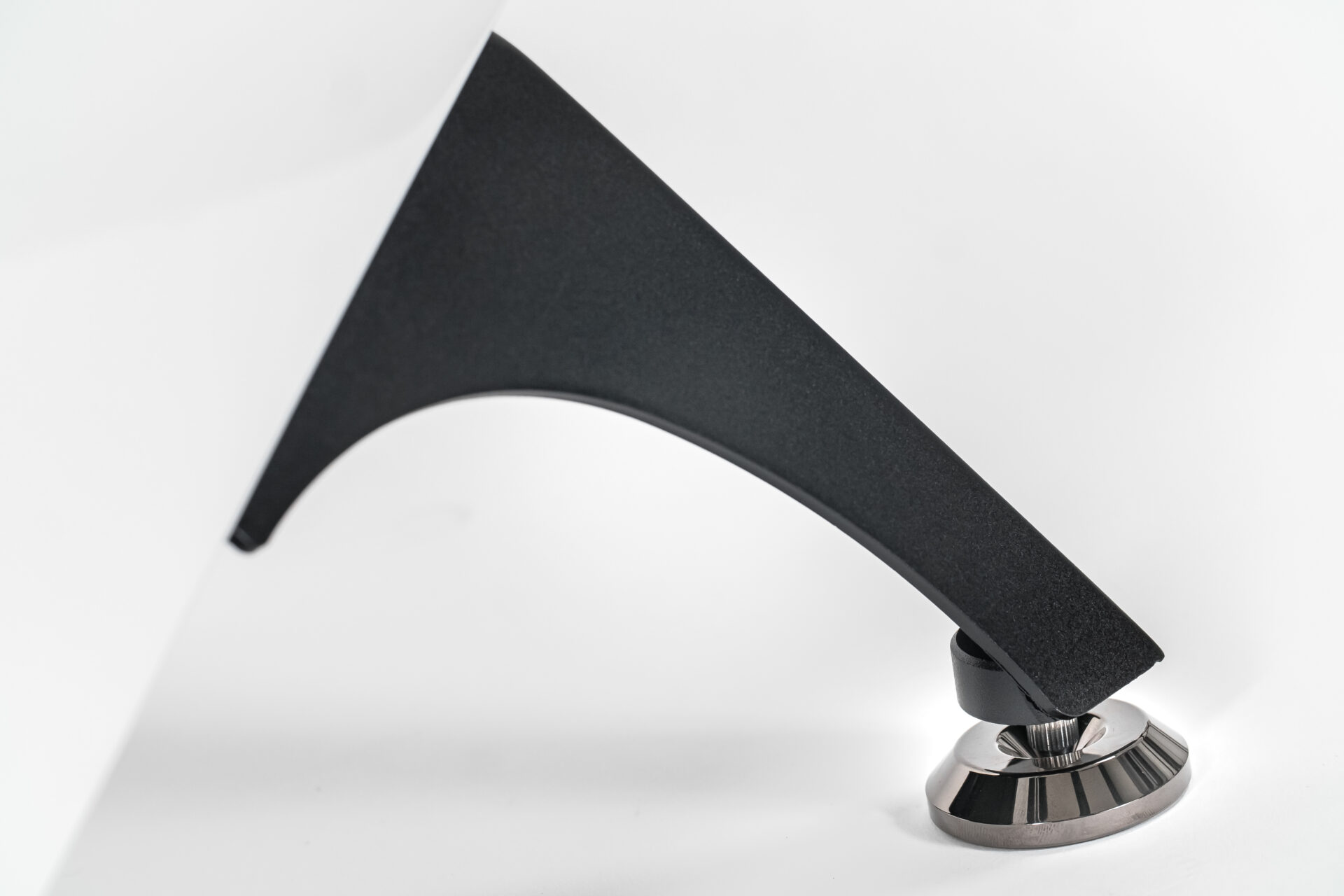

The ELAC Concentro S 509.2: a loudspeaker with characterful design and an impressive feature set. The wraparound baffle forms the basis for magnificent acoustic performances. Combined with the gently angled cabinet, the trapezoid basic shape and an expressive bottom assembly, complete with ‘high-heel’ effect, the result is a powerful yet natural and elegant appearance.

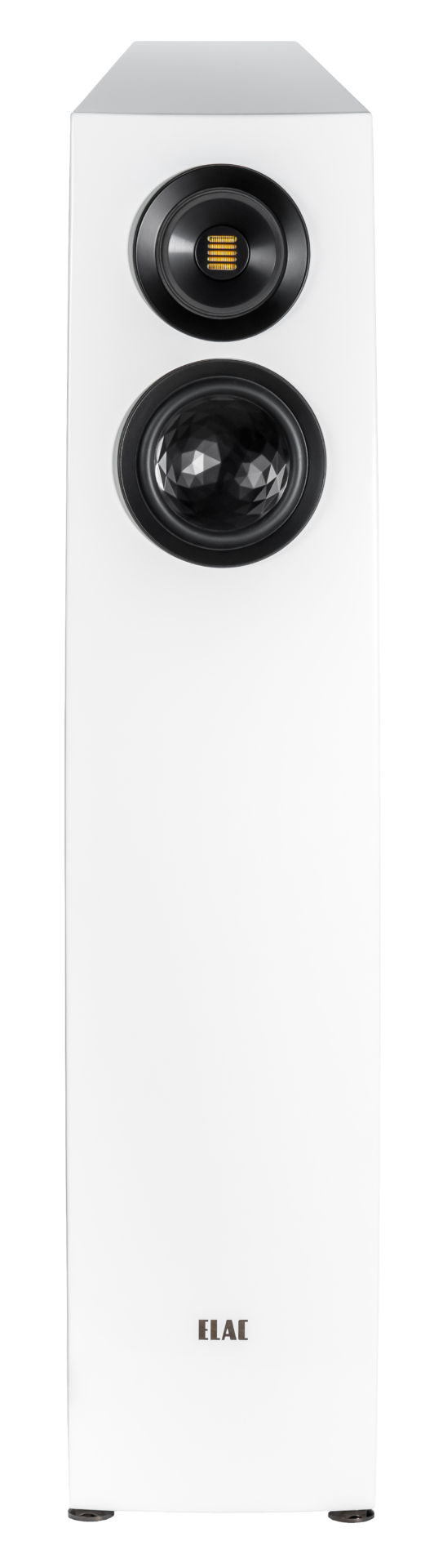

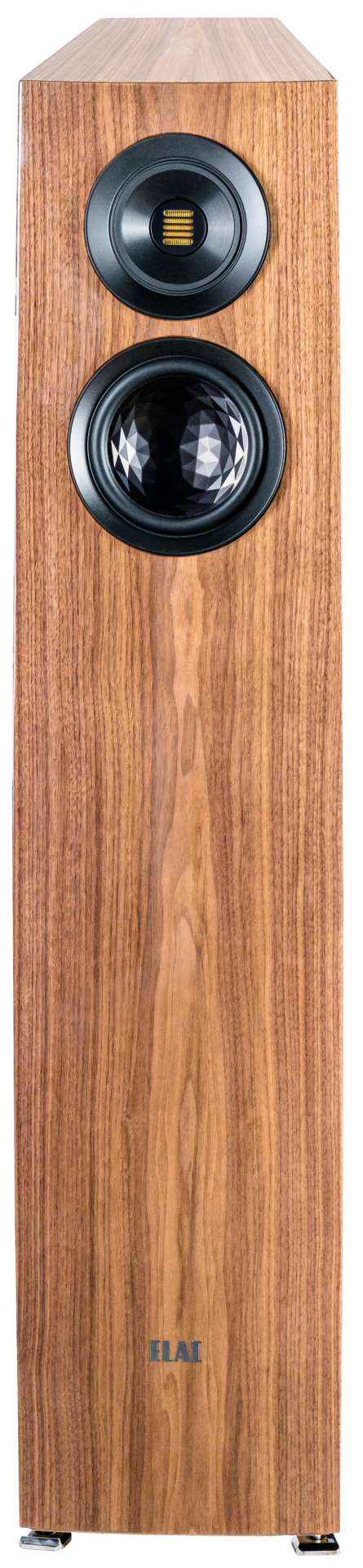

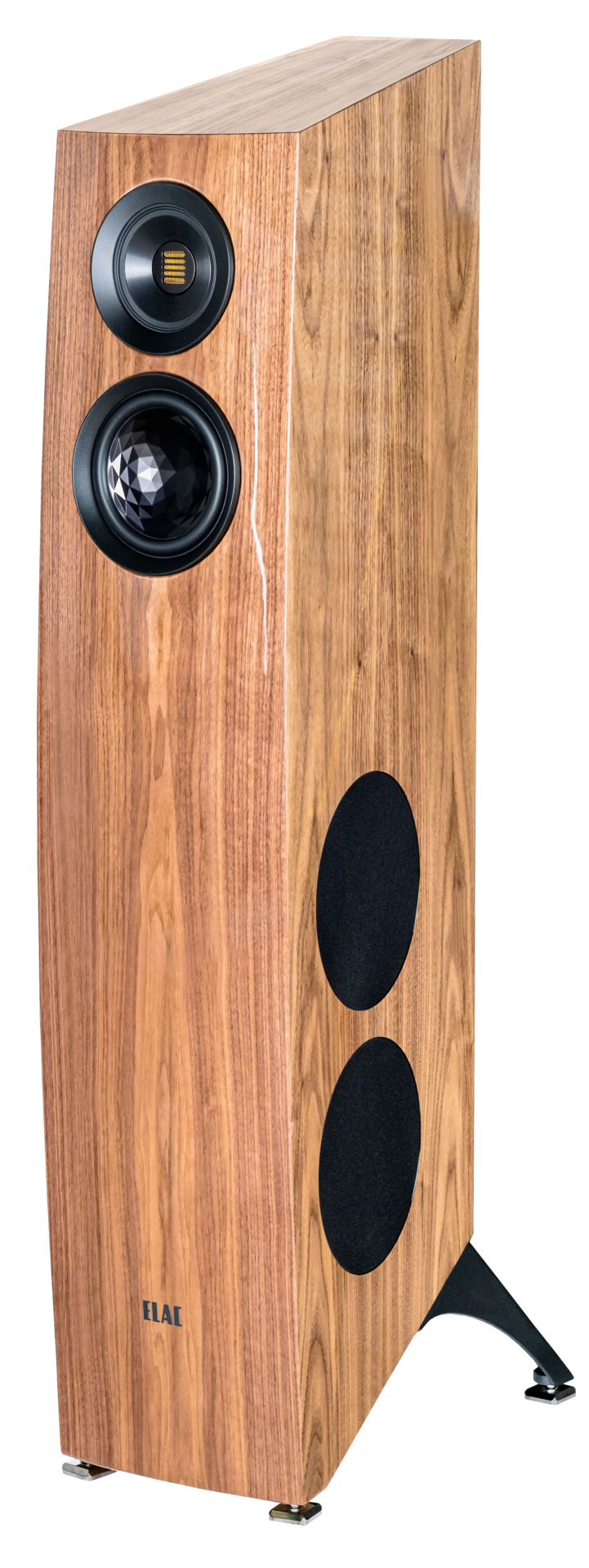

Innovative by tradition: the acoustic centerpiece of the Concentro S 509.2 is the stepX-JET – a concentric driver built around the new JET 6 tweeter and a midrange driver with an aluminum membrane. Its highlights are the exchangeable DCRs (Directivity Control Rings), which optimize the loudspeaker’s sound in the room by altering its directional characteristics in the mid-range frequencies.

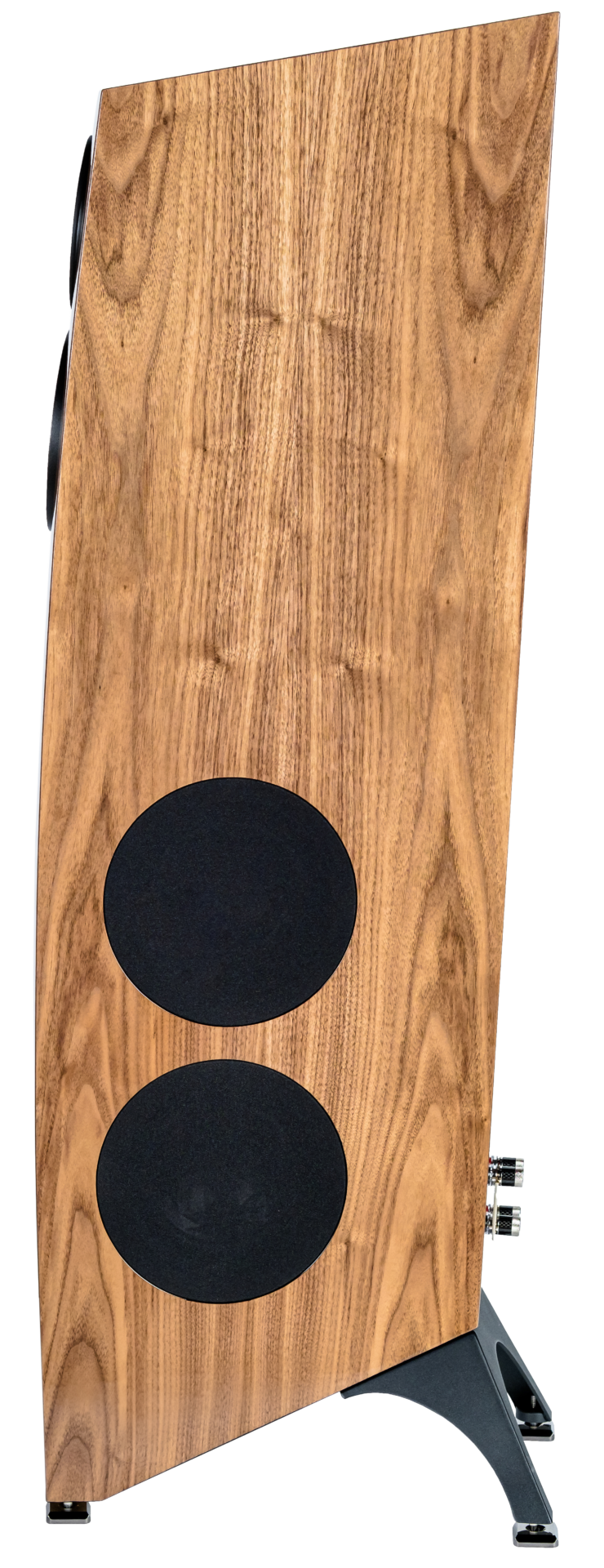

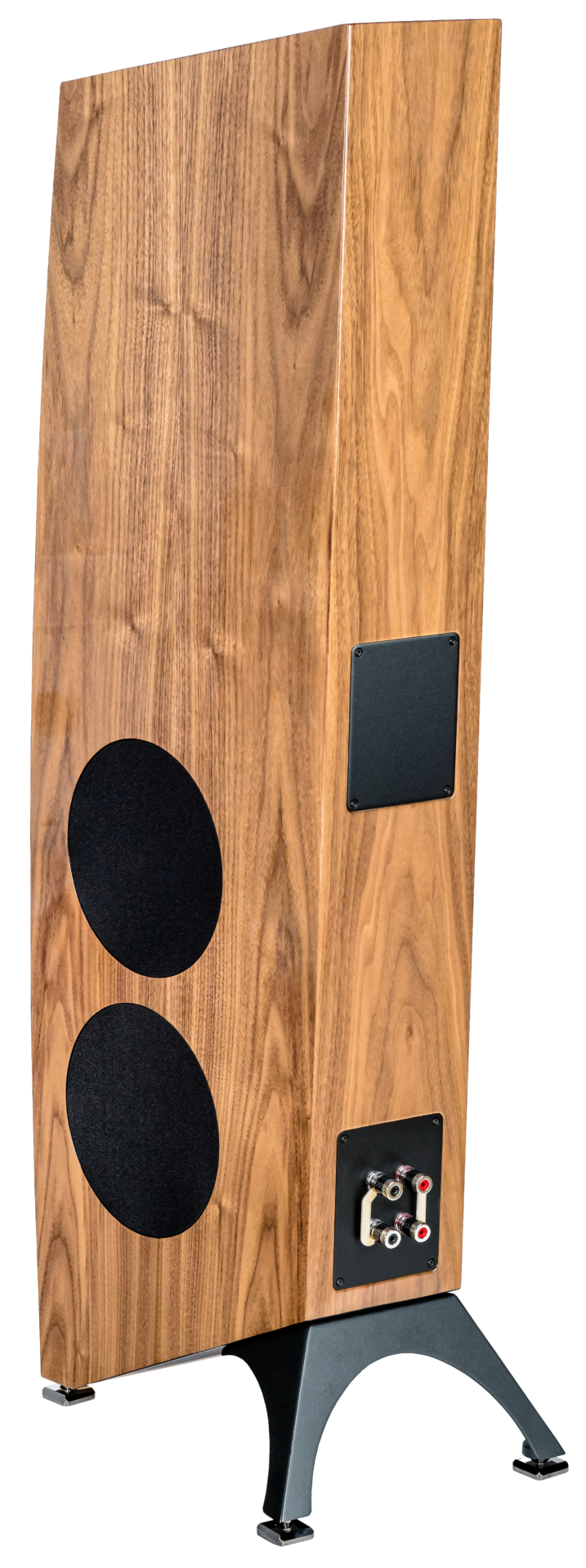

Reassuring to know that everything has been thought of: from the four powerful woofers in an ICD configuration for defined bass reproduction devoid of unwanted mechanical vibrations to the high-quality design of the frequency crossovers and the luxurious cabinet finishes… the Concentro S 509.2 makes no compromises in technical terms but reveals a character of unbridled enthusiasm and a tangible love for music.

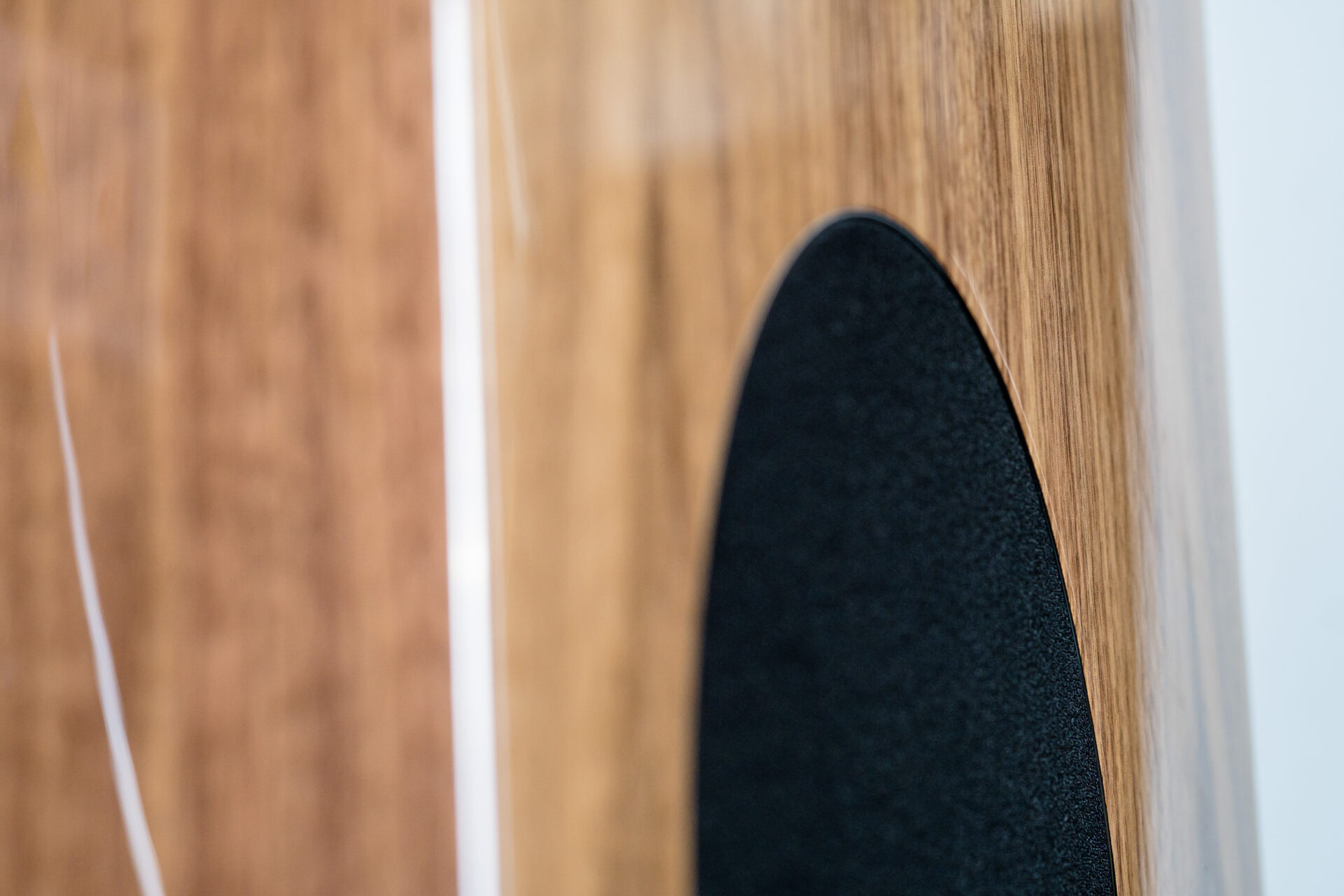

Walnut High Gloss : € 17 000 MSRP For a Pair

PRICES ARE SUBJECT TO CHANGE WITH IMPORTS
