JBL Synthesis S2S-EX Passive Subwoofer — Review

Overview

The S2S-EX is a purpose-built, high-output passive subwoofer from JBL’s custom-install Synthesis line, designed for home theaters and mixing/production spaces that need serious low-frequency extension without a receiver-friendly built-in amp. It’s a direct-fit replacement for the earlier S2S, and it’s built around the same core philosophy as JBL’s professional monitoring gear: an emphasis on output, control, and low distortion over convenience features.

A quick note on sourcing for this one: unlike the more mainstream two-channel amps I’ve reviewed, the S2S-EX doesn’t have much dedicated magazine-review coverage. This write-up leans on JBL’s own technical documentation plus long-running AVS Forum discussions from owners and installers of the S2S-EX and its Synthesis siblings, so treat the sound-quality impressions as informed owner consensus rather than a single controlled review.

Build & Design

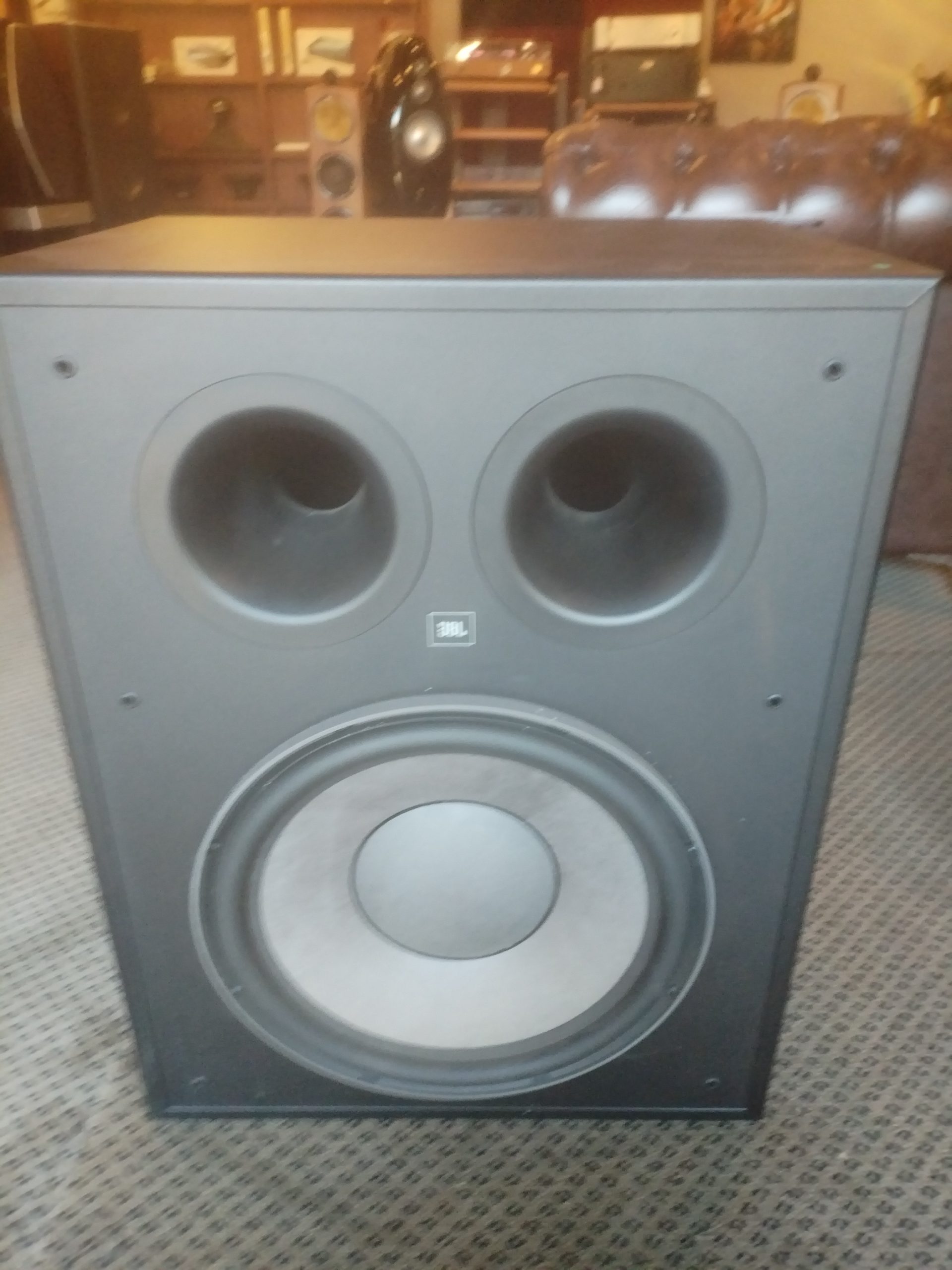

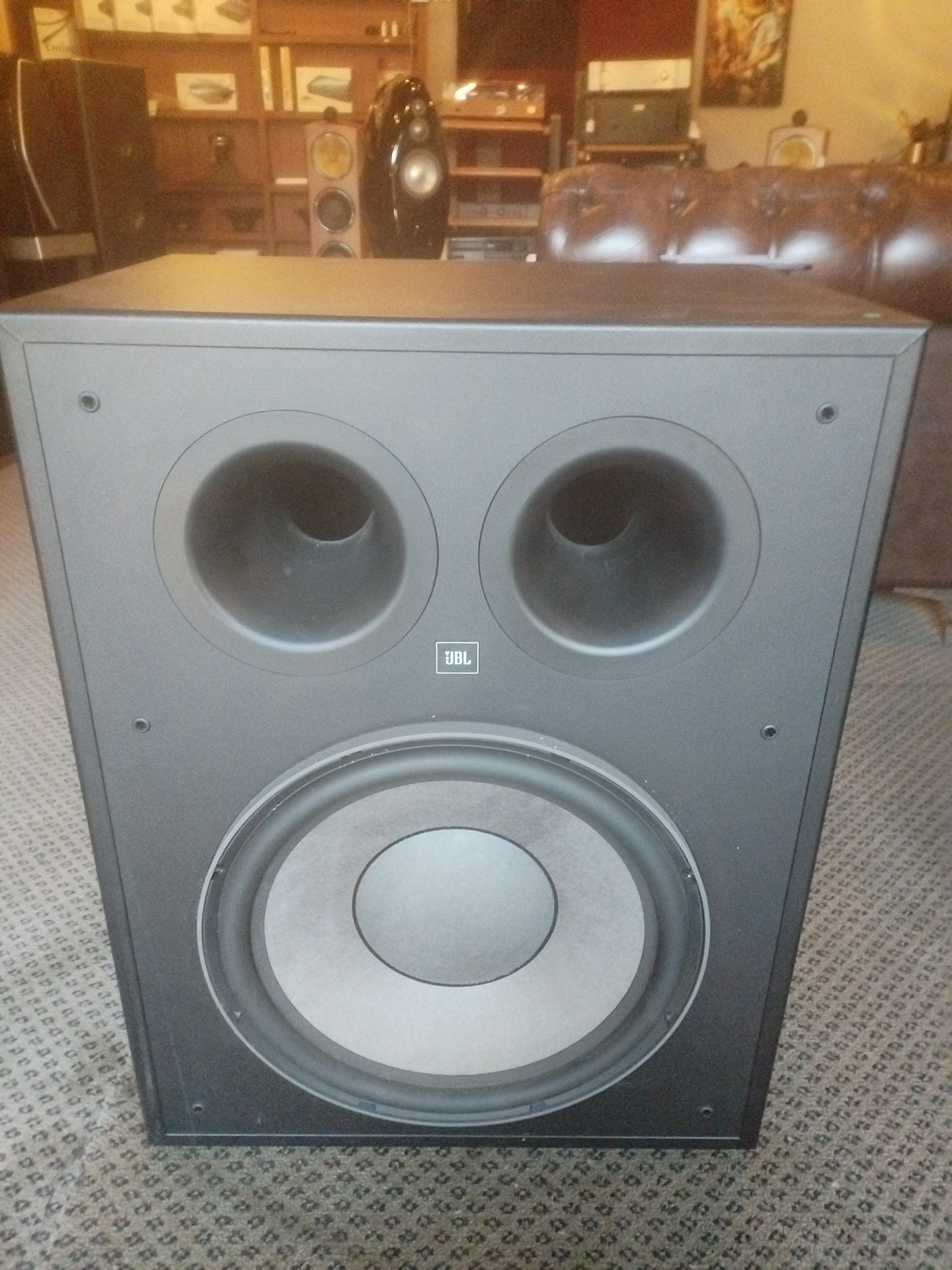

At its core is JBL’s W1500H 15-inch cast-frame woofer, using a Kevlar-Kapok cone chosen for rigidity and low coloration. The cabinet uses interlocking internal horizontal and vertical bracing for a genuinely inert, non-resonant enclosure — the kind of “industrial grade” build JBL’s Synthesis and pro-audio lines are known for. Dual SlipStream ports, double-flared to reduce turbulence and extend low-frequency output, flank the driver on the front baffle. The cabinet can be oriented vertically or horizontally, which gives installers real flexibility for behind-screen, in-room, or built-in placement.

Power & Performance

Rated for up to 3,200 watts peak, the S2S-EX is a passive design — it needs a separate power amplifier, with JBL and third-party sellers suggesting somewhere in the neighborhood of 1,200 watts RMS to drive it properly. That’s a meaningful commitment beyond the sub itself, but owners consistently report that once properly powered, it delivers deep, articulate, well-controlled bass with no audible strain or distortion, even at reference playback levels.

Where opinions get more nuanced is extension. Multiple owners and integrators note that, like several subs in the Synthesis lineup, the S2S-EX’s output starts rolling off meaningfully around 20Hz, meaning true sub-20Hz cinema effects rely partly on room gain rather than raw driver output. Above that point, though, the consensus is that it’s articulate and impactful, and one long-time Synthesis owner specifically praised the line’s subs above 20Hz as tight and distortion-free. It’s a sub built more for punch, speed, and integration with JBL’s Synthesis speaker lines than for chasing the deepest possible sub-bass numbers.

Features

As a professional/custom-install product, the S2S-EX doesn’t come with onboard DSP, room correction, or a built-in amp — those are expected to come from the separate amplifier and processor in a full Synthesis system. What it does offer is flexible mounting orientation, a compact footprint relative to its output, and design continuity that lets it slot into an existing Synthesis or older S2S-based system without reconfiguring the room.

Value

Originally priced around $2,500, and periodically available on the used/demo market for well under that, the S2S-EX sits in an interesting spot: less costly than JBL’s flagship Synthesis subs (like the SSW-1 or 5628), but sharing the same core driver technology and cabinet philosophy. For anyone already invested in amplification and a processor capable of driving a passive sub properly, it represents a relatively accessible way into genuine Synthesis-level bass performance.

Verdict

Pros: Tight, articulate, high-output bass with excellent control; rigid, well-braced industrial cabinet; flexible orientation for varied installations; shares driver DNA with JBL’s respected higher-end Synthesis and pro subs; relatively affordable entry into the Synthesis ecosystem.

Cons: Passive design requires a separate high-power amplifier — a real added cost and complexity; extension below ~20Hz is limited compared to some larger, more expensive subs; no onboard room correction or DSP; less independent editorial review coverage to lean on compared to more mainstream consumer subwoofers.

Bottom line: The S2S-EX is a serious, no-nonsense passive subwoofer for home theater and studio use — it trades convenience features for raw build quality and control, and it rewards being paired with a proper amplifier. For anyone building a JBL Synthesis system, or wanting genuine pro-derived bass performance without stepping up to JBL’s largest cinema subs, it’s a well-regarded option.
